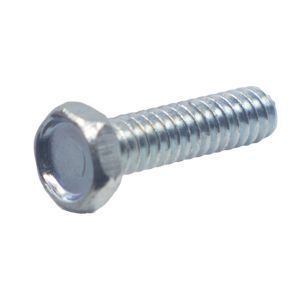

#10-24 X 1 HEX TRIM HEAD MACHINE SCREW, PLATED

$0.24789/EA

Quantity	Price
Quantity	Price
1	$0.24789/ EA
1210	$0.2314/ EA
4820	$0.20872/ EA
21690	$0.13045/ EA

In Stock

Product Specification
Dimensional Specifications

Product Specification

Diameter	#10
Drive Type	Hex
Drive Size	5/16
Length	1
Thread Length	1
Point Type	Blunt
Grades	Carbon Steel
Width Across Flats	5/16
Material	Steel
Finish	Plated
Origin	Unrestricted Origin
Weight	0.0083,

Dimensional Specifications

Dimensional SpecificationsType 2A Threads for Machine Screws

Type 2A Threads for Machine Screws dimensions

ASME B1.1 (2008)
Nominal Size	Threads per Inch	Allowance	Major Diameter		Pitch Diameter			Stress Area in²	Tensile Strength, ^a lb., min. (STEEL screws only)
			Major Diameter		Pitch Diameter
			Max	Min	Max	Min	Tolerance
#0	80	0.0005	0.0595	0.0563	0.0514	0.0496	0.001762	0.00180	-
#1	64	0.0006	0.0724	0.0686	0.0623	0.0603	0.001970	0.00263	-
#1	72	0.0006	0.0724	0.0689	0.0634	0.0615	0.001899	0.00278	-
#2	56	0.0006	0.0854	0.0813	0.0738	0.0717	0.002127	0.00370	-
#2	64	0.0006	0.0854	0.0816	0.0753	0.0733	0.002040	0.00394	-
#3	48	0.0007	0.0983	0.0938	0.0848	0.0825	0.002302	0.00487	-
#3	56	0.0007	0.0983	0.0942	0.0867	0.0845	0.002191	0.00523	-
#4	40	0.0008	0.1112	0.1061	0.0950	0.0925	0.002507	0.00604	360
#4	48	0.0007	0.1113	0.1068	0.0978	0.0954	0.002361	0.00661	396
#5	40	0.0008	0.1242	0.1191	0.1080	0.1054	0.002562	0.00796	470
#5	44	0.0007	0.1243	0.1195	0.1095	0.1070	0.002484	0.00830	498
#6	32	0.0008	0.1372	0.1312	0.1169	0.1141	0.002820	0.00909	550
#6	40	0.0008	0.1372	0.1321	0.1210	0.1184	0.002614	0.01015	609
#8	32	0.0009	0.1631	0.1571	0.1428	0.1399	0.002916	0.01400	850
#8	36	0.0008	0.1632	0.1577	0.1452	0.1424	0.002804	0.01474	884
#10	24	0.0010	0.1890	0.1818	0.1619	0.1586	0.003319	0.01750	1050
#10	32	0.0009	0.1891	0.1831	0.1688	0.1658	0.003004	0.02000	1200
#12	24	0.0010	0.2150	0.2078	0.1879	0.1845	0.003400	0.02420	1450
#12	28	0.0010	0.2150	0.2085	0.1918	0.1886	0.003224	0.02580	1548
1/4	20	0.0011	0.2489	0.2408	0.2164	0.2127	0.003731	0.03180	1900
1/4	28	0.0010	0.2490	0.2425	0.2258	0.2225	0.003322	0.03640	2200
5/16	18	0.0012	0.3113	0.3026	0.2752	0.2712	0.004041	0.05240	3150
5/16	24	0.0011	0.3114	0.3042	0.2843	0.2806	0.003660	0.05800	3480
3/8	16	0.0013	0.3737	0.3643	0.3331	0.3287	0.004363	0.07750	4650
3/8	24	0.0011	0.3739	0.3667	0.3468	0.3430	0.003804	0.08780	5268
1/2	13	0.0015	0.4985	0.4876	0.4485	0.4435	0.004965	0.14190	8500
1/2	20	0.0013	0.4987	0.4906	0.4662	0.4619	0.004288	0.15990	9594

Tolerance on Length	Nominal Screw Size	Nominal Screw Length
		Up to 1/2 in., incl.	Over 1/2 to 1 in., incl.	Over 1 to 2 in., incl.	Over 2 in.
	0 thru 12	-0.02	-0.03	-0.06	-0.09
L	1/4 thru 3/4	-0.03	-0.03	-0.06	-0.09

^a Tensile strength values are based on 60,000 psi and apply to carbon steel screws and SEMS only. Hex and Hex Washer head machine screws of sufficient length may be wedge tensile tested. Other head styles may be axial tensile tested.
All dimensions are in inches.

Dimensional SpecificationsHex Trim Head for Machine Screws

Hex Trim Head for Machine Screws dimensions

ASME B18.6.3-2013
Nominal Size	A		W	H
	Width Across Flats		Width Across Corners	Height of Head
	Max	Min	Min	Max	Min
#2	0.125	0.120	0.134	0.050	0.040
#4	0.188	0.188	0.202	0.060	0.049
#5	0.188	0.181	0.202	0.070	0.058
#6	0.250	0.244	0.272	0.093	0.080
#8	0.250	0.244	0.272	0.110	0.096
#10	0.312	0.305	0.340	0.120	0.105
#12	0.312	0.305	0.340	0.155	0.139
1/4	0.375	0.367	0.409	0.190	0.172
5/16	0.500	0.489	0.545	0.230	0.208
3/8	0.562	0.551	0.614	0.295	0.270
1/2	0.750	0.735	0.820	0.400	0.367

All dimensions are in inches.
