Spiral Flute Screw Extractor
>

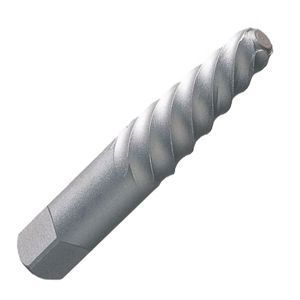

#5 SPIRAL FLUTE SCREW EXTRACTOR
Enlarge
#5 SPIRAL FLUTE SCREW EXTRACTOR
Item #:
EASYOUT 5
#5 SPIRAL FLUTE SCREW EXTRACTOR
$6.20734/EA
Quantity
Price
Quantity
Price
1
$6.20734/ EA
6
$5.8553/ EA
24
$5.16216/ EA
60
$3.63602/ EA
Qty
In Stock
Add To Cart
Technical Data
Product Specification
Dimensional Specifications
Product Specification
Size
#5
For Bolt Size
9/16 - 3/4
Shank Type
Square
Material
Steel
Origin
Unrestricted Origin
Weight
0.113,
Dimensional Specifications
Dimensional Specifications
Spiral Flute Screw Extractor
Size
Screw Size
Pipe Size
Drill Size
1
3/16 - 1/4
-
5/64
2
1/4 - 5/16
-
7/64
3
5/16 - 7/16
-
5/32
4
7/16 - 9/16
1/8
1/4
5
9/16 - 3/4
1/4
19/64
6
3/4 - 1
3/8
13/32
7
1 - 1 3/8
1/2
17/32
8
1 3/8 - 1 3/4
3/4
13/16
9
1 3/4 - 2 1/8
1
1 1/16
10
2 1/8 - 2 1/2
1 1/4
1 15/16
11
2 1/2 - 3
1 1/2
1 9/16
12
3 - 3 1/2
2
1 15/16
All dimensions are in inches.
