Silicon Bronze Flat Washer
>

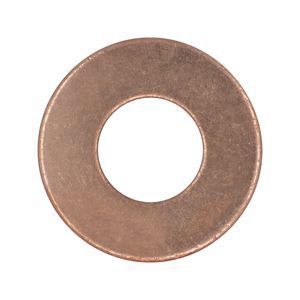

5/16 SILICON BRONZE FLAT WASHER
Enlarge
5/16 SILICON BRONZE FLAT WASHER
Item #:
WFSB031
5/16 SILICON BRONZE FLAT WASHER
$0.46856/EA
Quantity
Price
Quantity
Price
1
$0.46856/ EA
1880
$0.43919/ EA
7510
$0.39052/ EA
33790
$0.26023/ EA
Qty
In Stock
Add To Cart
Technical Data
Product Specification
Governing Standards
Dimensional Specifications
Substitute Products
Product Specification
Diameter
5/16
Grades
Silicon Bronze
Finish
None
Inside Diameter
0.3400
Outside Diameter
0.7500
Thickness
0.0620
Weight
0.005328,
Governing Standards
Governing Standards
Silicon Bronze Flat Washer
ASME B18.21.1
Covers the dimensional requirements, physical properties, and related test methods for helical spring-lock washers (#0 through 3 inches), tooth-lock washers (#2 through 1 ¼ inches), and plain washers (#0 through 3 inches).
Dimensional Specifications
Dimensional Specifications
Silicon Bronze Flat Washer
Per ASME B18.21.1-2009
Size
Nominal
A
B
C
Inside
Diameter
Outside
Diameter
Mean Section
Thickness
#2
0.0860
0.9900
0.1870
0.0200
#4
0.1120
0.1200
0.2810
0.0250
#6
0.1380
0.1470
0.3120
0.0250
#8
0.1640
0.1720
0.3750
0.0320
#10
0.1900
0.2000
0.4370
0.0360
#12
0.2160
0.2280
0.5000
0.0400
1/4
0.2500
0.2600
0.5620
0.0400
5/16
0.3125
0.3400
0.7500
0.0620
3/8
0.3750
0.3920
0.8750
0.0620
7/16
0.4375
0.5000
1.1250
0.0810
1/2
0.5000
0.5620
1.2500
0.0910
5/8
0.6250
0.6870
1.5000
0.1020
3/4
0.7500
0.8120
1.8750
0.1140
7/8
0.8750
0.9370
2.2500
0.1280
1
1.0000
1.0620
2.5000
0.1440
All dimensions are in inches.
