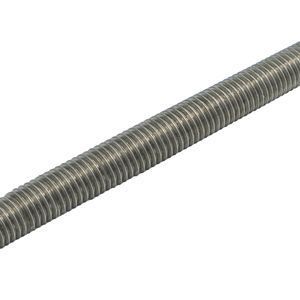

1/2-13 X 12 FT A193/A320 B8M STAINLESS STEEL ALL THREAD ROD DOMESTIC

Name: 1/2-13 X 12 FT A193/A320 B8M STAINLESS STEEL ALL THREAD ROD DOMESTIC
Price: 8.30197 USD
Availability: InStock

$8.30197/FT

Qty

5-7 Working Days

Mechanical PropertiesGrade B8M Stainless Steel

AISI 316 Stainless Steel, Carbide Solution Treated				Per ASTM A193/A193M-16 (1)
Grade	Material	Tensile Strength	Yield Strength, 0.2% offset	Elongation in 4D	Reduction of Area	Hardness
Grade	Material	Min ksi	Min ksi	Min %	Min %	Max
B8M	316 Stainless Steel	75	30	30	50	223 HBW or 96 HRB (2)

1. Only applies to B8M as specified in the "Grade" column below.
2. For sizes 3⁄4 in. in diameter and smaller, a maximum hardness of 241 HBW (100 HRB) is permitted.

AISI 316 Stainless Steel, Carbide Solution Treated				Per ASTM A320/A320M-15a (1)
Grade	Material	Tensile Strength	Yield Strength, 0.2% offset	Elongation in 2 in. or 50 mm	Reduction of Area	Hardness
Grade	Material	Min ksi	Min ksi	Min %	Min %	Max
B8M	316 Stainless Steel	75	30	30	50	223 HBW or 96 HRB (2)

1. Only applies to B8M as specified in the "Grade" column below.
2. For sizes 3⁄4 in. in diameter and smaller, a maximum hardness of 241 HBW (100 HRB) is permitted.

ASTM A193 (1)	Covers alloy and stainless steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
ASME B18.31.3	Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

ASTM A320 (1)	Covers alloy steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for low-temperature service.
ASME B18.31.3	Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.
