Home > Pipe Fittings and Flanges > Couplings > A105 Socket Weld Coupling > 1 1/2'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

Enlarge

Item #: PCP3MSWC1.5-I

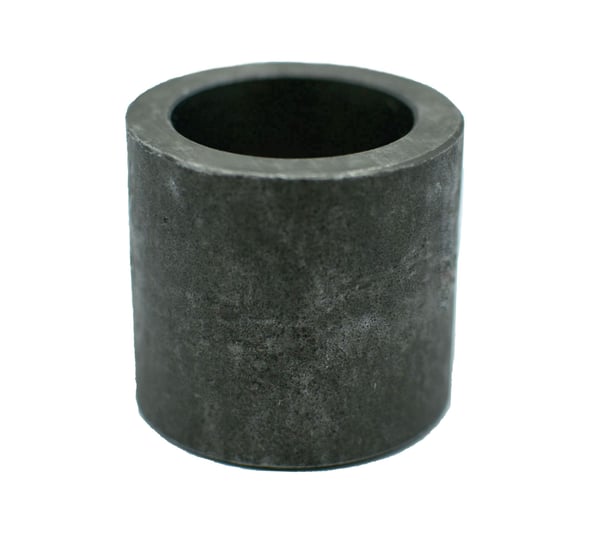

1 1/2'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$9/EA

Quantity	Price
Quantity	Price
1	$9/ EA

Qty

3-5 Working Days

Product Specification
Governing Standards
Chemical Properties
Mechanical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsA105 Socket Coupling

A105 Threaded Coupling

	Sizes	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
3000	AA	1.031	1.031	1.031	1.188	1.406	1.516	1.516	1.516	2.016	2.016	2.016	2.266
	B	0.750	0.875	1.063	1.250	1.500	1.813	2.250	2.500	3.000	3.625	4.313	5.500
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D Min.	0.375	0.375	0.375	0.375	0.500	0.500	0.500	0.500	0.625	0.625	0.625	0.750
	E	0.250	0.250	0.250	0.375	0.375	0.500	0.500	0.500	0.750	0.750	0.750	0.750
6000	AA	1.0625	1.1250	1.1250	1.1563	1.4063	1.5156	1.5156	1.5156	2.0156	2.0156	2.0156	2.2656
	B	0.875	1.063	1.313	1.500	1.750	2.250	2.500	3.000	3.625	4.250	5.000	6.250
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D Min.	0.375	0.375	0.375	0.375	0.500	0.500	0.500	0.500	0.625	0.625	0.625	0.750
	E	0.250	0.250	0.250	0.375	0.375	0.500	0.500	0.500	0.750	0.750	0.750	0.750
9000	AA				1.3750	1.5000	1.7500	1.7969	2.0000	2.5000
	B				1.813	2.000	2.375	2.750	3.063	3.625
	C				0.855	1.065	1.330	1.675	1.915	2.406
	D Min.				0.375	0.500	0.500	0.500	0.500	0.625
	E				0.375	0.500	0.500	0.500	0.500	0.750

Note: Dimensions are in inches.
