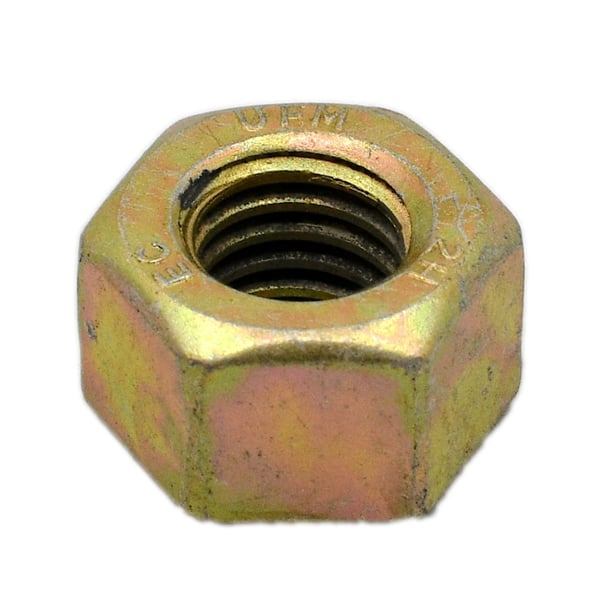

1 1/8-8 A194 2H HEAVY HEX NUT, PLATED

$2.17865/EA

Quantity	Price
Quantity	Price
1	$2.17865/ EA
25	$2.08172/ EA
70	$1.8477/ EA
500	$1.43154/ EA

In Stock

Product Specification
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsGrade 2H

Per ASME B18.2.2-2015
Nominal Diameter		UNC	UNF	UN8	F			G		H
					Width Across Flats			Width Across Corners		Thickness
					Basic	Max	Min	Max	Min	Basic	Max	Min
1/4	0.250	20	28		1/2	0.500	0.488	0.577	0.556	15/64	0.250	0.218
5/16	0.313	18	24		9/16	0.562	0.546	0.650	0.220	19/64	0.314	0.280
3/8	0.375	16	24		11/16	0.688	0.669	0.794	0.763	23/64	0.377	0.341
7/16	0.438	14	20		3/4	0.750	0.728	0.866	0.830	27/64	0.441	0.403
1/2	0.500	13	20		7/8	0.875	0.850	1.010	0.990	31/64	0.504	0.464
9/16	0.563	12	18		15/16	0.938	0.909	1.083	1.037	35/64	0.568	0.526
5/8	0.625	11	18		1 1/16	1.062	1.031	1.227	1.175	39/64	0.631	0.587
3/4	0.750	10	16		1 1/4	1.250	1.212	1.443	1.382	47/64	0.758	0.710
7/8	0.875	9	14		1 7/16	1.438	1.394	1.660	1.589	55/64	0.885	0.833
1	1.000	8	14		1 5/8	1.625	1.575	1.876	1.796	63/64	1.012	0.956
1 1/8	1.125	7	12	8	1 13/16	1.812	1.756	2.093	2.002	1 7/64	1.139	1.079
1 1/4	1.250	7	12	8	2	2.000	1.380	2.309	2.209	1 7/32	1.251	1.187
1 3/8	1.375	6	12	8	2 3/16	2.188	2.119	2.526	2.416	1 11/32	1.378	1.310
1 1/2	1.500	6	12	8	2 3/8	2.375	2.300	2.742	2.622	1 15/32	1.505	1.433
1 5/8	1.625	5 1/2	12	8	2 9/16	2.562	2.481	2.959	2.828	1 19/32	1.632	1.556
1 3/4	1.750	5	12	8	2 3/4	2.750	2.662	3.175	3.035	1 23/32	1.759	1.679
1 7/8	1.875	5	12	8	2 15/16	2.938	2.844	3.392	3.242	1 27/32	1.886	1.802
2	2.000	4 1/2	12	8	3 1/8	3.125	3.025	3.608	3.449	1 31/32	2.013	1.925
2 1/4	2.250	4 1/2	12	8	3 1/2	3.500	3.388	4.041	3.862	2 13/64	2.251	2.155
2 1/2	2.500	4	12	8	3 7/8	3.875	3.750	4.474	4.275	2 29/64	2.505	2.401
2 3/4	2.750	4	12	8	4 1/4	4.250	4.112	4.907	4.688	2 45/64	2.759	2.647
3	3.000	4	12	8	4 5/8	4.625	4.475	5.340	5.102	2 61/64	3.013	2.893
3 1/4	3.250	4	12	8	5	5.000	4.838	5.774	5.515	3 3/16	3.252	3.124
3 1/2	3.500	4	12	8	5 3/8	5.375	5.200	6.207	5.928	3 7/16	3.506	3.370
3 3/4	3.750	4	12	8	5 3/4	5.750	5.562	5.562	6.341	3 11/16	3.670	3.616
4	4.000	4	12	8	6 1/8	6.125	5.925	5.925	6.755	3 15/16	4.014	3.862

All dimensions are in inches.

Diameter	1 1/8
Grades	Grade 2H
Finish	Plated
Weight	0.592,

ASTM A194	This specification covers a variety of carbon, alloy, and martensitic stainless steel nuts in the size range 1⁄4 through 4 in. and metric M6 through M100 nominal. It also covers austenitic stainless steel nuts in the size range 1⁄4 in. and M6 nominal and above. These nuts are intended for high-pressure or high temperature service, or both. Grade substitutions without the purchaser’s permission are not allowed.
ASME B18.2.2	Covers the complete general and dimensional data for the various types of inch series square and hex nuts, including machine screw nuts and coupling nuts.
ASME B1.1 UNC & UNF Class 2B	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

Carbon Steel, Quenched & Tempered		Per ASTM A194/A194M-16
Diameter	Proof Load Stress	Core Hardness		Tempering Temperature
	Min psi	Rockwell		Min
		Min	Max
1/4" thru 1 1/2"	175,000	C24	C35	850F
Over 1 1/2"	175,000		C35	850F

Per ASTM A194/A194M-16
Grade	Material	Carbon	Manganese	Phosphorus	Sulfur (1)	Silicon
Grade	Material	% by weight	% by weight	% by weight	% by weight	% by weight
2H	Carbon Steel	0.40 min	1.00 max	0.040 max	0.050 max	0.04 max
