Home > Gaskets > Metal Core Gaskets > PTFE Ring Gasket W/304 SS Core > 1 1/2 150# 1/8 PTFE ENCAPSULATED RING GASKET, 304SS CORE

Enlarge

Item #: GRMPTF-1500150-1/8

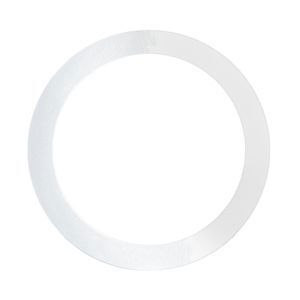

1 1/2 150# 1/8 PTFE ENCAPSULATED RING GASKET, 304SS CORE

$16.01775/EA

Quantity	Price
Quantity	Price
1	$16.01775/ EA
230	$15.47154/ EA
920	$13.14737/ EA
2760	$10.5621/ EA

Qty

In Stock

Product Specification
Governing Standards
Dimensional Specifications

Product Specification

Pipe Diameter	1 1/2
Flange Rating	150#
Full Face or Ring	Ring
Inside Diameter	2.3750
Outside Diameter	3.3750
Thickness	1/8
Core Material	316 Stainless Steel
Filler/Binder Material	PTFE - Virgin
Material	PTFE - Virgin
Origin	Unrestricted Origin
Weight	0.04486638,

Dimensional Specifications

Dimensional SpecificationsPTFE Ring Gasket W/304 SS Core

Per ASME B16.20-2017
		Pipe Diameter
		1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	3 1/2	4	5	6	8	10	12	14	16	18	20	24
Inner Ring ID per Class	150#	0.8438	1.0625	1.3125	1.6563	2.3750	2.3750	2.8750	3.5000	4.0000	4.5000	5.5625	6.6250	8.6250	10.7500	12.7500	14.0000	16.0000	18.0000	20.0000	24.0000
	300#, 400#, 600#	0.8438	1.0625	1.3125	1.6563	2.3750	2.3750	2.8750	3.5000
	300#									4.0000	4.5000	5.5625	6.6250	8.6250	10.7500	12.7500	14.0000	16.0000	18.0000	20.0000	24.0000
Outer Ring OD per Class	150#	1.8750	2.2500	2.6250	3.0000	3.3750	4.1250	4.8750	5.3750	6.3750	6.8750	7.7500	8.7500	11.0000	13.3750	16.1250	17.7500	20.2500	21.6250	23.8750	28.2500
	300#, 400#, 600#	2.1250	2.6250	2.8750	3.2500	3.7500	4.3800	5.1250	5.8750
	300#									6.5000	7.1250	8.5000	9.8750	12.1250	14.2500	16.6250	19.1250	21.2500	23.5000	25.7500	30.5000
Thickness /All Classes		0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938	0.0938

All dimensions are in inches.
