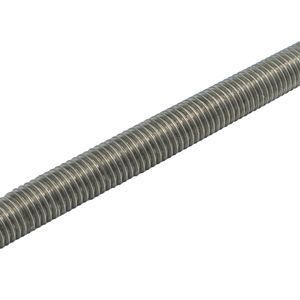

1 7/8-8 X 12 Ft A193/A320 B8 Stainless Steel All Thread Rod

Name: 1 7/8-8 X 12 Ft A193/A320 B8 Stainless Steel All Thread Rod
Price: 51.7788 USD
Availability: InStock

$51.7788/FT

Qty

16 EA In Stock

Mechanical PropertiesGrade B8 Stainless Steel

AISI 304 Stainless Steel, Carbide Solution Treated				Per ASTM A193/A193M-16 (1)
Grade	Material	Tensile Strength	Yield Strength, 0.2% offset	Elongation in 4D	Reduction of Area	Hardness
Grade	Material	Min ksi	Min ksi	Min %	Min %	Max
B8	304 Stainless Steel	75	30	30	50	223 HBW or 96 HRB (2)

1. Only applies to B8 as specified in the "Grade" column below.
2. For sizes 3⁄4 in. in diameter and smaller, a maximum hardness of 241 HBW (100 HRB) is permitted.

AISI 304 Stainless Steel, Carbide Solution Treated				Per ASTM A320/A320M-15a (1)
Grade	Material	Tensile Strength	Yield Strength, 0.2% offset	Elongation in 2 in. or 50 mm	Reduction of Area	Hardness
Grade	Material	Min ksi	Min ksi	Min %	Min %	Max
B8	304 Stainless Steel	75	30	30	50	223 HBW or 96 HRB (2)

1. Only applies to B8 as specified in the "Grade" column below.
2. For sizes 3⁄4 in. in diameter and smaller, a maximum hardness of 241 HBW (100 HRB) is permitted.

ASTM A193 (1)	Covers alloy and stainless steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
ASME B18.31.3	Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

ASTM A320 (1)	Covers alloy steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for low-temperature service.
ASME B18.31.3	Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.
