14'' Figure G216 Heavy Pipe Clamp, Galvanized

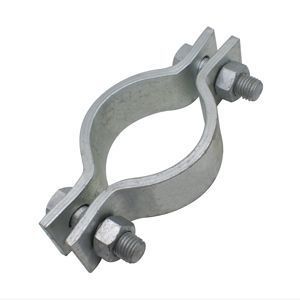

Selected Figure G216 Heavy Pipe Clamp Hot Dipped GalvanizedFig G216 Heavy Pipe Clamp, Galvanized
Figure G216 Heavy Pipe Clamp Hot Dipped GalvanizedFig G216 Heavy Pipe Clamp, Galvanized

Product Specification

Figure
Figure 216
Pipe Diameter
14
Load Rating
9150
Material
Steel
Finish
Hot Dipped Galvanized
Country of Origin
Unrestricted Origin
Weight
59.094000

Product Details

MATERIAL Hot Dipped Galvanized Carbon Steel
MAX TEMP 450F (232C)
COMPLIANCE Federal Specification A-A-1192A (Type 4), ANSI/MSS SP-58 (Type 4)
NOTE Distance between clamp ears beneath pipe may or may not be equal to upper gap.

Installation Drawings

Figure 216 Installation Drawing

Figure 216 Installation Drawing

Figure 216 Installation Drawing

Figure 216 Installation Drawing

Dimensions & Loads

Figure 216 Heavy Pipe ClampFigure 216 Heavy Pipe Clamp

PIPE
SIZE		 MAXIMUM LOAD B C D E F H WEIGHT
EACH
650F (343C) 750F (399C)
2 3400 3000 2 1/4 3/4 3 2 1/4 5/8 3 2.1
3 3550 3150 3 1/8 1 4 3 1/8 3/4 4 3.8
4 3550 3150 3 3/4 1 4 7/8 3 3/4 7/8 4 7/8 6.5
5 3550 3150 4 3/8 1 5 1/2 4 3/8 7/8 5 1/2 7.4
6 4900 4350 5 3/8 1 1/8 6 3/4 5 3/8 1 6 3/4 14.0
8 4900 4350 6 3/4 1 1/8 8 1/8 6 3/4 1 8 1/8 16.4
10 6000 5400 7 5/8 1 1/4 9 1/8 7 3/4 1 1/4 9 25.3
12 8700 7750 9 1/4 1 5/8 11 3/8 9 1/2 1 1/2 11 1/8 44.1
14 9150 8150 9 3/4 1 5/8 11 7/8 10 1 1/2 11 5/8 58.8
16 9150 8150 11 1 5/8 12 7/8 11 1 1/2 12 7/8 64.1
18 13800 ---------- 14 1/2 3 17 1/4 14 1/2 2 17 1/4 126
20 15300 ---------- 16 3 18 3/4 16 2 18 3/4 150
24 16300 ---------- 18 1/2 3 1/4 21 1/2 18 1/2 2 1/4 21 1/2 211
28 18000 ---------- 21 1/2 3 1/4 21 1/2 18 1/2 2 1/4 21 1/2 303
30 20500 ---------- 22 1/2 3 1/2 26 22 1/2 2 1/2 26 369
32 23750 ---------- 23 1/4 3 1/2 26 3/4 23 1/4 2 1/2 26 3/4 416
34 25000 ---------- 24 3/4 3 1/2 28 1/4 24 3/4 2 1/2 28 1/4 518
36 28000 ---------- 26 1/2 3 1/2 30 1/4 26 1/2 2 3/4 30 1/4 575
42 35000 ---------- 29 1/2 3 1/2 33 1/4 29 1/2 2 3/4 33 1/4 944
  1. All dimensions are in inches.
