Item #: GR100V-1502000-1/8

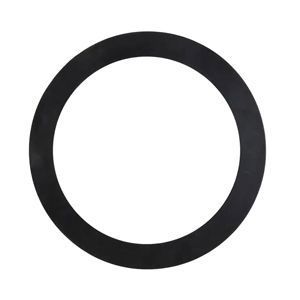

20 150# 1/8 VITON 70 DUROMETER +/- 5 RING GASKET

$215.59279/EA

Quantity	Price
Quantity	Price
1	$215.59279/ EA
40	$201.21275/ EA
160	$147.33611/ EA
480	$106.37348/ EA

Qty

1-3 Working Days

Product Specification
Governing Standards
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsViton Ring Gasket

Per ASME B16.21-2016
		Pipe Diameter
		1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	3 1/2	4	5	6	8	10	12	14	16	18	20	24
Inside Diameter		0.84	1.06	1.31	1.66	2.38	2.38	2.88	3.50	4.00	4.50	5.56	6.63	8.63	10.75	12.75	14.00	16.00	18.00	20.00	24.00
Outside Diameter per Class	150#	1.88	2.25	2.62	3.00	3.38	4.12	4.88	5.38	6.38	6.88	7.75	8.75	11.00	13.38	16.13	17.75	20.25	21.62	23.88	28.25
	300#	2.12	2.62	2.88	3.25	3.75	4.38	5.12	5.88	6.50	7.12	8.50	9.88	12.12	14.25	16.62	19.12	21.25	23.50	25.75	30.50
	600#	2.12	2.62	2.88	3.25	3.75	4.38	5.12	5.88	6.38	7.62	9.50	10.50	12.62	15.75	18.00	19.38	22.25	24.12	26.88	31.12

Per ASME B16.47-2017
Series A		Pipe Diameter
Series A		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	30.50	32.75	34.75	37.00	39.00	41.25	43.75	45.75	48.00	50.25	52.25	54.50	56.50	58.75	61.00	63.25	65.50	67.50
	300#	32.88	35.38	37.50	39.62	41.62	44.00	41.50	43.88	45.88	48.00	50.12	52.12	54.25	56.25	58.75	60.75	62.75	64.75
	600#	34.12	36.00	38.25	40.25	42.25	44.50	43.50	45.50	48.00	50.00	52.26	54.75	57.00	59.00	61.25	63.50	65.50	67.75
Per ASME B16.47-2017
Series B		Pipe Diameter
Series B		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	28.56	30.56	32.56	34.69	36.81	38.88	41.12	43.12	45.12	47.12	49.44	51.44	53.44	55.44	57.62	59.62	62.19	64.19
	300#	30.38	32.50	34.88	37.00	39.12	41.25	43.25	45.25	47.25	49.25	51.88	53.88	55.88	57.88	61.25	62.75	65.19	67.12
	600#	30.12	32.25	34.62	36.75	39.25	41.25

All dimensions are in inches.
