Home > Fasteners > U-Bolt > Long Tangent U-Bolt, Plated > 5/16 X 3/4 LONG TANGENT U-BOLT, PLATED

Enlarge

Item #: UBLP0310075

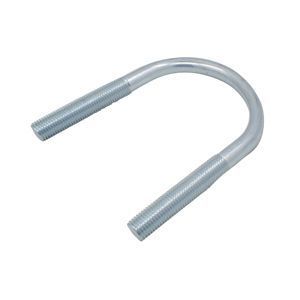

5/16 X 3/4 LONG TANGENT U-BOLT, PLATED

$1.01079/EA

Quantity	Price
Quantity	Price
1	$1.01079/ EA
90	$0.95809/ EA
350	$0.87083/ EA
1550	$0.59259/ EA

Qty

In Stock

Product Specification
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsU-Bolt

U-Bolt dimensions

Pipe Size	Diameter	Threads per Inch	Standard U-Bolts				Long Tangent U-Bolts
	Diameter		Number	Inside Length	Inside Width	Thread Length	Inside Length	Inside Width	Thread Length
	D		Number	L	C	T	L	C	T
1/4	1/4	20	1	1 1/4	9/16	3/4
3/8	1/4	20	2	1 1/4	3/4	5/8
3/8	1/4	20	3	2 1/4	3/4	1 1/2
1/2	1/4	20	4	1 3/4	1	1	3 1/4	15/16	2 3/8
	5/16	18	10	2 3/16	1	1 3/8
	3/8	16	17	2 1/4	1	1 1/4	3 1/4	15/16	2 3/8
3/4	1/4	20	5	2	1 1/8	1	3 5/16	1 1/8	2 3/8
	1/4	20	6	2 1/4	1 1/4	1 1/4
	5/16	18	101	2 3/16	1 1/8	1
	3/8	16	18	2 1/4	1 1/4	1 1/4	3 5/16	1 1/8	2 3/8
1	1/4	20	7	2 3/4	1 1/2	1 3/8	3 7/16	1 3/8	2 3/8
	5/16	18	11	2 3/16	1 3/8	1
	5/16	18	12	2 3/16	1 1/2	1
	3/8	16	19	2 1/2	1 1/2	1 1/4	3 7/16	1 3/8	2 3/8
1 1/4	1/4	20	8	3	1 3/4	1 3/8
	5/16	18	13	2 11/16	1 3/4	1 1/8
	3/8	16	20	2 3/4	1 3/4	1 1/8	3 3/4	1 11/16	2 1/2
1 1/2	1/4	20	9	3 1/4	2	1 3/8
	5/16	18	14	2 11/16	2	1
	3/8	16	21	2 5/8	2	1 1/4	4	2	2 1/2
2	1/4	20	902	3 3/16	2 1/2	1
	5/16	18	15	3 3/16	2 1/2	1
	3/8	16	22	3 1/8	2 1/2	1 1/4	4 1/2	2 7/16	2 1/2
2 1/2	5/16	18	16	3 11/16	3	1
	3/8	16	23	3 5/8	3	1 1/4
	1/2	13	25	4 1/2	3	1 5/8	5 1/4	2 15/16	3
3	3/8	16	24	4 1/8	3 1/2	1 1/4
3	1/2	13	26	5	3 1/2	1 1/2	5 13/16	3 9/16	3
3 1/2	1/2	13	27	5 1/2	4	1 1/2	6 5/16	4 1/16	3
4	1/2	13	28	6	4 1/2	1 1/2	6 13/16	4 9/16	3
5	1/2	13	29	7 1/4	5 5/8	2	7 13/16	5 5/8	3
6	1/2	13	30	8 3/8	6 3/4	2	9 1/2	6 3/4	3 3/4
6	5/8	11		8 3/8	6 3/4	2	9 1/2	6 3/4	3 3/4
8	1/2	13	31	10 3/8	8 3/4	2	11 1/2	8 3/4	3 3/4
8	5/8	11		10 3/8	8 3/4	2	11 1/2	8 3/4	3 3/4
10	3/4	10					13 13/16	10 7/8	4
12	7/8	9					16 1/16	12 7/8	4 1/8
14	7/8	9					17 5/16	14 1/8	4 1/8
16	7/8	9					19 5/16	16 1/8	4 1/8
18	1	8					21 11/16	18 1/8	4 3/4
20	1	8					23 11/16	20 1/8	4 3/4
24	1	8					27 11/16	24 1/8	4 3/4
28	1	8					31 11/16	28 1/8	4 3/4
30	1	8					33 11/16	30 1/8	4 3/4
36	1	8					39 11/16	36 1/8	4 3/4

All dimensions are in inches.
