Home > Pipe Fittings and Flanges > Pipe Caps > A234 Butt Weld Pipe Cap > 6'' Schedule Std A234 Butt Weld Pipe Cap Approved

Enlarge

Item #: PCA40C6-X

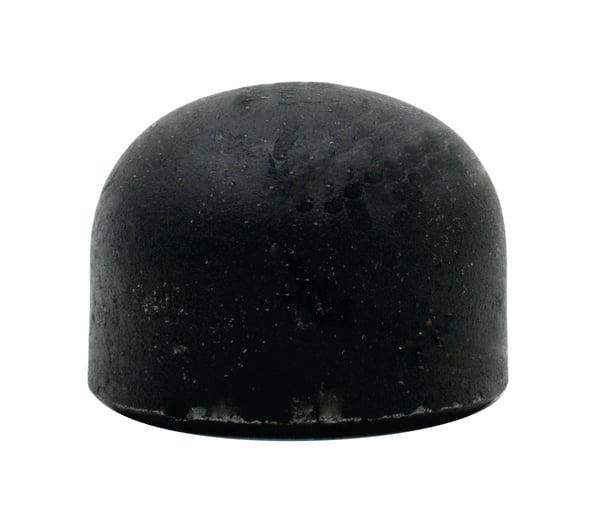

6'' Schedule Std A234 Butt Weld Pipe Cap Approved

Call for availability

Product Specification
Governing Standards
Chemical Properties
Mechanical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsA234 Butt Weld Pipe Cap

	Outside Diameter	Inside Diameter (I.D.)		Wall Thickness (T)		Height	Aprrox. Weight in Pounds
Pipe Size	(O.D.)	Schedule 40	Schedule 80	Schedule 40	Schedule 80	(H)	Schedule 40	Schedule 80
1/2	0.84	0.622	0.546	0.109	0.147	1.00	0.08	0.10
3/4	1.05	0.824	0.742	0.113	0.154	1.00	0.50	0.16
1	1.32	1.054	0.962	0.113	0.179	1.50	0.70	0.28
1 1/4	1.66	1.380	1.278	0.140	0.191	1.50	1.00	0.45
1 1/2	1.90	1.610	1.500	0.145	0.200	1.50	1.30	0.61
2	2.38	2.072	1.944	0.154	0.218	1.50	1.50	1.20
2 1/2	2.88	2.474	2.328	0.203	0.276	1.50	1.75	2.00
3	3.50	3.068	2.900	0.216	0.300	2.00	3.00	3.30
3 1/2	4.00	3.548	3.364	0.226	0.318	2.50	5.00	4.50
4	4.50	4.026	3.826	0.237	0.337	2.50	9.00	6.20
5	5.56	5.044	4.810	0.258	0.375	3.00	16.00	10.50
6	6.62	6.060	5.756	0.280	0.432	3.50	22.50	17.00
8	8.62	7.976	7.620	0.322	0.500	4.00	45.00	34.30
10	10.75	10.020	9.562	0.365	0.594	5.00	80.00	150.00
12	12.75	11.938	11.374	0.406	0.688	6.00	160.00	200.00
14	14.00	13.124	12.500	0.438	0.750	6.50	270.00	337.50
16	16.00	15.000	14.312	0.500	0.844	7.00	260.00	450.00
18	18.00	16.876	16.124	0.562	0.938	9.00	490.00	612.50
20	20.00	18.812	17.938	0.594	1.031	10.00	615.00	768.75
24	24.00	22.624	21.562	0.688	1.219	12.00	775.00	968.75
