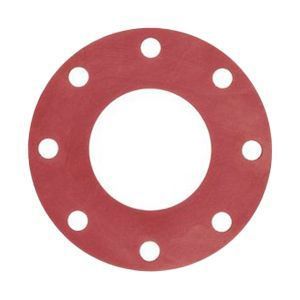

8 150# 1/8 Red Rubber 75 Durometer +/- 5 Full Face Gasket

$8.27/EA

Quantity	Price
Quantity	Price
1	$8.27/ EA
25	$7.71839/ EA
100	$5.65172/ EA
300	$4.08042/ EA

6 EA In Stock

Product Specification
Governing Standards
Physical Properties
Dimensional Specifications

Product Specification

Pipe Diameter	8
Flange Rating	150#
Full Face or Ring	Full Face
Inside Diameter	8.6250
Outside Diameter	13.5000
Thickness	1/8
Sheet Material	Red Rubber 75 Duro
Bolt Hole Circle	11.75
# of Bolt Holes	8
Bolt Hole Diameter	0.875
Material	Red Rubber
Origin	Unrestricted Origin
Weight	0.47056403,

Dimensional Specifications

Dimensional SpecificationsRed Rubber Full Face Gasket

Per ASME B16.21-2016
		Pipe Diameter
		1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	3 1/2	4	5	6	8	10	12	14	16	18	20	24
Inside Diameter		0.84	1.06	1.31	1.66	1.91	2.38	2.88	3.50	4.00	4.50	5.56	6.62	8.62	10.75	12.75	14.00	16.00	18.00	20.00	24.00
Outside Diameter per Class	150#	3.50	3.88	4.25	4.63	5.00	6.00	7.00	7.50	8.50	9.00	10.00	11.00	13.50	16.00	19.00	21.00	23.50	25.00	27.50	32.00
	300#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.00	11.00	12.50	15.00	17.50	20.50	23.00	25.50	28.00	30.50	36.00
	600#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.75	13.00	14.00	16.50	20.00	22.00	23.75	27.00	29.25	32.00	37.00
Bolt Circle Diameter per Class	150#	2.38	2.75	3.13	3.50	3.88	4.75	5.50	6.00	7.00	7.50	8.50	9.50	11.75	14.25	17.00	18.75	21.25	22.75	25.00	29.50
	300#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	7.88	9.25	10.62	13.00	15.25	17.75	20.25	22.50	24.75	27.00	32.00
	600#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	8.50	10.50	11.50	13.75	17.00	19.25	20.75	23.75	25.75	28.50	33.00
Number of Bolt Holes per Class	150#	4	4	4	4	4	4	4	4	8	8	8	8	8	12	12	12	16	16	20	20
	300#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	16	20	20	24	24	24
	600#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	20	20	20	20	24	24
Bolt Hole Diameter per Class	150#	0.63	0.63	0.63	0.63	0.63	0.75	0.75	0.75	0.75	0.75	0.88	0.88	0.88	1.00	1.00	1.13	1.13	1.25	1.25	1.38
	300#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	0.88	0.88	0.88	0.88	1.00	1.12	1.25	1.25	1.38	1.38	1.38	1.62
	600#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	1.00	1.00	1.12	1.12	1.25	1.38	1.38	1.50	1.62	1.75	1.75	2.00

Per ASME B16.47-2017
Series A		Pipe Diameter
Series A		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	34.25	36.50	38.75	41.75	43.75	46.00	48.75	50.75	53.00	55.25	57.25	59.50	61.75	64.00	66.25	68.75	71.00	73.00
	300#	38.25	40.75	43.00	45.25	47.50	50.00	46.00	48.75	50.75	53.25	55.75	57.75	60.25	62.25	65.25	67.25	69.25	71.25
	600#	40.00	42.25	44.50	47.00	49.00	51.75	50.00	52.00	55.25	57.25	59.50	62.75	65.75	67.75	70.00	73.00	75.00	78.50
Bolt Circle Diameter per Class	150#	31.75	34.00	36.00	38.50	40.50	42.75	45.25	47.25	49.50	51.75	53.75	56.00	58.25	60.50	62.75	65.00	67.25	69.25
	300#	34.50	37.00	39.25	41.50	43.50	46.00	43.00	45.50	47.50	49.75	52.00	54.00	56.25	58.25	61.00	63.00	65.00	67.00
	600#	36.00	38.00	40.25	42.50	44.50	47.00	45.75	47.75	50.50	52.50	54.75	57.50	60.00	62.00	64.25	66.75	68.75	71.75
Number of Bolt Holes per Class	150#	24	28	28	28	32	32	32	36	36	40	40	44	44	44	44	48	48	52
	300#	28	28	28	28	28	32	32	32	32	32	28	32	32	32	28	28	32	32
	600#	28	28	28	28	28	28	28	32	28	32	32	32	28	32	32	32	32	28
Bolt Hole Diameter per Class	150#	1.38	1.38	1.38	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.88	1.88	1.88	1.88	1.88	1.88
	300#	1.75	1.75	1.88	2.00	2.00	2.12	1.62	1.75	1.75	1.88	2.00	2.00	2.12	2.12	2.38	2.38	2.38	2.38
	600#	2.00	2.12	2.12	2.38	2.38	2.62	2.38	2.38	2.62	2.62	2.62	2.88	3.12	3.12	3.12	3.38	3.38	3.62
Per ASME B16.47-2017
Series B		Pipe Diameter
Series B		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	30.94	32.94	34.94	37.06	39.56	41.62	44.25	46.25	48.25	50.25	52.81	54.81	56.81	58.81	61.00	63.00	65.94	67.94
	300#	34.12	36.25	39.00	41.50	43.62	46.12	48.12	50.12	52.50	54.50	57.50	59.50	61.50	63.50	65.88	69.50	71.94	73.94
	600#	35.00	37.50	40.25	42.75	45.75	47.75
Bolt Circle Diameter per Class	150#	29.31	31.31	33.31	35.44	37.69	39.75	42.12	44.12	46.12	48.12	50.56	52.56	54.56	56.56	58.75	60.75	63.44	65.44
	300#	31.62	33.75	36.25	38.50	40.62	42.88	44.88	46.88	49.00	51.00	53.75	55.75	57.75	59.75	62.12	65.00	67.44	69.44
	600#	31.75	34.00	36.50	38.75	41.50	43.50
Number of Bolt Holes per Class	150#	36	40	44	48	40	44	40	44	48	52	40	44	48	52	56	60	48	52
	300#	32	36	36	32	36	32	36	40	36	40	36	40	44	48	48	36	40	40
	600#	28	28	28	28	24	28
Bolt Hole Diameter per Class	150#	0.88	0.88	0.88	0.88	1.00	1.00	1.12	1.12	1.12	1.12	1.25	1.25	1.25	1.25	1.25	1.25	1.38	1.38
	300#	1.38	1.38	1.50	1.62	1.62	1.75	1.75	1.75	1.88	1.88	2.00	2.00	2.00	2.00	2.00	2.38	2.38	2.38
	600#	1.75	1.88	2.00	2.12	2.38	2.38

All dimensions are in inches.

Typical Physical Properties:
Dimension			1/8"
Hardness (shore A)			75 +/- 5
Density (g/cm3)			1.70
Tensile Strength (mpa)			2.50
Elongation (%)			180
Temperature			-22F to 212F (-30C to 100C)

8 150# 1/8 Red Rubber 75 Durometer +/- 5 Full Face Gasket

Technical Data

Product Specification

Governing Standards

Governing StandardsRed Rubber Full Face Gasket

Physical Properties

Physical PropertiesRed Rubber Full Face Gasket

Dimensional Specifications

Dimensional SpecificationsRed Rubber Full Face Gasket

ASME B16.21	Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47	Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.
