Concentric Swage Nipple

Products
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsA234

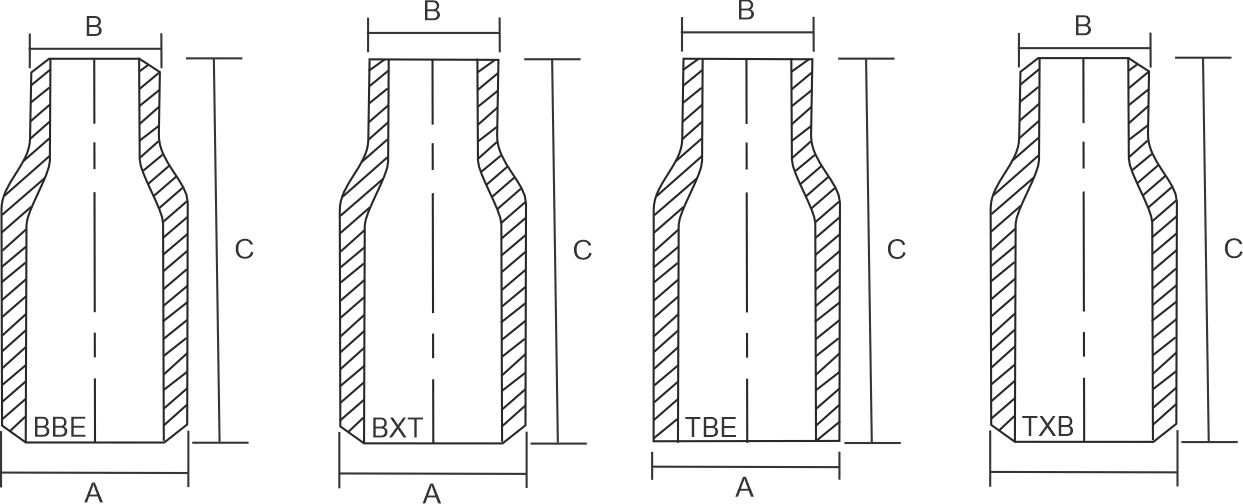

Pipe Size		Dimensions			Weights
Pipe Size		A	B	C	STD	XH	S160	XXH
1/4	1/8	0.54	0.405	2.25	0.07	0.09	0.1	0.12
3/8	1/8	0.675	0.405	2.5	0.11	0.14	0.16	0.19
3/8	1/4	0.675	0.54	2.5	0.12	0.15	0.17	0.21
1/2	1/8	0.84	0.405	2.75	0.19	0.22	0.26	0.31
	1/4	0.84	0.54	2.75	0.19	0.23	0.26	0.33
	3/8	0.84	0.675	2.75	0.19	0.23	0.27	0.35
3/4	1/8	1.05	0.405	3	0.38	0.43	0.5	0.58
	1/4	1.05	0.54	3	0.38	0.43	0.51	0.6
	3/8	1.05	0.675	3	0.36	0.43	0.52	0.62
	1/2	1.05	0.84	3	0.35	0.44	0.53	0.66
1	1/8	1.315	0.405	3.5	0.58	0.65	0.76	0.88
	1/4	1.315	0.54	3.5	0.57	0.66	0.76	0.9
	3/8	1.315	0.675	3.5	0.56	0.65	0.76	0.91
	1/2	1.315	0.84	3.5	0.55	0.65	0.78	0.95
	3/4	1.315	1.05	3.5	0.51	0.63	0.79	0.98
1 1/4	1/8	1.66	0.405	4	1	1.13	1.27	1.52
	1/4	1.66	0.54	4	1	1.14	1.28	1.54
	3/8	1.66	0.675	4	0.98	1.13	1.28	1.56
	1/2	1.66	0.84	4	0.96	1.12	1.28	1.59
	3/4	1.66	1.05	4	0.92	1.09	1.29	1.61
	1	1.66	1.315	4	0.87	1.07	1.3	1.67
1 1/2	1/8	1.9	0.405	4.5	1.34	1.53	1.78	2.08
	1/4	1.9	0.54	4.5	1.34	1.53	1.78	2.11
	3/8	1.9	0.675	4.5	1.32	1.53	1.79	2.13
	1/2	1.9	0.84	4.5	1.31	1.53	1.8	2.16
	3/4	1.9	1.05	4.5	1.27	1.5	1.82	2.19
	1	1.9	1.315	4.5	1.22	1.48	1.83	2.27
	1 1/4	1.9	1.66	4.5	1.11	1.41	1.78	2.33
2	1/2	2.375	0.84	6.5	2.73	3.22	4.05	4.64
	3/4	2.375	1.05	6.5	2.67	3.18	4.06	4.67
	1	2.375	1.315	6.5	2.6	3.14	4.06	4.73
	1 1/4	2.375	1.66	6.5	2.44	3.03	3.95	4.77
	1 1/2	2.375	1.9	6.5	2.3	2.93	3.96	4.8
2 1/2	3/4	2.875	1.05	7	3.98	4.75	5.71	7.17
	1	2.875	1.315	7	3.93	4.72	5.72	7.23
	1 1/4	2.875	1.66	7	3.81	4.64	5.66	7.29
	1 1/2	2.875	1.9	7	3.7	4.57	5.68	7.33
	2	2.875	2.375	7	3.44	4.4	5.78	7.42
3	1	3.5	1.315	8	6.86	8.01	9.74	11.57
	1 1/4	3.5	1.66	8	6.65	7.86	9.61	11.59
	1 1/2	3.5	1.9	8	6.47	7.73	9.59	11.6
	2	3.5	2.375	8	6.03	7.41	9.6	11.61
	2 1/2	3.5	2.875	8	5.78	7.3	9.46	12.09
3 1/2	1 1/2	4	1.9	8	8.36	9.91		14.6
	2	4	2.375	8	7.9	9.56		14.54
	2 1/2	4	2.875	8	7.59	9.38		14.92
	3	4	3.5	8	6.79	8.81		15.03
4	1 1/2	4.5	1.9	9	14.42	16.38	19.75	22.23
	2	4.5	2.375	9	13.56	15.66	19.4	21.88
	2 1/2	4.5	2.875	9	12.8	15.06	18.75	21.96
	3	4.5	3.5	9	11.22	13.76	18.03	21.47
	3 1/2	4.5	4	9	9.72	12.53		21.01
6	3	6.625	3.5	12	28	34.08	44.36	50.24
	3 1/2	6.625	4	12	26.9	33.28		50.32
	4	6.625	4.5	12	25.68	32.4	44.21	50.47
	5	6.625	5.563	12	22.55	30.21	44.35	50.89

No items were found

ASTM A234	Specification covers seamless and welded fitting made from wrought carbon steel and alloy steel. Fittings for use in pressure piping and pressure vessel fabrication.
ASME B16.11	Covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.
	Per ASTM A105-A105M-24

Per ASTM A234 WPB
Grade A234	Tensile Strength	Yield Strength
Grade A234	Min ksi [MPa]	Min ksi [Mpa]
	60 [415]	35 [240]

Per ASTM A234 WPB	Element	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Copper	Nickel	Chromium	Molybdenum	Vanadium

	Composition, %	0.3	0.29-1.06	0.050	0.058	0.10 min	0.40	0.40	0.40	0.15 max	0.08
