KITZ #51 Ball Valve Specs
KITZ #37 Gate Specs
KITZ #68LL Ball Valve Specs

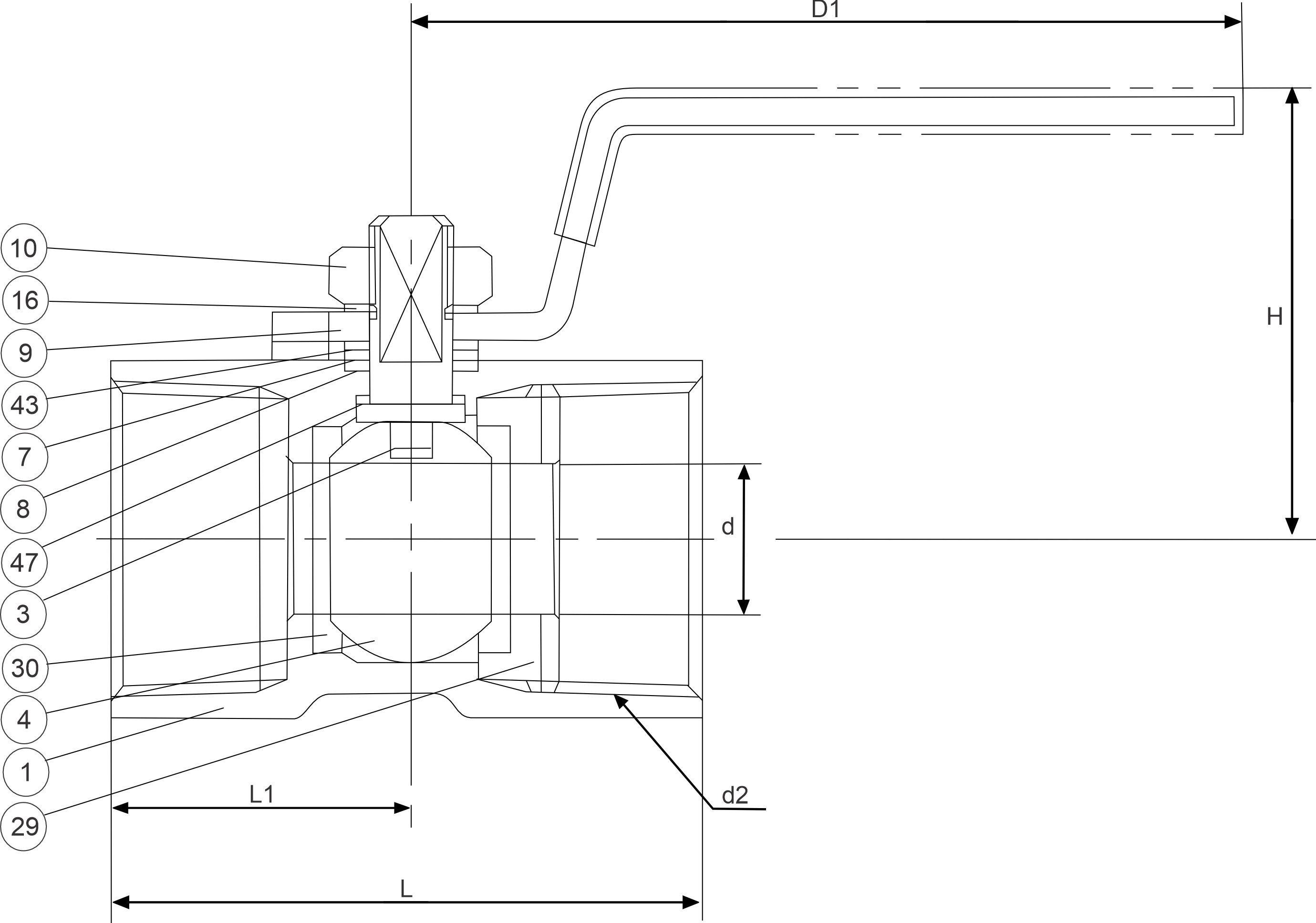

KITZ #51 Ball Valve Specs

Material ListKITZ 51 Ball Valve

NO.	NAME OF PART	SPECIFICATION
1	BODY	FORGED BRASS (B283, C37700)
3	STEM	SPECIAL BRASS (KITZ “K” METAL)
4	BALL	(1) FORGED BRASS (B283, C37700)
7	GLAND	STAINLESS STEEL (A276 TYPE 430)
8	GLAND PACKING	G/F PTFE
9	HANDLE	(2) STAINLESS STEEL (A276 TYPE 430)
10	HANDLE NUT	CARBON STEEL
16	SPRING WASHER	CARBON STEEL
29	INSERT	FORGED BRASS (B124, C37700)
30	BALL SEATS	G/F PTFE
43	SPRING	STAINLESS STEEL (A276 TYPE 304)
47	THRUST WASHER	REINFORCED PTFE

Dimensions - Weights - QuantitiesKITZ 51 Ball Valve

d2	d	H	D1	L	L1	APPROX. NET WT.	CARTON QTY
SIZE						APPROX. NET WT.	CARTON QTY
1/4	0.18	1.22	2.36	1.54	0.75	22	120
3/8	0.28	1.42	2.76	1.73	0.83	26	120
1/2	0.36	1.61	3.35	2.22	1.08	51	120
3/4	0.49	1.73	3.35	2.32	1.18	61	96
1	0.63	1.89	3.94	2.79	1.42	54	54
11/4	0.79	1.89	3.94	3.07	1.57	52	32
11/2	0.96	2.56	4.92	3.27	1.67	47	24
2	1.26	2.83	4.92	3.94	2.01	52	16

StandardsKITZ 51 Ball Valve

End to End	KITZ
End Connection	ANSI B1.20.1
Wall Thickness	KITZ

Pressure/TemperatureKITZ 51 Ball Valve

150 PSI - Saturated Steam to 366°F
600 PSI - Non-Shock Cold Water, Oil or Gas

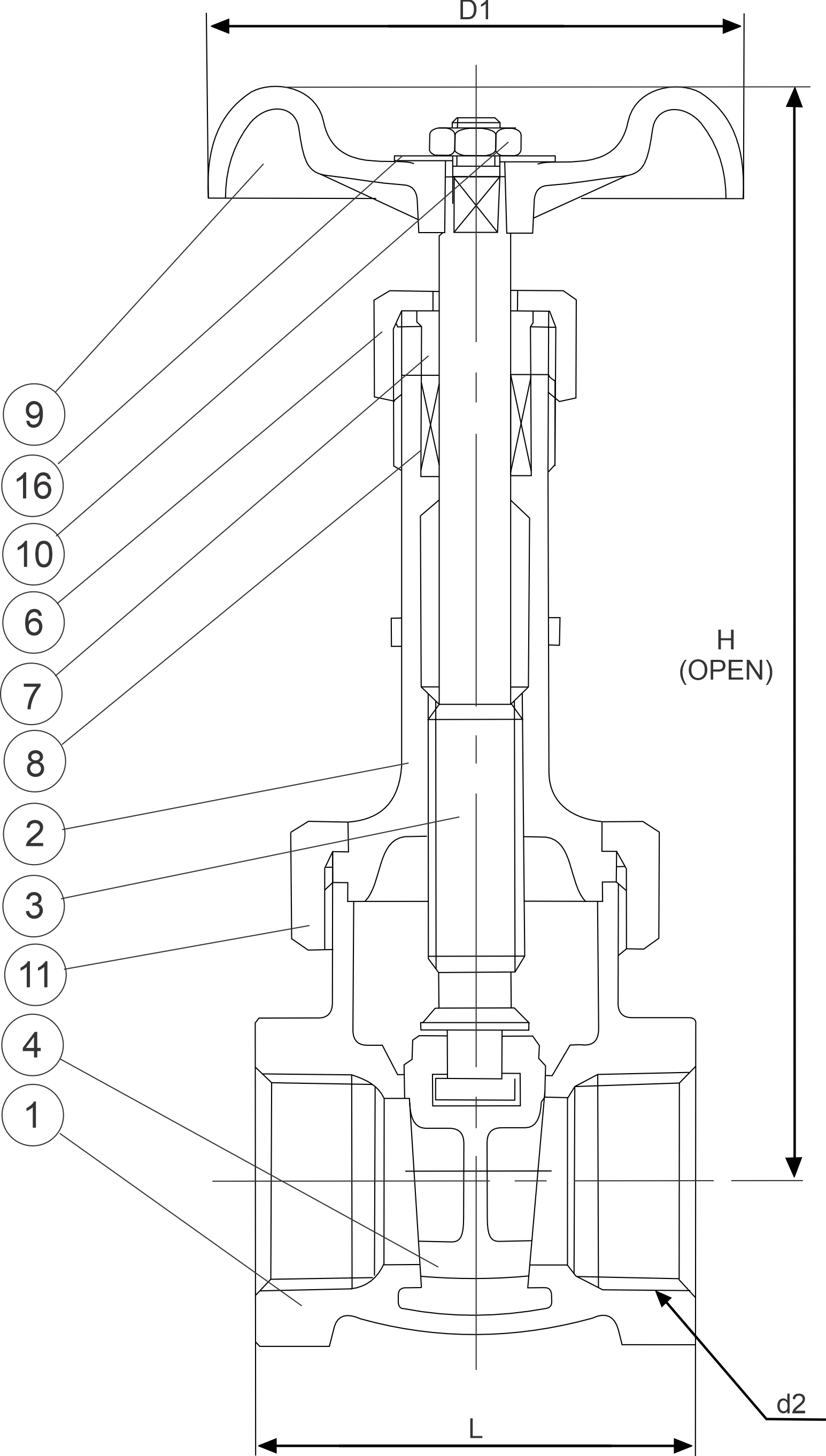

KITZ #37 Gate Specs

Material ListKITZ 37 Gate

NO.	NAME OF PART	SPECIFICATION
1	BODY	CAST BRONZE (ASTM B61)
2	BONNET	CAST BRONZE (ASTM B61)
3	STEM	CAST BRONZE (ASTM B62)
4	DISC	COPPER-NICKEL ALLOY
4	DISC	(B584, C97600)
6	PACKING NUT	FORGED BRASS (B283, C37700)
7	GLAND	BRASS ROD (B16)
8	GLAND PACKING	FLEXIBLE GRAPHITE & ALUM.
9	HAND WHEEL (3/8 - 1/2)	ZINC DIE-CAST (B86)
9	(3/4 - 2)	ALUMINUM DIE-CAST (B85)
10	WHEEL NUT	BRASS ROD
11	BONNET RING	CAST BRONZE (B61)
16	NAME PLATE	ALUMINUM

Dimensions - Weights - QuantitiesKITZ 37 Gate

d2	H	D1	L	APPROX. NET WT.	CARTON QTY
SIZE				APPROX. NET WT.	CARTON QTY
3/8	4.92	2.36	1.81	1.04	48
1/2	5.87	2.76	2.01	1.31	36
3/4	6.81	3.15	2.20	1.79	24
1	7.64	3.15	2.60	2.50	18
11/4	8.98	3.94	2.91	4.17	12
11/2	10.79	4.53	3.31	6.00	8
2	12.32	5.31	3.86	9.50	4

StandardsKITZ 37 Gate

End to End	KITZ
Threaded Ends	ANSI B1.20.1
Design	MSS SP-80, Type 2
Military	MSS SP-80, Type 2

Pressure/TemperatureKITZ 37 Gate

300 PSI - Saturated steam to 421°F, fluid to 550°F
1000 PSI - Non-Shock Cold Water, Oil or Gas

KITZ #68LL Ball Valve Specs

Material ListKITZ 68LL Ball Valve

NO.	NAME OF PART	SPECIFICATION
1	BODY	FORGED BRASS (B283, C37700)
2	BODY CAP	FORGED BRASS (B283, C37700)
3	STEM	(1) SPECIAL BRASS (KITZ K-METAL)
4	BALL	(2) FORGED BRASS (B283, C37700)
7	GLAND	BRASS ROD (B16)
8	GLAND PACKING	PTFE
9	HANDLE	(3) CARBON STEEL
10	HANDLE NUT (1/4" - 2 1/2")	CARBON STEEL
16	SPRING WASHER (3")	CARBON STEEL
16A	WASHER	CARBON STEEL
30	BALL SEATS	PTFE

Dimensions - Weights - QuantitiesKITZ 68LL Ball Valve

	d2 SIZE	d	H	D1	L	L1	d1 Max.	d1 Min.	Approx. Net Wt.	Carton Qty
in.	1/4	0.39	1.54	3.23	1.61				48	120
mm.	1/4	9.9	39.1	82.0	40.9				21.8	120
in.	3/8	0.39	1.54	3.23	1.65	1.05	.506	.502	48	120
mm.	3/8	9.9	39.1	82.0	41.9	26.7	12.852	12.751	21.8	120
in.	1/2	0.59	1.65	3.23	2.09	1.13	.631	.627	52	96
mm.	1/2	14.0	41.9	82.0	53.1	28.7	16.027	15.926	23.6	96
in.	3/4	0.79	2.01	3.94	2.36	1.37	.881	.877	50	60
mm.	3/4	20.1	51.1	100.1	59.9	34.8	22.4	22.3	22.7	60
in.	1	0.98	2.32	5.12	2.83	1.64	1.132	1.128	51	36
mm.	1	24.9	58.9	130.0	71.9	41.7	28.8	28.7	23.2	36
in.	1 1/4	1.26	2.52	5.12	3.23	2	1.382	1.378	50	24
mm.	1 1/4	32.0	64.0	130.0	82.0	50.8	35.1	35.0	22.7	24
in.	1 1/2	1.57	2.87	5.91	3.62	2.35	1.633	1.628	54	16
mm.	1 1/2	39.9	72.9	150.1	91.9	59.7	41.5	41.4	24.5	16
in.	2	1.97	3.15	5.91	4.13	2.83	2.133	2.128	72	16
mm.	2	50.0	80.0	150.1	104.9	71.9	54.2	54.1	32.7	16

StandardsKITZ 68LL Ball Valve

End to End	KITZ
End Connection	ANSI B1.20.1
Wall Thickness	KITZ

Pressure/TemperatureKITZ 68LL Ball Valve

150 PSI @ 300°F
600 PSI - Non-Shock Cold Water, Oil or Gas
