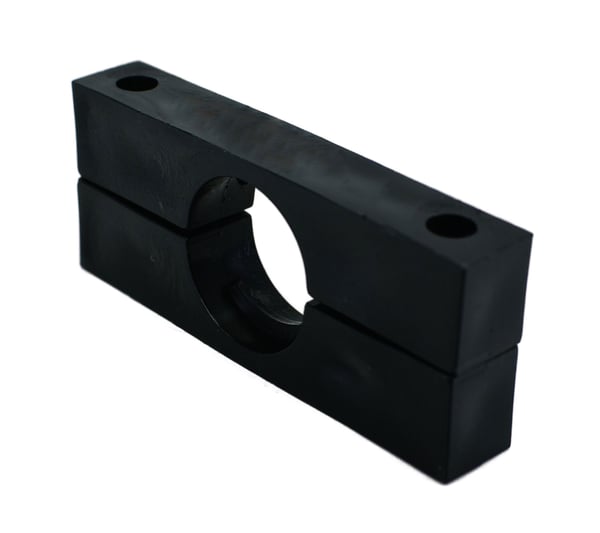

Tc Innovations, Ridgeline Tubing Clamps

Ridgeline Tubing Clamps are crafted using a precision injection molding process to ensure exact dimensions and consistent, high-quality results. Each component reflects the commitment to fine craftsmanship and undergoes a rigorous quality control process, guaranteeing our customers receive only the finest American-made parts. Available in a variety of styles and sizes—from 1/4" to 1" tubing - Ridgeline Clamps accommodate both single and multiple tube configurations to meet a wide range of project needs.

Designed for maximum versatility, they can be mounted within or alongside tray systems, or directly to steel members using the following:

Hilti-studs
stud welds
direct bolting
drill and tap
Unistrut.

Engineered to save time and money, these clamps are backed by a 100% customer satisfaction guarantee.

Products
Dimensional Specifications
Additional Specifications

Dimensional Specifications

Dimensional SpecificationsRidgeline Tubing Clamps

Part Number	Use Type	Size	Number Of Holes	Clamp Length	Clamp Width	Clamp Heith	NOTES
TLPC-4-1-ST2V2	Tubing	1/4"	1	1.8125"	0.625"	1.00"	NOTE 1
TLPC-4-4-ST4V2	Tubing	1/4"	4	3.75"	0.625"	1.00"	NOTE 1
TLPC-4-8-ST6V2	Tubing	1/4"	8	5.75"	0.625"	1.00"	NOTE 1
TLPC-6-1-ST2V2	Tubing	3/8"	1	1.8125"	0.625"	1.00"	NOTE 1
TLPC-6-3-ST4V2	Tubing	3/8"	3	3.75"	0.625"	1.00"	NOTE 1
TLPC-6-6-ST6V2	Tubing	3/8"	6	5.75"	0.625"	1.00"	NOTE 1
TLPC-8-1-ST2V2	Tubing	1/2"	1	1.8125"	0.625"	1.00"	NOTE 1
TLPC-8-2	Tubing	1/2"	2	2.75"	0.625"	1.00"
TLPC-8-3-ST4V2	Tubing	1/2"	3	3.75"	0.625"	1.00"	NOTE 1
TLPC-8-5-ST6V2	Tubing	1/2"	5	5.75"	0.625"	1.00"	NOTE 1
TLPC-6-1-8-2-ST4V2	Tubing	3/8" & 1/2"	1 & 2	3.75"	0.625"	1.00"	NOTE 1
TLPC-6-2-8-3-ST6V2	Tubing	3/8" & 1/2"	2 & 3	5.75"	0.625"	1.00"	NOTE 1
TLPC-9-1-ST2V2	Tubing	9/16"	1 & 1	1.8125"	0.625"	1.00"	NOTE 1
TLPC-9-3-ST4V2	Tubing	9/16"	3	3.75"	0.625"	1.50"	NOTE 1
TLPC-9-5-ST6V2	Tubing	9/16"	5	5.75"	0.625"	1.50"	NOTE 1
TLPC-12-1-ST4V2	Tubing	3/4"	1	3.75"	0.625"	2.00"	NOTE 1
TLPC-12-2-ST4V2	Tubing	3/4"	2	3.75"	0.625"	2.00"	NOTE 1
TLPC-12-4-ST6V2	Tubing	3/4"	4	5.75"	0.625"	2.00"	NOTE 1
TLPC-16-1-ST4V2	Tubing	1"	1	3.75"	0.625"	2.00"	NOTE 1
TLPC-16-3-ST6V2	Tubing	1"	3	5.75"	0.625"	2.00"	NOTE 1
TLPC-4-2	Tubing	1/4"	2	2.00"	0.625"	1.00"
TLPC-4-4	Tubing	1/4"	4	2.75"	0.625"	1.00"
TLPC-4-6	Tubing	1/4"	6	3.625"	0.625"	1.00"
TLPC-4-8	Tubing	1/4"	8	4.50"	0.625"	1.00"
TLPC-4-10	Tubing	1/4"	10	5.25"	0.625"	1.00"
TCI-8PS	IPS Pipe	1/2"	1	2.50"	0.625"	1.50"
TCI-12EMT	EMT Conduit	3/4"	1	2.50"	0.625"	1.50"
TCI-12PS	IPS Pipe	3/4"	1	2.75"	0.625"	1.75"
TCI-16PS	IPS Pipe	1"	1	3.00"	0.625"	2.00"
TCI-24PS	IPS Pipe	1-1/2"	1	4.00"	1.00"	2.75"
TCI-32PS	IPS Pipe	2"	1	4.50"	1.00"	3.25"

NOTE 1 : DESIGNED TO FIT THE TECHLINE V2 TRAY BOLT HOLE PATTERN
