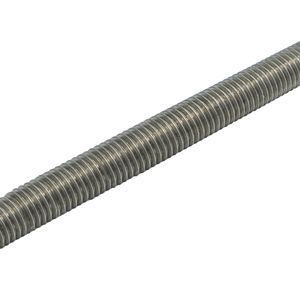

3/8-16 X 12 ft 316 Stainless Steel All Thread Rod

Selected 316 Stainless Steel All Thread RodB8M and 316 SS All Thread Rod
316 Stainless Steel All Thread RodB8M and 316 SS All Thread Rod

Product Specification

Diameter
3/8
Length
12 FT
Grade
316 Stainless Steel
With Nut?
Bolt Only
Material
Stainless Steel
Finish
None
Country of Origin
Unrestricted Origin
Weight
0.296223

Chemical Properties

Per ASTM A193/A193M-16 (1)
Grade Material Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel Molybdenum
% by weight % by weight % by weight % by weight % by weight % by weight % by weight % by weight
B8M 316 Stainless Steel 0.08 max 2.00 max 0.045 max 0.030 max 1.00 max 16.0-18.0 10.0-14.0 2.00-3.00
  1. 1. Only applies to B8M as specified in the "Grade" column below.
Per ASTM 320/A320M-15a (1)
Grade Material Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel Molybdenum
% by weight % by weight % by weight % by weight % by weight % by weight % by weight % by weight
B8M 316 Stainless Steel 0.08 max 2.00 max 0.045 max 0.030 max 1.00 max 16.0-18.0 10.0-14.0 2.00-3.00
  1. 1. Only applies to B8M as specified in the "Grade" column below.

Governing Standards

ASTM A193 (1) Covers alloy and stainless steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
ASME B18.31.3 Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.
  1. 1. Only applies to B8M as specified in the "Grade" column below.
ASTM A320 (1) Covers alloy steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for low-temperature service.
ASME B18.31.3 Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.
  1. 1. Only applies to B8M as specified in the "Grade" column below.

Mechanical Properties

AISI 316 Stainless Steel, Carbide Solution Treated Per ASTM A193/A193M-16 (1)
Grade Material Tensile
Strength		 Yield Strength,
0.2% offset		 Elongation
in 4D		 Reduction
of Area		 Hardness
Min ksi Min ksi Min % Min % Max
B8M 316 Stainless Steel 75 30 30 50 223 HBW or 96 HRB (2)
  1. 1. Only applies to B8M as specified in the "Grade" column below.
  2. 2. For sizes 3⁄4 in. in diameter and smaller, a maximum hardness of 241 HBW (100 HRB) is permitted.
AISI 316 Stainless Steel, Carbide Solution Treated Per ASTM A320/A320M-15a (1)
Grade Material Tensile
Strength		 Yield Strength,
0.2% offset		 Elongation in
2 in. or 50 mm		 Reduction
of Area		 Hardness
Min ksi Min ksi Min % Min % Max
B8M 316 Stainless Steel 75 30 30 50 223 HBW or 96 HRB (2)
  1. 1. Only applies to B8M as specified in the "Grade" column below.
  2. 2. For sizes 3⁄4 in. in diameter and smaller, a maximum hardness of 241 HBW (100 HRB) is permitted.
