9/16 316 Stainless Steel Commercial Flat Washer

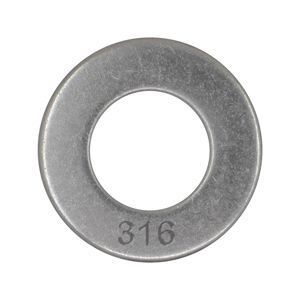

Selected 316 Stainless Steel SAE Flat WasherWashers
316 Stainless Steel SAE Flat WasherWashers

Product Specification

Grade
316 Stainless Steel
Finish
None
Inside Diameter
0.6250
Outside Diameter
1.3750
Thickness
0.0780
Weight
0.022570
Diameter
9/16

Dimensional Specifications

316 stainless steel flat washer dimensions
Per ASME B18.21.1-2009
Size Nominal A B C
Inside
Diameter		 Outside
Diameter		 Mean Section
Thickness
#4 0.1120 0.1150 0.3125 0.0310
#6 0.1380 0.1563 0.3750 0.0310
#8 0.1640 0.1719 0.3750 0.0310
#10 0.1900 0.2031 0.3750 0.0500
#12 0.2160 0.2500 0.5625 0.0500
1/4 0.2500 0.2810 0.6250 0.0500
5/16 0.3125 0.3430 0.7500 0.0500
3/8 0.3750 0.4060 0.8750 0.0500
7/16 0.4375 0.5000 1.1250 0.0620
1/2 0.5000 0.5310 1.2500 0.0620
9/16 0.5625 0.6250 1.3750 0.0780
5/8 0.6250 0.6870 1.5000 0.0780
3/4 0.7500 0.8120 1.8750 0.1090
7/8 0.8750 0.9370 2.0000 0.1090
1 1.0000 1.0620 2.0000 0.1250
1 1/8 1.1250 1.1870 2.5000 0.1250
1 1/4 1.2500 1.3120 2.7500 0.1250
1 3/8 1.3750 1.5000 3.2500 0.1400
1 1/2 1.5000 1.5620 3.2500 0.1400
1 3/4 1.7500 1.8120 3.5000 0.1400
2 2.0000 2.1250 4.0000 0.1870
  1. All dimensions are in inches.

Governing Standards

ASME B18.21.1 Covers the dimensional requirements, physical properties, and related test methods for helical spring-lock washers (#0 through 3 inches), tooth-lock washers (#2 through 1 ¼ inches), and plain washers (#0 through 3 inches).
