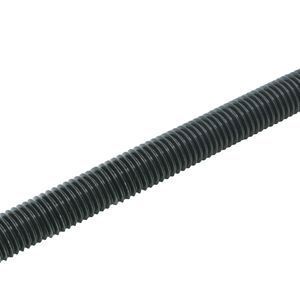

1 1/2-6 X 12 Ft F1554 Grade 55 Weldable All Thread Rod
1 1/2-6 X 12 Ft F1554 Grade 55 Weldable All Thread Rod
Item #: RG2B150F1554-U
Manufacturers:
Product Specification
| Diameter | 1 1/2 |
|---|---|
| Length | 12 FT |
| Grade | Grade 55 |
| With Nut? | Bolt Only |
| Material | Steel |
| Finish | Black |
| Country of Origin | Domestic |
| Weight | 5.122000 |
Mechanical Properties
| High strength, low alloy, 55 ksi yield steel | Per ASTM F1554-15 | ||||
| Grade | Tensile Strength |
Yield Strength, 0.2% offset |
Elongation in 8 in. (1) |
Elongation in 2 in. (1) |
Reduction in Area |
| ksi | Min ksi | Min % | Min % | Min % | |
| 55 | 75-95 | 55 | 18 | 21 | 30 |
- 1. Elongation in 8 in. applies to bars. Elongation in 2 in. applies to machined specimens.
Governing Standards
| ASTM F1554 | Covers straight, bent, headed, and headless anchor bolts (also known as anchor rods) made of carbon, medium carbon boron, alloy, or high-strength lowalloy steel. |
| ASME B18.31.3 | Covers the general and dimensional data for inch series threaded rods. |
| ASME B1.1 UNC & UNF Class 2A | Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads. |
Chemical Properties
| Per ASTM F1554-15 | |||
| Grade | Phosphorus | Sulfur | Copper (when specified) |
| % by weight | % by weight | % by weight | |
| 55 | 0.04 max | 0.05 max | 0.20 min |
