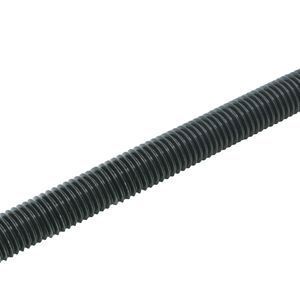

F1554 Grade 55 All Thread Rod
F1554 Grade 55 All Thread Rod
Manufacturers:
ASTM F1554 Grade 55 all thread rod is a designed strength, low to medium carbon content grade. It has a 55 ksi yield strength which is required by the F1554 specification for anchor bolt and fastener applications. Dimensional specifications are governed by ASME B18.31.3. ASTM F1554 covers the mechanical and material properties of steel anchor bolts having a yield strength of 36, 55 and 105 ksi. Anchor bolts are used to anchor a structure to a concrete foundation. They are embedded in concrete and have a threaded portion which projects from the concrete. The embedded portion of the anchor bolt creates resistance to prevent the anchor from pulling out of the concrete when a load is applied.
Products
Mechanical Properties
| High strength, low alloy, 55 ksi yield steel | Per ASTM F1554-15 | ||||
| Grade | Tensile Strength |
Yield Strength, 0.2% offset |
Elongation in 8 in. (1) |
Elongation in 2 in. (1) |
Reduction in Area |
| ksi | Min ksi | Min % | Min % | Min % | |
| 55 | 75-95 | 55 | 18 | 21 | 30 |
- 1. Elongation in 8 in. applies to bars. Elongation in 2 in. applies to machined specimens.
Governing Standards
| ASTM F1554 | Covers straight, bent, headed, and headless anchor bolts (also known as anchor rods) made of carbon, medium carbon boron, alloy, or high-strength lowalloy steel. |
| ASME B18.31.3 | Covers the general and dimensional data for inch series threaded rods. |
| ASME B1.1 UNC & UNF Class 2A | Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads. |
Chemical Properties
| Per ASTM F1554-15 | |||
| Grade | Phosphorus | Sulfur | Copper (when specified) |
| % by weight | % by weight | % by weight | |
| 55 | 0.04 max | 0.05 max | 0.20 min |
