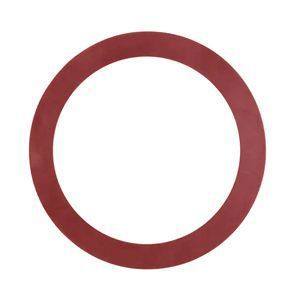

16 150# 1/16 Red Rubber 75 Durometer +/- 5 Ring Gasket
16 150# 1/16 Red Rubber 75 Durometer +/- 5 Ring Gasket
Item #: GR100R-1501600
Manufacturers:
Product Specification
| Pipe Diameter | 16 |
|---|---|
| Flange Rating | 150# |
| Full Face or Ring | Ring |
| Inside Diameter | 16.0000 |
| Outside Diameter | 20.2500 |
| Thickness | 1/16 |
| Sheet Material | Red Rubber 75 Duro |
| Material | Red Rubber |
| Country of Origin | Unrestricted Origin |
| Weight | 0.336068 |
Dimensional Specifications
| Per ASME B16.21-2016 | |||||||||||||||||||||
| Pipe Diameter | |||||||||||||||||||||
| 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | ||
| Inside Diameter | 0.84 | 1.06 | 1.31 | 1.66 | 2.38 | 2.38 | 2.88 | 3.50 | 4.00 | 4.50 | 5.56 | 6.63 | 8.63 | 10.75 | 12.75 | 14.00 | 16.00 | 18.00 | 20.00 | 24.00 | |
| Outside Diameter per Class |
150# | 1.88 | 2.25 | 2.62 | 3.00 | 3.38 | 4.12 | 4.88 | 5.38 | 6.38 | 6.88 | 7.75 | 8.75 | 11.00 | 13.38 | 16.13 | 17.75 | 20.25 | 21.62 | 23.88 | 28.25 |
| 300# | 2.12 | 2.62 | 2.88 | 3.25 | 3.75 | 4.38 | 5.12 | 5.88 | 6.50 | 7.12 | 8.50 | 9.88 | 12.12 | 14.25 | 16.62 | 19.12 | 21.25 | 23.50 | 25.75 | 30.50 | |
| 600# | 2.12 | 2.62 | 2.88 | 3.25 | 3.75 | 4.38 | 5.12 | 5.88 | 6.38 | 7.62 | 9.50 | 10.50 | 12.62 | 15.75 | 18.00 | 19.38 | 22.25 | 24.12 | 26.88 | 31.12 | |
| Per ASME B16.47-2017 | |||||||||||||||||||
| Series A | Pipe Diameter | ||||||||||||||||||
| 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | ||
| Inside Diameter | 26.00 | 28.00 | 30.00 | 32.00 | 34.00 | 36.00 | 38.00 | 40.00 | 42.00 | 44.00 | 46.00 | 48.00 | 50.00 | 52.00 | 54.00 | 56.00 | 58.00 | 60.00 | |
| Outside Diameter per Class |
150# | 30.50 | 32.75 | 34.75 | 37.00 | 39.00 | 41.25 | 43.75 | 45.75 | 48.00 | 50.25 | 52.25 | 54.50 | 56.50 | 58.75 | 61.00 | 63.25 | 65.50 | 67.50 |
| 300# | 32.88 | 35.38 | 37.50 | 39.62 | 41.62 | 44.00 | 41.50 | 43.88 | 45.88 | 48.00 | 50.12 | 52.12 | 54.25 | 56.25 | 58.75 | 60.75 | 62.75 | 64.75 | |
| 600# | 34.12 | 36.00 | 38.25 | 40.25 | 42.25 | 44.50 | 43.50 | 45.50 | 48.00 | 50.00 | 52.26 | 54.75 | 57.00 | 59.00 | 61.25 | 63.50 | 65.50 | 67.75 | |
| Per ASME B16.47-2017 | |||||||||||||||||||
| Series B | Pipe Diameter | ||||||||||||||||||
| 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | ||
| Inside Diameter | 26.00 | 28.00 | 30.00 | 32.00 | 34.00 | 36.00 | 38.00 | 40.00 | 42.00 | 44.00 | 46.00 | 48.00 | 50.00 | 52.00 | 54.00 | 56.00 | 58.00 | 60.00 | |
| Outside Diameter per Class |
150# | 28.56 | 30.56 | 32.56 | 34.69 | 36.81 | 38.88 | 41.12 | 43.12 | 45.12 | 47.12 | 49.44 | 51.44 | 53.44 | 55.44 | 57.62 | 59.62 | 62.19 | 64.19 |
| 300# | 30.38 | 32.50 | 34.88 | 37.00 | 39.12 | 41.25 | 43.25 | 45.25 | 47.25 | 49.25 | 51.88 | 53.88 | 55.88 | 57.88 | 61.25 | 62.75 | 65.19 | 67.12 | |
| 600# | 30.12 | 32.25 | 34.62 | 36.75 | 39.25 | 41.25 | |||||||||||||
- All dimensions are in inches.
Governing Standards
| ASME B16.21 | Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets. |
| ASME B16.47 | Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units. |
Physical Properties
| Typical Physical Properties: | |||||
| Dimension | 1/8" | ||||
| Hardness (shore A) | 75 +/- 5 | ||||
| Density (g/cm3) | 1.70 | ||||
| Tensile Strength (mpa) | 2.50 | ||||
| Elongation (%) | 180 | ||||
| Temperature | -22F to 212F (-30C to 100C) | ||||
