6 600# 1/8 Teadit 1076 Non-Asbestos Ring Gasket

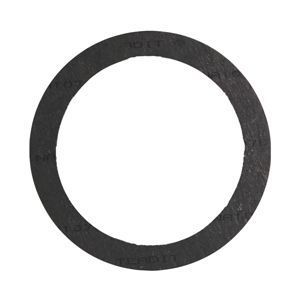

Selected Teadit NA1076 Compressed Sheet With Aramid Fibers Neoprene Binder Full Face GasketTeadit 1076 Ring Gasket
Teadit NA1076 Compressed Sheet With Aramid Fibers Neoprene Binder Full Face GasketTeadit 1076 Ring Gasket

Product Specification

Pipe Diameter
6
Flange Rating
600#
Full Face or Ring
Ring
Inside Diameter
6.6250
Outside Diameter
10.5000
Thickness
1/8
Filler/Binder Material
Neoprene Rubber (CR)
Sheet Material
Teadit NA 1076
Material
Aramid Fiber
Country of Origin
Unrestricted Origin
Weight
0.399636

Physical Properties

Typical Physical Properties:
Color Black
Density 106 lb/ft^3 (1.70 g/cm^3)
Compressibility - ASTM F36 J 7-17%
Recovery - ASTM F36 J 46%
Creep Relaxation - ASTM F38 20%
Thickness Increase - ASTM F146 - After 5hr
ASTM IRM 903 @ 300F (150C) ≤30%
ASTM Fuel B @ 77F (25C) ≤20%
Weight Increase - ASTM F146 - After 5hr
Fuel B @ 77F (25C) ≤20%
Tensile Strength Across Grain 1740 psi

Service Limits

Temperature Continuous Service: 392F (200C)
Maximum Service: 698F (370C)
Pressure Vacuum to 725 psi (50 bar)
ASTM Line
Call Out		 F104-F712120-B4E99M9

Dimensional Specifications

Per ASME B16.21-2016
  Pipe Diameter
1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8 10 12 14 16 18 20 24
Inside Diameter 0.84 1.06 1.31 1.66 2.38 2.38 2.88 3.50 4.00 4.50 5.56 6.63 8.63 10.75 12.75 14.00 16.00 18.00 20.00 24.00
Outside
Diameter
per Class		 150# 1.88 2.25 2.62 3.00 3.38 4.12 4.88 5.38 6.38 6.88 7.75 8.75 11.00 13.38 16.13 17.75 20.25 21.62 23.88 28.25
300# 2.12 2.62 2.88 3.25 3.75 4.38 5.12 5.88 6.50 7.12 8.50 9.88 12.12 14.25 16.62 19.12 21.25 23.50 25.75 30.50
600# 2.12 2.62 2.88 3.25 3.75 4.38 5.12 5.88 6.38 7.62 9.50 10.50 12.62 15.75 18.00 19.38 22.25 24.12 26.88 31.12
Per ASME B16.47-2017
Series A Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class		 150# 30.50 32.75 34.75 37.00 39.00 41.25 43.75 45.75 48.00 50.25 52.25 54.50 56.50 58.75 61.00 63.25 65.50 67.50
300# 32.88 35.38 37.50 39.62 41.62 44.00 41.50 43.88 45.88 48.00 50.12 52.12 54.25 56.25 58.75 60.75 62.75 64.75
600# 34.12 36.00 38.25 40.25 42.25 44.50 43.50 45.50 48.00 50.00 52.26 54.75 57.00 59.00 61.25 63.50 65.50 67.75
Per ASME B16.47-2017
Series B Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class		 150# 28.56 30.56 32.56 34.69 36.81 38.88 41.12 43.12 45.12 47.12 49.44 51.44 53.44 55.44 57.62 59.62 62.19 64.19
300# 30.38 32.50 34.88 37.00 39.12 41.25 43.25 45.25 47.25 49.25 51.88 53.88 55.88 57.88 61.25 62.75 65.19 67.12
600# 30.12 32.25 34.62 36.75 39.25 41.25
  1. All dimensions are in inches.

Governing Standards

ASME B16.21 Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47 Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.
