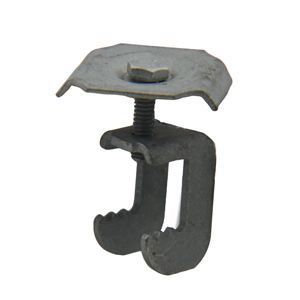

G Clip Grating Clip Hot Dipped GalvanizedGrating Fasteners
G-Clip Model GG galvanized grating clips fastens grating to a horizontal-facing steel structural member edge. G-Clip describes an assembly of fastener parts, each containing three common parts. First is a G-Clips unique top for better holding strength. Second, a G-Clips patented bottom connects to the beam underside. A hex head cap screw connects the two, and its length suits the grating height being installed.

Products

Product Information

G-Clip

Grating
Height		 Structural Member Flange Thickness
1/4 to 3/4" 3/4 to 1 1/4" 1 1/4 to 1 3/4" 1 3/4 to 2 1/4"
1 GG1A GG2A GG3A GG4A
1 1/4 GG1B GG2B GG3B GG4B
1 1/2 GG1C GG2C GG3C GG4C
1 3/4 GG1D GG2D GG3D GG4D
2 GG1E GG2E GG3E GG4E
