7/16 Split Lock Washer, Galvanized

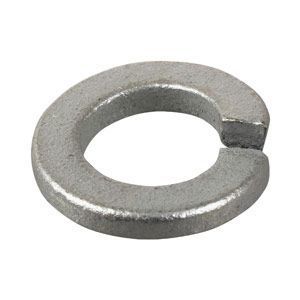

Selected Split Helical Lock Washer Hot Dipped GalvanizedSplit Lock Washer, Galvanized
Split Helical Lock Washer Hot Dipped GalvanizedSplit Lock Washer, Galvanized

Product Specification

Diameter
7/16
Grade
Grade 2, Carbon Steel
Inside Diameter
0.4400
Outside Diameter
0.7760
Thickness
0.1090
Material
Steel
Finish
Hot Dipped Galvanized
Country of Origin
Unrestricted Origin
Weight
0.009447

Dimensional Specifications

Split Lock Washer dimensions
Per ASME B18.21.1-2009
Size Nominal A B T W BW
Inside
Diameter		 Outside
Diameter		 Mean Section
Thickness		 Section
Width		 Bearing
Width
Max Min Max Min Min Min
1/4 0.2500 0.2600 0.2520 0.4870 0.0620 0.1090 0.0760
5/16 0.3125 0.3220 0.3140 0.5830 0.0780 0.1250 0.0870
3/8 0.3750 0.3850 0.3770 0.6800 0.0940 0.1410 0.0990
7/16 0.4375 0.4500 0.4400 0.7760 0.1090 0.1560 0.1090
1/2 0.5000 0.5120 0.5020 0.8690 0.1250 0.1710 0.1200
9/16 0.5625 0.5740 0.5640 0.9650 0.1410 0.1880 0.1320
5/8 0.6250 0.6410 0.6280 1.0730 0.1560 0.2090 0.1420
3/4 0.7500 0.7660 0.7530 1.2650 0.1880 0.2340 0.1640
7/8 0.8750 0.8940 0.8780 1.4590 0.2190 0.2660 0.1860
1 1.0000 1.0240 1.0030 1.6560 0.2500 0.2970 0.2080
1 1/8 1.1250 1.1530 1.1290 1.8470 0.2810 0.3280 0.2300
1 1/4 1.2500 1.2800 1.2540 2.0360 0.3120 0.3590 0.2510
1 3/8 1.3750 1.4080 1.3790 2.2190 0.3440 0.3910 0.2740
1 1/2 1.5000 1.5340 1.5040 2.4190 0.3750 0.4220 0.2950
1 5/8 1.6250 1.6630 1.6330 2.5530 0.3890 0.4240 0.2970
1 3/4 1.7500 1.7890 1.7580 2.6790 0.3890 0.4240 0.2970
1 7/8 1.8750 1.9140 1.8830 2.8110 0.4220 0.4270 0.2990
2 2.0000 2.0390 2.0080 2.9360 0.4220 0.4270 0.2990
2 1/4 2.2500 2.2930 2.2620 3.2210 0.4400 0.4420 0.3090
2 1/2 2.5000 2.5430 2.5120 3.4710 0.4400 0.4420 0.3090
2 3/4 2.7500 2.7930 2.7620 3.8240 0.4580 0.4910 0.3440
3 3.0000 3.0430 3.0120 4.0740 0.4580 0.4910 0.3440
  1. All dimensions are in inches.

Governing Standards

ASME B18.21.1 Covers the dimensional requirements, physical properties, and related test methods for helical spring-lock washers (#0 through 3 inches), tooth-lock washers (#2 through 1 ¼ inches), and plain washers (#0 through 3 inches).
