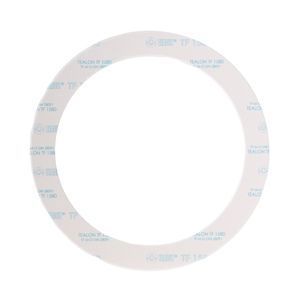

3/4 300#/400#/600# 1/16 Teadit Tealon 1580 Ring Gasket
3/4 300#/400#/600# 1/16 Teadit Tealon 1580 Ring Gasket
Item #: GR1580-3460075
Manufacturers:
Product Specification
| Pipe Diameter | 3/4 |
|---|---|
| Flange Rating | 400#, 600#, 300# |
| Full Face or Ring | Ring |
| Inside Diameter | 1.0625 |
| Outside Diameter | 2.6250 |
| Thickness | 1/16 |
| Filler/Binder Material | Barium Sulphate |
| Sheet Material | Teadit TF 1580 |
| Material | PTFE - Restructured |
| Country of Origin | Unrestricted Origin |
| Weight | 0.022479 |
Service Limits
| Temperature | Minimum Service: -450F (-268C) | |
| Maximum Service: 500F (260C) | ||
| Pressure | Maximum Service: 1200 psi (83 bar) | |
| pH | 0-14 | |
Governing Standards
| ASME B16.21 | Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets. |
| ASME B16.47 | Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units. |
Physical Properties
| Typical Physical Properties: | |||
| Color | Off-White | ||
| Compressibility 5000 psi - ASTM F36M | 4-10% | ||
| Recovery - ASTM F36M | 40% | ||
| Tensile Strength - ASTM F152 | 2030 psi (14 N/ mm^2) | ||
| Specific Gravity - ASTM D792 | 2.90 g/cm^3 | ||
| Creep Relaxation - ASTM F38B | 15% | ||
| Sealability - ASTM F37A | 0.04 ml/ h | ||
| Sealability - DIN 3535 | <.015 cm^3 / min | ||
Dimensional Specifications
| Per ASME B16.21-2016 | |||||||||||||||||||||
| Pipe Diameter | |||||||||||||||||||||
| 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | ||
| Inside Diameter | 0.84 | 1.06 | 1.31 | 1.66 | 2.38 | 2.38 | 2.88 | 3.50 | 4.00 | 4.50 | 5.56 | 6.63 | 8.63 | 10.75 | 12.75 | 14.00 | 16.00 | 18.00 | 20.00 | 24.00 | |
| Outside Diameter per Class |
150# | 1.88 | 2.25 | 2.62 | 3.00 | 3.38 | 4.12 | 4.88 | 5.38 | 6.38 | 6.88 | 7.75 | 8.75 | 11.00 | 13.38 | 16.13 | 17.75 | 20.25 | 21.62 | 23.88 | 28.25 |
| 300# | 2.12 | 2.62 | 2.88 | 3.25 | 3.75 | 4.38 | 5.12 | 5.88 | 6.50 | 7.12 | 8.50 | 9.88 | 12.12 | 14.25 | 16.62 | 19.12 | 21.25 | 23.50 | 25.75 | 30.50 | |
| 600# | 2.12 | 2.62 | 2.88 | 3.25 | 3.75 | 4.38 | 5.12 | 5.88 | 6.38 | 7.62 | 9.50 | 10.50 | 12.62 | 15.75 | 18.00 | 19.38 | 22.25 | 24.12 | 26.88 | 31.12 | |
| Per ASME B16.47-2017 | |||||||||||||||||||
| Series A | Pipe Diameter | ||||||||||||||||||
| 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | ||
| Inside Diameter | 26.00 | 28.00 | 30.00 | 32.00 | 34.00 | 36.00 | 38.00 | 40.00 | 42.00 | 44.00 | 46.00 | 48.00 | 50.00 | 52.00 | 54.00 | 56.00 | 58.00 | 60.00 | |
| Outside Diameter per Class |
150# | 30.50 | 32.75 | 34.75 | 37.00 | 39.00 | 41.25 | 43.75 | 45.75 | 48.00 | 50.25 | 52.25 | 54.50 | 56.50 | 58.75 | 61.00 | 63.25 | 65.50 | 67.50 |
| 300# | 32.88 | 35.38 | 37.50 | 39.62 | 41.62 | 44.00 | 41.50 | 43.88 | 45.88 | 48.00 | 50.12 | 52.12 | 54.25 | 56.25 | 58.75 | 60.75 | 62.75 | 64.75 | |
| 600# | 34.12 | 36.00 | 38.25 | 40.25 | 42.25 | 44.50 | 43.50 | 45.50 | 48.00 | 50.00 | 52.26 | 54.75 | 57.00 | 59.00 | 61.25 | 63.50 | 65.50 | 67.75 | |
| Per ASME B16.47-2017 | |||||||||||||||||||
| Series B | Pipe Diameter | ||||||||||||||||||
| 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | ||
| Inside Diameter | 26.00 | 28.00 | 30.00 | 32.00 | 34.00 | 36.00 | 38.00 | 40.00 | 42.00 | 44.00 | 46.00 | 48.00 | 50.00 | 52.00 | 54.00 | 56.00 | 58.00 | 60.00 | |
| Outside Diameter per Class |
150# | 28.56 | 30.56 | 32.56 | 34.69 | 36.81 | 38.88 | 41.12 | 43.12 | 45.12 | 47.12 | 49.44 | 51.44 | 53.44 | 55.44 | 57.62 | 59.62 | 62.19 | 64.19 |
| 300# | 30.38 | 32.50 | 34.88 | 37.00 | 39.12 | 41.25 | 43.25 | 45.25 | 47.25 | 49.25 | 51.88 | 53.88 | 55.88 | 57.88 | 61.25 | 62.75 | 65.19 | 67.12 | |
| 600# | 30.12 | 32.25 | 34.62 | 36.75 | 39.25 | 41.25 | |||||||||||||
- All dimensions are in inches.
