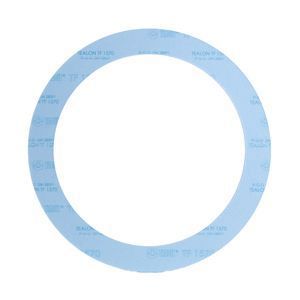

1 150# 1/16 Teadit Tealon 1570 Ring Gasket
1 150# 1/16 Teadit Tealon 1570 Ring Gasket
Item #: GR1570-1500100
Manufacturers:
Product Specification
| Pipe Diameter | 1 |
|---|---|
| Flange Rating | 150# |
| Full Face or Ring | Ring |
| Inside Diameter | 1.3125 |
| Outside Diameter | 2.6250 |
| Thickness | 1/16 |
| Filler/Binder Material | Glass Micro Spheres |
| Sheet Material | Teadit TF 1570 |
| Material | PTFE - Restructured |
| Country of Origin | Unrestricted Origin |
| Weight | 0.020162 |
Physical Properties
| Typical Physical Properties: | |||
| Color | Blue | ||
| Compressibility - ASTM F36 M | 25-40% | ||
| Recovery - ASTM F36 M | 30% | ||
| Tensile Strength - ASTM F152 | 2030 psi (14 N/mm^2) | ||
| Specific Gravity - ASTM 0792 | 1.70 g /cm^3 | ||
| Creep Relaxation - ASTM F38 | 40% | ||
| Sealability - ASTM F37 A | 0.12ml/h | ||
| Sealability - DIN 3535 | <.015 cm^3 / min | ||
Service Limits
| Temperature | Minimum Service: -450F (-268C) | |
| Maximum Service: 500F (260C) | ||
| Pressure | Maximum Service: 800 psi (55 bar) | |
| pH | 0-14 | |
Dimensional Specifications
| Per ASME B16.21-2016 | |||||||||||||||||||||
| Pipe Diameter | |||||||||||||||||||||
| 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | ||
| Inside Diameter | 0.84 | 1.06 | 1.31 | 1.66 | 2.38 | 2.38 | 2.88 | 3.50 | 4.00 | 4.50 | 5.56 | 6.63 | 8.63 | 10.75 | 12.75 | 14.00 | 16.00 | 18.00 | 20.00 | 24.00 | |
| Outside Diameter per Class |
150# | 1.88 | 2.25 | 2.62 | 3.00 | 3.38 | 4.12 | 4.88 | 5.38 | 6.38 | 6.88 | 7.75 | 8.75 | 11.00 | 13.38 | 16.13 | 17.75 | 20.25 | 21.62 | 23.88 | 28.25 |
| 300# | 2.12 | 2.62 | 2.88 | 3.25 | 3.75 | 4.38 | 5.12 | 5.88 | 6.50 | 7.12 | 8.50 | 9.88 | 12.12 | 14.25 | 16.62 | 19.12 | 21.25 | 23.50 | 25.75 | 30.50 | |
| 600# | 2.12 | 2.62 | 2.88 | 3.25 | 3.75 | 4.38 | 5.12 | 5.88 | 6.38 | 7.62 | 9.50 | 10.50 | 12.62 | 15.75 | 18.00 | 19.38 | 22.25 | 24.12 | 26.88 | 31.12 | |
| Per ASME B16.47-2017 | |||||||||||||||||||
| Series A | Pipe Diameter | ||||||||||||||||||
| 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | ||
| Inside Diameter | 26.00 | 28.00 | 30.00 | 32.00 | 34.00 | 36.00 | 38.00 | 40.00 | 42.00 | 44.00 | 46.00 | 48.00 | 50.00 | 52.00 | 54.00 | 56.00 | 58.00 | 60.00 | |
| Outside Diameter per Class |
150# | 30.50 | 32.75 | 34.75 | 37.00 | 39.00 | 41.25 | 43.75 | 45.75 | 48.00 | 50.25 | 52.25 | 54.50 | 56.50 | 58.75 | 61.00 | 63.25 | 65.50 | 67.50 |
| 300# | 32.88 | 35.38 | 37.50 | 39.62 | 41.62 | 44.00 | 41.50 | 43.88 | 45.88 | 48.00 | 50.12 | 52.12 | 54.25 | 56.25 | 58.75 | 60.75 | 62.75 | 64.75 | |
| 600# | 34.12 | 36.00 | 38.25 | 40.25 | 42.25 | 44.50 | 43.50 | 45.50 | 48.00 | 50.00 | 52.26 | 54.75 | 57.00 | 59.00 | 61.25 | 63.50 | 65.50 | 67.75 | |
| Per ASME B16.47-2017 | |||||||||||||||||||
| Series B | Pipe Diameter | ||||||||||||||||||
| 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | ||
| Inside Diameter | 26.00 | 28.00 | 30.00 | 32.00 | 34.00 | 36.00 | 38.00 | 40.00 | 42.00 | 44.00 | 46.00 | 48.00 | 50.00 | 52.00 | 54.00 | 56.00 | 58.00 | 60.00 | |
| Outside Diameter per Class |
150# | 28.56 | 30.56 | 32.56 | 34.69 | 36.81 | 38.88 | 41.12 | 43.12 | 45.12 | 47.12 | 49.44 | 51.44 | 53.44 | 55.44 | 57.62 | 59.62 | 62.19 | 64.19 |
| 300# | 30.38 | 32.50 | 34.88 | 37.00 | 39.12 | 41.25 | 43.25 | 45.25 | 47.25 | 49.25 | 51.88 | 53.88 | 55.88 | 57.88 | 61.25 | 62.75 | 65.19 | 67.12 | |
| 600# | 30.12 | 32.25 | 34.62 | 36.75 | 39.25 | 41.25 | |||||||||||||
- All dimensions are in inches.
Governing Standards
| ASME B16.21 | Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets. |
| ASME B16.47 | Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units. |
