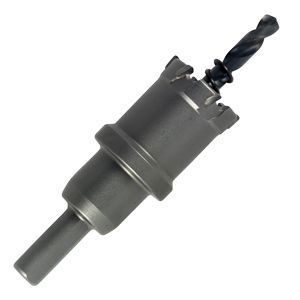

1 7/8" Hole Cutter, Carbide Tipped, 1" Depth
1 7/8" Hole Cutter, Carbide Tipped, 1" Depth
Item #: DCTC1 7/8-CT7
Manufacturers:
Product Specification
| Depth of Cut | 1 |
|---|---|
| Shank Type | Straight |
| Material | Carbide Tipped |
| Country of Origin | European |
| Weight | 0.500000 |
| Size | 1 7/8 |
Dimensional Specifications
| Part# | Diameter | Cutting Depth |
Shank |
| DCTC9/16-CT7 | 9/16" | 1" | 3/8" |
| DCTC5/8-CT7 | 5/8" | 1" | 3/8" |
| DCTC11/16-CT7 | 11/16" | 1" | 3/8" |
| DCTC3/4-CT7 | 3/4" | 1" | 3/8" |
| DCTC13/16-CT7 | 13/16" | 1" | 3/8" |
| DCTC7/8-CT7 | 7/8" | 1" | 3/8" |
| DCTC15/16-CT7 | 15/16" | 1" | 3/8" |
| DCTC1-CT7 | 1" | 1" | 3/8" |
| DCTC1 1/16-CT7 | 1 1/16" | 1" | 3/8" |
| DCTC1 1/8-CT7 | 1 1/8" | 1" | 3/8" |
| DCTC1 1/4-CT7 | 1 1/4" | 1" | 3/8" |
| DCTC1 3/8-CT7 | 1 3/8" | 1" | 3/8" |
| DCTC1 7/16-CT7 | 1 7/16" | 1" | 3/8" |
| DCTC1 1/2-CT7 | 1 1/2" | 1" | 3/8" |
| DCTC1 5/8-CT7 | 1 5/8" | 1" | 3/8" |
| DCTC1 11/16-CT7 | 1 11/16" | 1" | 3/8" |
| DCTC1 3/4-CT7 | 1 3/4" | 1" | 3/8" |
| DCTC1 7/8-CT7 | 1 7/8" | 1" | 3/8" |
| DCTC2-CT7 | 2" | 1" | 3/8" |
| DCTC2 1/8-CT7 | 2 1/8" | 1" | 3/8" |
| DCTC2 1/4-CT7 | 2 1/4" | 1" | 3/8" |
| DCTC2 1/2-CT7 | 2 1/2" | 1" | 3/8" |
| DCTC3-CT7 | 3" | 1" | 3/8" |
| DCTC3 1/4-CT7 | 3 1/4" | 1" | 1/2" |
| DCTC3 1/2-CT7 | 3 1/2" | 1" | 1/2" |
| DCTC3 3/4-CT7 | 3 3/4" | 1" | 1/2" |
| DCTC4 1/8-CT7 | 4 1/8" | 1" | 1/2" |
- All dimensions are in inches.
Operating Guidelines
1. Start cutting with pilot drill to center location of the hole
2. When pilot drill is close to breaking through material, ease up on feed pressure - this will minimize the impact of the carbide teeth when they meet the material being drilled and prevent tool breakage
3. Drill large diameter hole using correct speeds and feeds
USE THESE CUTTERS IN ROTARY MODE ONLY - IMPACT MODE WILL DAMAGE CUTTER
