2 300#/400#/600# 1/8 Teadit 1081 Non-Asbestos Ring Gasket

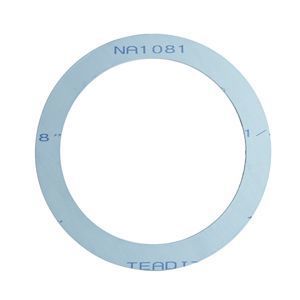

Selected Teadit 1081 Blue Nitrile Rubber (NBR) Sheet Ring GasketTeadit 1081 Ring Gasket
Teadit 1081 Blue Nitrile Rubber (NBR) Sheet Ring GasketTeadit 1081 Ring Gasket

Product Specification

Pipe Diameter
2
Flange Rating
300#, 400#, 600#
Full Face or Ring
Ring
Inside Diameter
2.3750
Outside Diameter
4.3800
Thickness
1/8
Filler/Binder Material
Nitrile Rubber (NBR)
Sheet Material
Teadit NA 1081
Material
Kevlar Fiber
Country of Origin
Unrestricted Origin
Weight
0.091953

Dimensional Specifications

Per ASME B16.21-2016
  Pipe Diameter
1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8 10 12 14 16 18 20 24
Inside Diameter 0.84 1.06 1.31 1.66 2.38 2.38 2.88 3.50 4.00 4.50 5.56 6.63 8.63 10.75 12.75 14.00 16.00 18.00 20.00 24.00
Outside
Diameter
per Class		 150# 1.88 2.25 2.62 3.00 3.38 4.12 4.88 5.38 6.38 6.88 7.75 8.75 11.00 13.38 16.13 17.75 20.25 21.62 23.88 28.25
300# 2.12 2.62 2.88 3.25 3.75 4.38 5.12 5.88 6.50 7.12 8.50 9.88 12.12 14.25 16.62 19.12 21.25 23.50 25.75 30.50
600# 2.12 2.62 2.88 3.25 3.75 4.38 5.12 5.88 6.38 7.62 9.50 10.50 12.62 15.75 18.00 19.38 22.25 24.12 26.88 31.12
Per ASME B16.47-2017
Series A Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class		 150# 30.50 32.75 34.75 37.00 39.00 41.25 43.75 45.75 48.00 50.25 52.25 54.50 56.50 58.75 61.00 63.25 65.50 67.50
300# 32.88 35.38 37.50 39.62 41.62 44.00 41.50 43.88 45.88 48.00 50.12 52.12 54.25 56.25 58.75 60.75 62.75 64.75
600# 34.12 36.00 38.25 40.25 42.25 44.50 43.50 45.50 48.00 50.00 52.26 54.75 57.00 59.00 61.25 63.50 65.50 67.75
Per ASME B16.47-2017
Series B Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class		 150# 28.56 30.56 32.56 34.69 36.81 38.88 41.12 43.12 45.12 47.12 49.44 51.44 53.44 55.44 57.62 59.62 62.19 64.19
300# 30.38 32.50 34.88 37.00 39.12 41.25 43.25 45.25 47.25 49.25 51.88 53.88 55.88 57.88 61.25 62.75 65.19 67.12
600# 30.12 32.25 34.62 36.75 39.25 41.25
  1. All dimensions are in inches.

Governing Standards

ASME B16.21 Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47 Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.

Service Limits

Temperature Continuous Service: 500F (260C)
Maximum Service: 752F (400C)
Pressure Continuous Service: 725 psi (50 bar)
Maximum Service: 1595 psi (110 bar)
ASTM Line Call
Out F104		 F712220E23M5

Physical Properties

Typical Physical Properties:
Color Blue
Density 119.5 lb/ft^3 (1.92 g/cm^3)
Compressibility - ASTM F36 J 7-17%
Recovery - ASTM F36 J min 50%
Tensile Strength Across Grain - ASTM F152 1820 psi (12.5 N/mm^2)
Ignition Loss max 26%
Thickness Increase - ASTM F146 - After 5hr
ASTM Oil IRM903 @ 300F (150C) max 15%
Fuel B @ 77F (25C) max 15%
Weight Increase - ASTM F146 - After 5 hr
ASTM Oil IRM903 @ 300F (150C) max 15%
Fuel B @ 77F (25C) max 15%
Creep Relaxation - ASTM F38 22%
Torque Retention (DIN 52913) - ASTM F38 37 N/mm^2
Sealability at 1000PSI - ASTM F37 0.2 ml/hr
