Fig B295 Three Bolt Pipe Clamp
Choose Favorites List

Fig B295 Three Bolt Pipe Clamp

Fig B295 Three Bolt Pipe Clamp

Product DetailsFigure 295

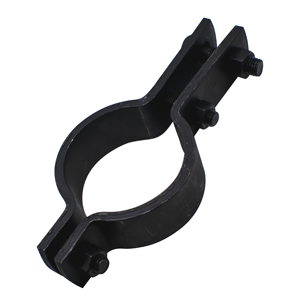

The figure B295 carbon steel double bolt pipe clamp is designed for hot, insulated pipe lines. Typically, the clamp is attached by a Fig. B278 welded eye rod or a Fig. B290 weldless eyenut.

MATERIAL Carbon Steel
MAX TEMP 750F (399C)
COMPLIANCE Federal Specification A-A-1191A (Type 3), ANSI/MSS SP-58 (Type 3)

Dimensions & LoadsFigure 295

Figure 295 Three Bolt Pipe ClampFigure 295 Three Bolt Pipe Clamp

PIPE SIZE MAXIMUM LOAD B C D TAKE OUT E F H WEIGHT EA
650F (343C) 750F (399C)
1/2 950 845 1 5/8 2 7/8 2 1/4 3/8 1 5/8 0.61
3/4 950 845 1 1/8 5/8 3 1/4 2 1/2 3/8 1 3/4 0.66
1 950 845 1 1/2 5/8 3 1/4 2 1/2 3/8 2 1/8 0.69
1 1/4 950 845 1 1/2 3/4 3 5/8 2 7/8 3/8 2 1/4 0.75
1 1/2 1545 1380 1 3/4 1 4 7/8 4 1/8 5/8 2 3/8 2.14
2 1545 1380 2 1/8 1 5 7/8 5 1/8 5/8 2 3/4 2.43
2 1/2 1545 1380 2 1/4 1 1/8 6 1/8 5 3/8 5/8 3 2.92
3 1545 1380 2 3/4 1 1/8 6 5/8 6 5/8 3 3/8 3.19
4 2500 2230 3 1/2 1 7 5/8 6 1/2 3/4 4 5/8 7.12
5 2500 2230 4 1 8 1/8 7 3/4 5 1/8 7.96
6 2865 2555 4 3/4 1 1/4 9 5/8 8 1/4 7/8 6 1/8 11.9
8 2865 2555 5 3/4 1 1/4 10 5/8 9 1/4 7/8 7 1/8 13.6
10 3240 2890 6 7/8 1 1/4 12 10 1/2 1 8 1/4 21.3
12 3240 2890 8 3/8 1 1/2 13 11 1/2 1 9 7/8 23.7
14 4300 3835 9 1/8 2 14 3/8 12 3/4 1 1/4 10 3/4 38.8
16 4300 3835 10 1/8 2 15 5/8 14 1 1/4 11 3/4 42.9
18 4300 3835 11 5/8 2 16 3/4 15 1/8 1 1/4 13 1/4 46.4
20 4500 4015 12 3/8 2 18 16 1/8 1 3/8 14 1/4 58.7
24 5490 4900 14 3/4 2 19 7/8 17 7/8 1 1/2 16 3/8 89.3
30 7500 6690 18 1/2 1 1/2 26 3/8 23 3/8 1 1/2 21 141
36 10500 9360 22 1/2 3 32 1/4 28 3/4 1 3/4 26 246
  1. All dimensions are in inches.

Installation DrawingsFigure 295

Figure 295 Installation Drawing

Figure 295 Installation Drawing

Figure 295 Installation Drawing

Figure 295 Installation Drawing
