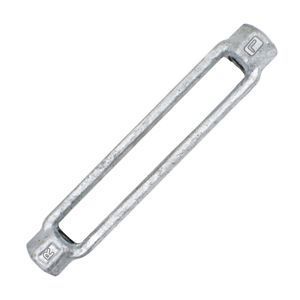

Fig G230 Turnbuckle, Galvanized
Fig G230 Turnbuckle, Galvanized
Manufacturers:
The figure G230 hot dipped galvanized forged steel turnbuckle is used to connect right and left hand threaded rods together and provide for adjustment.
Products
Product Details
| MATERIAL | Hot Dipped Galvanized Forged Steel |
| COMPLIANCE | Federal Specification A-A-1192A Type 13, MSS-SP 58 Type 13, and BSPSS-BS3974 |
Dimensions & Loads
| ROD SIZE A |
MAX LOAD 650F (343C) |
B | WEIGHT EACH |
| 3/8 | 730 | 7 1/8 | 0.30 |
| 1/2 | 1350 | 7 1/2 | 0.60 |
| 5/8 | 2160 | 7 7/8 | 1.00 |
| 3/4 | 3230 | 8 1/4 | 1.20 |
| 7/8 | 4480 | 8 5/8 | 1.90 |
| 1 | 5900 | 9 | 2.50 |
| 1 1/4 | 9500 | 9 1/8 | 3.80 |
| 1 1/2 | 13800 | 9 3/4 | 5.70 |
| 1 3/4 | 18600 | 10 3/8 | 8.20 |
| 2 | 24600 | 11 | 14.20 |
| 2 1/4 | 32300 | 12 7/8 | 27.00 |
| 2 1/2 | 39800 | 13 1/2 | 33.00 |
- All dimensions are in inches.
Installation Drawings
