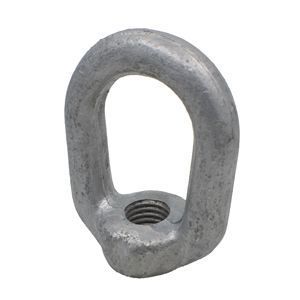

Fig G290/G290L WeldleSS Eye Nut, Galvanized
Fig G290/G290L WeldleSS Eye Nut, Galvanized
Manufacturers:
The figure G290 hot dipped galvanized forged steel weldless eye nut is used to connect rod ends with structural steel welded beam attachments or pipe clamps; as a substitute for a welded eyerod. It provides a pivot point and adjustment. It can also be supplied tapped left hand as a Fig. G290L.
Products
Installation Drawings
Dimensions & Loads
| ROD TAP A |
MAX LOAD 650F (343C) |
F | G | BAIL SIZE |
WEIGHT EACH |
| 3/8 | 730 | 1 | 1 1/2 | 1/2 | 0.63 |
| 1/2 | 1350 | 1 | 1 1/2 | 1/2 | 0.63 |
| 5/8 | 2160 | 1 | 1 1/2 | 1/2 | 0.62 |
| 3/4 | 3230 | 1 | 1 1/2 | 1/2 | 0.60 |
| 7/8 | 4480 | 1 3/8 | 2 | 3/4 | 1.70 |
| 1 | 5900 | 1 3/4 | 2 | 3/4 | 1.70 |
| 1 1/8 | 7700 | 1 3/4 | 2 1/2 | 1 | 3.85 |
| 1 1/4 | 9500 | 1 3/4 | 2 1/2 | 1 | 3.85 |
| 1 3/8 | 11650 | 1 3/4 | 2 1/2 | 1 | 3.85 |
| 1 1/2 | 13800 | 1 3/4 | 2 1/2 | 1 | 3.85 |
| 1 3/4 | 18600 | 3 1/4 | 4 | 1 1/2 | 16.40 |
| 2 | 24600 | 3 1/4 | 4 | 1 1/2 | 15.90 |
| 2 1/4 | 32300 | 3 1/4 | 4 | 1 1/2 | 15.40 |
| 2 1/2 | 39800 | 3 1/4 | 4 | 1 1/2 | 14.90 |
- All dimensions are in inches.
Product Details
| MATERIAL | Hot Dipped Galvanized Forged Steel |
| MAX TEMP | 450F (232C) |
| COMPLIANCE | Federal Specification: A-A-1192A (Type 17), ANSI/MSS SP-58 (Type 17) |
