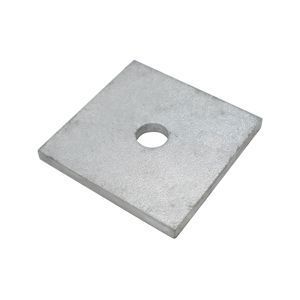

Fig G60 Washer Plate, Galvanized
Fig G60 Washer Plate, Galvanized
Manufacturers:
The figure G60 hot dipped galvanized steel washer plate is to be welded to back to back channels or angles for supporting pipe with rods or u-bolts. Sufficient contact surface to the supporting structure must be made to develop maximum load capacity. Dimension “A” should not be exceeded.
Products
Installation Drawings
Dimensions & Loads
| ROD SIZE |
MAX LOAD |
A | B | C | D | WEIGHT EACH |
| 3/8 | 730 | 1 1/2 | 3 | 1/4 | 7/16 | 0.63 |
| 1/2 | 1350 | 1 1/2 | 3 | 1/4 | 9/16 | 0.61 |
| 5/8 | 2160 | 1 1/2 | 3 | 3/8 | 11/16 | 0.95 |
| 3/4 | 3230 | 2 | 4 | 3/8 | 13/16 | 1.60 |
| 7/8 | 4480 | 2 | 4 | 1/2 | 15/16 | 2.17 |
| 1 | 5900 | 2 1/2 | 4 | 1/2 | 1 1/16 | 2.15 |
| 1 1/4 | 9500 | 3 | 5 | 1/2 | 1 3/8 | 3.37 |
| 1 1/2 | 13800 | 3 1/2 | 5 | 5/8 | 1 3/4 | 4.93 |
| 1 3/4 | 18600 | 3 1/2 | 5 | 5/8 | 2 | 4.64 |
| 2 | 24600 | 4 | 5 | 3/4 | 2 1/4 | 4.47 |
| 2 1/4 | 32300 | 4 | 6 | 3/4 | 2 1/2 | 6.62 |
| 2 1/2 | 39800 | 4 1/2 | 6 | 3/4 | 2 3/4 | 6.40 |
| 2 3/4 | 49400 | 4 1/2 | 6 | 3/4 | 3 | 6.16 |
| 3 | 60100 | 4 1/2 | 6 | 3/4 | 3 1/4 | 5.89 |
| 3 1/4 | 71900 | 4 1/2 | 6 | 3/4 | 3 1/2 | 5.56 |
| 3 1/2 | 84700 | 5 | 7 | 3/4 | 3 3/4 | 8.07 |
| 3 3/4 | 98500 | 5 | 7 | 3/4 | 4 | 7.75 |
- All dimensions are in inches.
Product Details
| MATERIAL | Hot Dipped Galvanized Carbon Steel |
| COMPLIANCE | ANSI/MSS SP-58 |
