Round Adjustable Die

Selected Round Die NutRound Adjustable Die
Round Die NutRound Adjustable Die

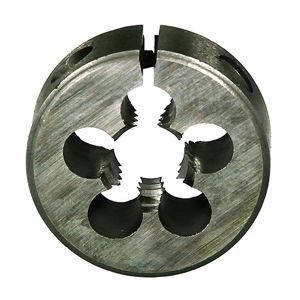

The High Speed Steel Adjustable Round Split die may be adjusted through the screws on the holder. Adjustment on the open type is done by turning the three screws on the holder. A die holder or handle is needed for proper operation of round split adjustable dies.

Products

Dimensional Specifications

Die Size Thread Available Outer Diameters (OD)
0 80 13/16 - - - - -
1 64 13/16 - - - - -
1 72 13/16 - - - - -
2 56 13/16 - - - - -
2 64 13/16 - - - - -
3 48 13/16 - - - - -
3 56 13/16 - - - - -
4 40 13/16 1 - - - -
4 48 13/16 1 - - - -
5 40 13/16 1 - - - -
5 44 13/16 - - - - -
6 32 13/16 1 - - - -
6 40 13/16 1 - - - -
8 32 13/16 1 - - - -
8 36 13/16 1 - - - -
10 24 13/16 1 - - - -
10 32 13/16 1 - - - -
12 24 13/16 1 - - - -
12 28 13/16 1 - - - -
1/4 20 13/16 1 1 1/2 2 - -
1/4 28 13/16 1 1 1/2 2 - -
5/16 18 13/16 1 1 1/2 2 - -
5/16 24 13/16 1 1 1/2 2 - -
3/8 16 - 1 1 1/2 2 - -
3/8 24 - 1 1 1/2 2 - -
7/16 14 - 1 1 1/2 2 - -
7/16 20 - 1 1 1/2 2 - -
1/2 13 - 1 1 1/2 2 - -
  1. All dimensions are in inches.
Die Size Thread Available Outer Diameters (OD)
1/2 20 - 1 1 1/2 2 - -
9/16 12 - - 1 1/2 2 - -
9/16 18 - - 1 1/2 2 - -
5/8 11 - - 1 1/2 2 - -
5/8 18 - - 1 1/2 2 - -
3/4 10 - - 1 1/2 2 - -
3/4 16 - - 1 1/2 2 - -
7/8 9 - - - 2 - -
7/8 14 - - - 2 - -
1 8 - - - 2 - 3
1 12 - - - 2 - -
1 14 - - - 2 - 3
1 1/8 7 - - - - 2 1/2 3
1 1/8 12 - - - - 2 1/2 3
1 1/4 7 - - - - 2 1/2 3
1 1/4 12 - - - - 2 1/2 3
1 3/8 6 - - - - 2 1/2 3
1 3/8 12 - - - - 2 1/2 3
1 1/2 6 - - - - 2 1/2 3
1 1/2 12 - - - - 2 1/2 3
1 5/8 5 1/2 - - - - - 3
1 5/8 12 - - - - - 3
1 3/4 5 - - - - - 3
1 3/4 12 - - - - - 3
1 7/8 5 - - - - - 3
1 7/8 12 - - - - - 3
2 4 1/2 - - - - - 3
2 12 - - - - - 3
