Teadit 1076 Full Face Gasket

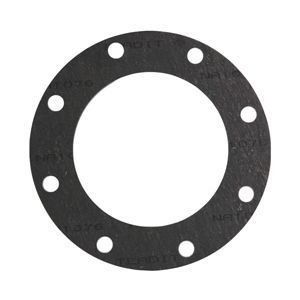

Full Face gaskets are a flat sealing element, consisting of an inner and outer diameter, and a specified number of bolt holes, the center of which are evenly spaced around a bolt circle. Full face gaskets are designed to fill the entire space between flat-faced flanges, with bolt holes that match the size and arrangement of the bolt holes in the intended flanges. ASME B16.21 and ASME B16.47 govern the dimensions of full face gaskets for standard and large diameter pipe flanges. Teadit NA 1076 sheet is a good all purpose sheet that is specifically formulated to handle a broad range of refrigerants. In addition, 1076 is suitable for services handling water, saturated steam, oils, fuels, mild acids and alkalies. NA 1076 is a compressed fiber sheet gasket material produced from a combination of aramid and other synthetic fibers and bonded with neoprene rubber (CR). It is manufactured through the hot calender process under rigorous quality control standards that are registered under ISO-9001 certification.

Governing StandardsTeadit 1076 Full Face Gasket

ASME B16.21 Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47 Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.

Service LimitsTeadit 1076 Full Face Gasket

Temperature Continuous Service: 392F (200C)
Maximum Service: 698F (370C)
Pressure Vacuum to 725 psi (50 bar)
ASTM Line
Call Out
F104-F712120-B4E99M9

Physical PropertiesTeadit 1076 Full Face Gasket

Typical Physical Properties:
Color Black
Density 106 lb/ft^3 (1.70 g/cm^3)
Compressibility - ASTM F36 J 7-17%
Recovery - ASTM F36 J 46%
Creep Relaxation - ASTM F38 20%
Thickness Increase - ASTM F146 - After 5hr
ASTM IRM 903 @ 300F (150C) ≤30%
ASTM Fuel B @ 77F (25C) ≤20%
Weight Increase - ASTM F146 - After 5hr
Fuel B @ 77F (25C) ≤20%
Tensile Strength Across Grain 1740 psi

Dimensional SpecificationsTeadit 1076 Full Face Gasket

Per ASME B16.21-2016
  Pipe Diameter
1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8 10 12 14 16 18 20 24
Inside Diameter 0.84 1.06 1.31 1.66 1.91 2.38 2.88 3.50 4.00 4.50 5.56 6.62 8.62 10.75 12.75 14.00 16.00 18.00 20.00 24.00
Outside
Diameter
per Class
150# 3.50 3.88 4.25 4.63 5.00 6.00 7.00 7.50 8.50 9.00 10.00 11.00 13.50 16.00 19.00 21.00 23.50 25.00 27.50 32.00
300# 3.75 4.62 4.88 5.25 6.12 6.50 7.50 8.25 9.00 10.00 11.00 12.50 15.00 17.50 20.50 23.00 25.50 28.00 30.50 36.00
600# 3.75 4.62 4.88 5.25 6.12 6.50 7.50 8.25 9.00 10.75 13.00 14.00 16.50 20.00 22.00 23.75 27.00 29.25 32.00 37.00
Bolt Circle
Diameter
per Class
150# 2.38 2.75 3.13 3.50 3.88 4.75 5.50 6.00 7.00 7.50 8.50 9.50 11.75 14.25 17.00 18.75 21.25 22.75 25.00 29.50
300# 2.62 3.25 3.50 3.88 4.50 5.00 5.88 6.62 7.25 7.88 9.25 10.62 13.00 15.25 17.75 20.25 22.50 24.75 27.00 32.00
600# 2.62 3.25 3.50 3.88 4.50 5.00 5.88 6.62 7.25 8.50 10.50 11.50 13.75 17.00 19.25 20.75 23.75 25.75 28.50 33.00
Number of
Bolt Holes
per Class
150# 4 4 4 4 4 4 4 4 8 8 8 8 8 12 12 12 16 16 20 20
300# 4 4 4 4 4 8 8 8 8 8 8 12 12 16 16 20 20 24 24 24
600# 4 4 4 4 4 8 8 8 8 8 8 12 12 16 20 20 20 20 24 24
Bolt Hole
Diameter
per Class
150# 0.63 0.63 0.63 0.63 0.63 0.75 0.75 0.75 0.75 0.75 0.88 0.88 0.88 1.00 1.00 1.13 1.13 1.25 1.25 1.38
300# 0.63 0.75 0.75 0.75 0.88 0.75 0.88 0.88 0.88 0.88 0.88 0.88 1.00 1.12 1.25 1.25 1.38 1.38 1.38 1.62
600# 0.63 0.75 0.75 0.75 0.88 0.75 0.88 0.88 1.00 1.00 1.12 1.12 1.25 1.38 1.38 1.50 1.62 1.75 1.75 2.00
Per ASME B16.47-2017
Series A Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class
150# 34.25 36.50 38.75 41.75 43.75 46.00 48.75 50.75 53.00 55.25 57.25 59.50 61.75 64.00 66.25 68.75 71.00 73.00
300# 38.25 40.75 43.00 45.25 47.50 50.00 46.00 48.75 50.75 53.25 55.75 57.75 60.25 62.25 65.25 67.25 69.25 71.25
600# 40.00 42.25 44.50 47.00 49.00 51.75 50.00 52.00 55.25 57.25 59.50 62.75 65.75 67.75 70.00 73.00 75.00 78.50
Bolt Circle
Diameter
per Class
150# 31.75 34.00 36.00 38.50 40.50 42.75 45.25 47.25 49.50 51.75 53.75 56.00 58.25 60.50 62.75 65.00 67.25 69.25
300# 34.50 37.00 39.25 41.50 43.50 46.00 43.00 45.50 47.50 49.75 52.00 54.00 56.25 58.25 61.00 63.00 65.00 67.00
600# 36.00 38.00 40.25 42.50 44.50 47.00 45.75 47.75 50.50 52.50 54.75 57.50 60.00 62.00 64.25 66.75 68.75 71.75
Number of
Bolt Holes
per Class
150# 24 28 28 28 32 32 32 36 36 40 40 44 44 44 44 48 48 52
300# 28 28 28 28 28 32 32 32 32 32 28 32 32 32 28 28 32 32
600# 28 28 28 28 28 28 28 32 28 32 32 32 28 32 32 32 32 28
Bolt Hole
Diameter
per Class
150# 1.38 1.38 1.38 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.88 1.88 1.88 1.88 1.88 1.88
300# 1.75 1.75 1.88 2.00 2.00 2.12 1.62 1.75 1.75 1.88 2.00 2.00 2.12 2.12 2.38 2.38 2.38 2.38
600# 2.00 2.12 2.12 2.38 2.38 2.62 2.38 2.38 2.62 2.62 2.62 2.88 3.12 3.12 3.12 3.38 3.38 3.62
Per ASME B16.47-2017
Series B Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class
150# 30.94 32.94 34.94 37.06 39.56 41.62 44.25 46.25 48.25 50.25 52.81 54.81 56.81 58.81 61.00 63.00 65.94 67.94
300# 34.12 36.25 39.00 41.50 43.62 46.12 48.12 50.12 52.50 54.50 57.50 59.50 61.50 63.50 65.88 69.50 71.94 73.94
600# 35.00 37.50 40.25 42.75 45.75 47.75
Bolt Circle
Diameter
per Class
150# 29.31 31.31 33.31 35.44 37.69 39.75 42.12 44.12 46.12 48.12 50.56 52.56 54.56 56.56 58.75 60.75 63.44 65.44
300# 31.62 33.75 36.25 38.50 40.62 42.88 44.88 46.88 49.00 51.00 53.75 55.75 57.75 59.75 62.12 65.00 67.44 69.44
600# 31.75 34.00 36.50 38.75 41.50 43.50
Number of
Bolt Holes
per Class
150# 36 40 44 48 40 44 40 44 48 52 40 44 48 52 56 60 48 52
300# 32 36 36 32 36 32 36 40 36 40 36 40 44 48 48 36 40 40
600# 28 28 28 28 24 28
Bolt Hole
Diameter
per Class
150# 0.88 0.88 0.88 0.88 1.00 1.00 1.12 1.12 1.12 1.12 1.25 1.25 1.25 1.25 1.25 1.25 1.38 1.38
300# 1.38 1.38 1.50 1.62 1.62 1.75 1.75 1.75 1.88 1.88 2.00 2.00 2.00 2.00 2.00 2.38 2.38 2.38
600# 1.75 1.88 2.00 2.12 2.38 2.38
  1. All dimensions are in inches.
Teadit 1076 Full Face Gasket
View
Pipe Diameter Flange Rating Series Thickness Item # Availability Price Quantity UOM
1/2 150# - 1/16 GF1076-1500050 1-3 Working Days $4.62458/EA EA
1/2 300#, 400#, 600# - 1/16 GF1076-3460050 1-3 Working Days $5.30883/EA EA
3/4 150# - 1/16 GF1076-1500075 1-3 Working Days $5.66865/EA EA
3/4 300#, 400#, 600# - 1/16 GF1076-3460075 1-3 Working Days $8.07532/EA EA
1 150# - 1/16 GF1076-1500100 1-3 Working Days $6.8189/EA EA
1 300#, 400#, 600# - 1/16 GF1076-3460100 1-3 Working Days $8.97192/EA EA
1 1/4 150# - 1/16 GF1076-1500125 1-3 Working Days $8.07532/EA EA
1 1/4 300#, 400#, 600# - 1/16 GF1076-3460125 1-3 Working Days $10.40531/EA EA
1 1/2 150# - 1/16 GF1076-1500150 1-3 Working Days $9.43792/EA EA
1 1/2 300#, 400#, 600# - 1/16 GF1076-3460150 1-3 Working Days $14.16278/EA EA
2 150# - 1/16 GF1076-1500200 1-3 Working Days $13.59061/EA EA
2 300#, 400#, 600# - 1/16 GF1076-3460200 1-3 Working Days $15.95009/EA EA
2 1/2 150# - 1/16 GF1076-1500250 1-3 Working Days $18.49833/EA EA
3 150# - 1/16 GF1076-1500300 1-3 Working Days $16.61074/EA EA
3 300#, 400#, 600# - 1/16 GF1076-3460300 1-3 Working Days $21.07016/EA EA
4 150# - 1/16 GF1076-1500400 1-3 Working Days $22.93415/EA EA
4 300# - 1/16 GF1076-3000400 1-3 Working Days $30.10697/EA EA
5 150# - 1/16 GF1076-1500500 1-3 Working Days $26.07079/EA EA
6 150# - 1/16 GF1076-1500600 1-3 Working Days $29.11009/EA EA
6 300# - 1/16 GF1076-3000600 1-3 Working Days $42.41756/EA EA
8 150# - 1/16 GF1076-1500800 1-3 Working Days $40.71874/EA EA
8 300# - 1/16 GF1076-3000800 1-3 Working Days $56.85758/EA EA
10 150# - 1/16 GF1076-1501000 1-3 Working Days $53.01753/EA EA
10 300# - 1/16 GF1076-3001000 1-3 Working Days $71.98775/EA EA
12 150# - 1/16 GF1076-1501200 1-3 Working Days $74.91351/EA EA
12 300# - 1/16 GF1076-3001200 1-3 Working Days $97.28138/EA EA
14 150# - 1/16 GF1076-1501400 1-3 Working Days $92.49164/EA EA
14 300# - 1/16 GF1076-3001400 1-3 Working Days $125.71312/EA EA
16 150# - 1/16 GF1076-1501600 1-3 Working Days $111.83938/EA EA
16 300# - 1/16 GF1076-3001600 1-3 Working Days $148.83603/EA EA
18 150# - 1/16 GF1076-1501800 1-3 Working Days $113.63258/EA EA
18 300# - 1/16 GF1076-3001800 1-3 Working Days $173.65777/EA EA
20 150# - 1/16 GF1076-1502000 1-3 Working Days $134.49039/EA EA
20 300# - 1/16 GF1076-3002000 1-3 Working Days $200.17833/EA EA
24 150# - 1/16 GF1076-1502400 1-3 Working Days $169.12757/EA EA
24 300# - 1/16 GF1076-3002400 1-3 Working Days $271.81216/EA EA
1/2 150# - 1/8 GF1076-1500050-1/8 1-3 Working Days $6.45551/EA EA
1/2 300#, 400#, 600# - 1/8 GF1076-3460050-1/8 1-3 Working Days $7.41067/EA EA
3/4 150# - 1/8 GF1076-1500075-1/8 1-3 Working Days $7.91294/EA EA
3/4 300#, 400#, 600# - 1/8 GF1076-3460075-1/8 1-3 Working Days $11.27245/EA EA
1 150# - 1/8 GF1076-1500100-1/8 1-3 Working Days $9.51859/EA EA
1 300#, 400#, 600# - 1/8 GF1076-3460100-1/8 1-3 Working Days $12.52403/EA EA
1 1/4 150# - 1/8 GF1076-1500125-1/8 1-3 Working Days $11.27245/EA EA
1 1/4 300#, 400#, 600# - 1/8 GF1076-3460125-1/8 1-3 Working Days $14.52491/EA EA
1 1/2 150# - 1/8 GF1076-1500150-1/8 1-3 Working Days $13.17452/EA EA
1 1/2 300#, 400#, 600# - 1/8 GF1076-3460150-1/8 1-3 Working Days $19.77001/EA EA
2 150# - 1/8 GF1076-1500200-1/8 1-3 Working Days $18.97131/EA EA
2 300#, 400#, 600# - 1/8 GF1076-3460200-1/8 1-3 Working Days $22.26493/EA EA
2 1/2 150# - 1/8 GF1076-1500250-1/8 1-3 Working Days $25.82205/EA EA
3 150# - 1/8 GF1076-1500300-1/8 1-3 Working Days $23.18715/EA EA
3 300#, 400#, 600# - 1/8 GF1076-3460300-1/8 1-3 Working Days $29.41211/EA EA
4 150# - 1/8 GF1076-1500400-1/8 1-3 Working Days $32.01408/EA EA
4 300# - 1/8 GF1076-3000400-1/8 1-3 Working Days $42.02671/EA EA
5 150# - 1/8 GF1076-1500500-1/8 1-3 Working Days $36.39255/EA EA
6 150# - 1/8 GF1076-1500600-1/8 1-3 Working Days $40.63515/EA EA
6 300# - 1/8 GF1076-3000600-1/8 1-3 Working Days $59.21122/EA EA
8 150# - 1/8 GF1076-1500800-1/8 1-3 Working Days $56.83981/EA EA
8 300# - 1/8 GF1076-3000800-1/8 1-3 Working Days $79.36823/EA EA
10 150# - 1/8 GF1076-1501000-1/8 1-3 Working Days $74.00785/EA EA
10 300# - 1/8 GF1076-3001000-1/8 1-3 Working Days $100.48863/EA EA
12 150# - 1/8 GF1076-1501200-1/8 1-3 Working Days $104.57273/EA EA
12 300# - 1/8 GF1076-3001200-1/8 1-3 Working Days $135.79634/EA EA
14 150# - 1/8 GF1076-1501400-1/8 1-3 Working Days $129.11027/EA EA
14 300# - 1/8 GF1076-3001400-1/8 1-3 Working Days $175.48458/EA EA
16 150# - 1/8 GF1076-1501600-1/8 1-3 Working Days $156.11803/EA EA
16 300# - 1/8 GF1076-3001600-1/8 1-3 Working Days $207.76214/EA EA
18 150# - 1/8 GF1076-1501800-1/8 1-3 Working Days $158.62119/EA EA
18 300# - 1/8 GF1076-3001800-1/8 1-3 Working Days $242.41112/EA EA
20 150# - 1/8 GF1076-1502000-1/8 1-3 Working Days $187.73688/EA EA
20 300# - 1/8 GF1076-3002000-1/8 1-3 Working Days $279.43152/EA EA
24 150# - 1/8 GF1076-1502400-1/8 1-3 Working Days $236.08736/EA EA
24 300# - 1/8 GF1076-3002400-1/8 1-3 Working Days $379.42611/EA EA
