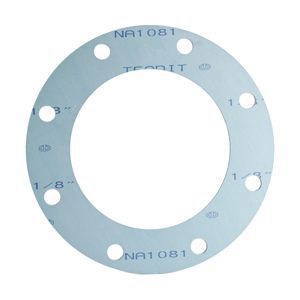

Teadit 1081 Full Face Gasket

Full Face gaskets are a flat sealing element, consisting of an inner and outer diameter, and a specified number of bolt holes, the center of which are evenly spaced around a bolt circle. Full face gaskets are designed to fill the entire space between flat-faced flanges, with bolt holes that match the size and arrangement of the bolt holes in the intended flanges. ASME B16.21 and ASME B16.47 govern the dimensions of full face gaskets for standard and large diameter pipe flanges. Teadit NA 1081 is a premium compressed fiber sheet gasket material produced from a combination of DuPont Kevlar, Inorganic Fillers and bonded with Nitrile Rubber (NBR). It is manufactured under rigorous quality control standards that are registered under ISO-9001 certification. NA1081 has numerous applications in the process industries handling media like: mild acids and alkalis, water, hydrocarbons, oils, gasoline, steam, air, industrial gases, general chemicals, neutral solutions.

Governing StandardsTeadit 1081 Full Face Gasket

ASME B16.21 Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47 Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.

Service LimitsTeadit 1081 Full Face Gasket

Temperature Continuous Service: 500F (260C)
Maximum Service: 752F (400C)
Pressure Continuous Service: 725 psi (50 bar)
Maximum Service: 1595 psi (110 bar)
ASTM Line Call
Out F104
F712220E23M5

Physical PropertiesTeadit 1081 Full Face Gasket

Typical Physical Properties:
Color Blue
Density 119.5 lb/ft^3 (1.92 g/cm^3)
Compressibility - ASTM F36 J 7-17%
Recovery - ASTM F36 J min 50%
Tensile Strength Across Grain - ASTM F152 1820 psi (12.5 N/mm^2)
Ignition Loss max 26%
Thickness Increase - ASTM F146 - After 5hr
ASTM Oil IRM903 @ 300F (150C) max 15%
Fuel B @ 77F (25C) max 15%
Weight Increase - ASTM F146 - After 5 hr
ASTM Oil IRM903 @ 300F (150C) max 15%
Fuel B @ 77F (25C) max 15%
Creep Relaxation - ASTM F38 22%
Torque Retention (DIN 52913) - ASTM F38 37 N/mm^2
Sealability at 1000PSI - ASTM F37 0.2 ml/hr

Dimensional SpecificationsTeadit 1081 Full Face Gasket

Per ASME B16.21-2016
  Pipe Diameter
1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8 10 12 14 16 18 20 24
Inside Diameter 0.84 1.06 1.31 1.66 1.91 2.38 2.88 3.50 4.00 4.50 5.56 6.62 8.62 10.75 12.75 14.00 16.00 18.00 20.00 24.00
Outside
Diameter
per Class
150# 3.50 3.88 4.25 4.63 5.00 6.00 7.00 7.50 8.50 9.00 10.00 11.00 13.50 16.00 19.00 21.00 23.50 25.00 27.50 32.00
300# 3.75 4.62 4.88 5.25 6.12 6.50 7.50 8.25 9.00 10.00 11.00 12.50 15.00 17.50 20.50 23.00 25.50 28.00 30.50 36.00
600# 3.75 4.62 4.88 5.25 6.12 6.50 7.50 8.25 9.00 10.75 13.00 14.00 16.50 20.00 22.00 23.75 27.00 29.25 32.00 37.00
Bolt Circle
Diameter
per Class
150# 2.38 2.75 3.13 3.50 3.88 4.75 5.50 6.00 7.00 7.50 8.50 9.50 11.75 14.25 17.00 18.75 21.25 22.75 25.00 29.50
300# 2.62 3.25 3.50 3.88 4.50 5.00 5.88 6.62 7.25 7.88 9.25 10.62 13.00 15.25 17.75 20.25 22.50 24.75 27.00 32.00
600# 2.62 3.25 3.50 3.88 4.50 5.00 5.88 6.62 7.25 8.50 10.50 11.50 13.75 17.00 19.25 20.75 23.75 25.75 28.50 33.00
Number of
Bolt Holes
per Class
150# 4 4 4 4 4 4 4 4 8 8 8 8 8 12 12 12 16 16 20 20
300# 4 4 4 4 4 8 8 8 8 8 8 12 12 16 16 20 20 24 24 24
600# 4 4 4 4 4 8 8 8 8 8 8 12 12 16 20 20 20 20 24 24
Bolt Hole
Diameter
per Class
150# 0.63 0.63 0.63 0.63 0.63 0.75 0.75 0.75 0.75 0.75 0.88 0.88 0.88 1.00 1.00 1.13 1.13 1.25 1.25 1.38
300# 0.63 0.75 0.75 0.75 0.88 0.75 0.88 0.88 0.88 0.88 0.88 0.88 1.00 1.12 1.25 1.25 1.38 1.38 1.38 1.62
600# 0.63 0.75 0.75 0.75 0.88 0.75 0.88 0.88 1.00 1.00 1.12 1.12 1.25 1.38 1.38 1.50 1.62 1.75 1.75 2.00
Per ASME B16.47-2017
Series A Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class
150# 34.25 36.50 38.75 41.75 43.75 46.00 48.75 50.75 53.00 55.25 57.25 59.50 61.75 64.00 66.25 68.75 71.00 73.00
300# 38.25 40.75 43.00 45.25 47.50 50.00 46.00 48.75 50.75 53.25 55.75 57.75 60.25 62.25 65.25 67.25 69.25 71.25
600# 40.00 42.25 44.50 47.00 49.00 51.75 50.00 52.00 55.25 57.25 59.50 62.75 65.75 67.75 70.00 73.00 75.00 78.50
Bolt Circle
Diameter
per Class
150# 31.75 34.00 36.00 38.50 40.50 42.75 45.25 47.25 49.50 51.75 53.75 56.00 58.25 60.50 62.75 65.00 67.25 69.25
300# 34.50 37.00 39.25 41.50 43.50 46.00 43.00 45.50 47.50 49.75 52.00 54.00 56.25 58.25 61.00 63.00 65.00 67.00
600# 36.00 38.00 40.25 42.50 44.50 47.00 45.75 47.75 50.50 52.50 54.75 57.50 60.00 62.00 64.25 66.75 68.75 71.75
Number of
Bolt Holes
per Class
150# 24 28 28 28 32 32 32 36 36 40 40 44 44 44 44 48 48 52
300# 28 28 28 28 28 32 32 32 32 32 28 32 32 32 28 28 32 32
600# 28 28 28 28 28 28 28 32 28 32 32 32 28 32 32 32 32 28
Bolt Hole
Diameter
per Class
150# 1.38 1.38 1.38 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.88 1.88 1.88 1.88 1.88 1.88
300# 1.75 1.75 1.88 2.00 2.00 2.12 1.62 1.75 1.75 1.88 2.00 2.00 2.12 2.12 2.38 2.38 2.38 2.38
600# 2.00 2.12 2.12 2.38 2.38 2.62 2.38 2.38 2.62 2.62 2.62 2.88 3.12 3.12 3.12 3.38 3.38 3.62
Per ASME B16.47-2017
Series B Pipe Diameter
26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
Inside Diameter 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42.00 44.00 46.00 48.00 50.00 52.00 54.00 56.00 58.00 60.00
Outside
Diameter
per Class
150# 30.94 32.94 34.94 37.06 39.56 41.62 44.25 46.25 48.25 50.25 52.81 54.81 56.81 58.81 61.00 63.00 65.94 67.94
300# 34.12 36.25 39.00 41.50 43.62 46.12 48.12 50.12 52.50 54.50 57.50 59.50 61.50 63.50 65.88 69.50 71.94 73.94
600# 35.00 37.50 40.25 42.75 45.75 47.75
Bolt Circle
Diameter
per Class
150# 29.31 31.31 33.31 35.44 37.69 39.75 42.12 44.12 46.12 48.12 50.56 52.56 54.56 56.56 58.75 60.75 63.44 65.44
300# 31.62 33.75 36.25 38.50 40.62 42.88 44.88 46.88 49.00 51.00 53.75 55.75 57.75 59.75 62.12 65.00 67.44 69.44
600# 31.75 34.00 36.50 38.75 41.50 43.50
Number of
Bolt Holes
per Class
150# 36 40 44 48 40 44 40 44 48 52 40 44 48 52 56 60 48 52
300# 32 36 36 32 36 32 36 40 36 40 36 40 44 48 48 36 40 40
600# 28 28 28 28 24 28
Bolt Hole
Diameter
per Class
150# 0.88 0.88 0.88 0.88 1.00 1.00 1.12 1.12 1.12 1.12 1.25 1.25 1.25 1.25 1.25 1.25 1.38 1.38
300# 1.38 1.38 1.50 1.62 1.62 1.75 1.75 1.75 1.88 1.88 2.00 2.00 2.00 2.00 2.00 2.38 2.38 2.38
600# 1.75 1.88 2.00 2.12 2.38 2.38
  1. All dimensions are in inches.
Teadit 1081 Full Face Gasket
View
Pipe Diameter Flange Rating Series Thickness Item # Availability Price Quantity UOM
1/2 150# - 1/16 GF1081-1500050 1-3 Working Days $2.34365/EA EA
1/2 300#, 400#, 600# - 1/16 GF1081-3460050 1-3 Working Days $2.69041/EA EA
3/4 150# - 1/16 GF1081-1500075 1-3 Working Days $2.87276/EA EA
3/4 300#, 400#, 600# - 1/16 GF1081-3460075 1-3 Working Days $4.09242/EA EA
1 150# - 1/16 GF1081-1500100 1-3 Working Days $3.45569/EA EA
1 300#, 400#, 600# - 1/16 GF1081-3460100 1-3 Working Days $4.5468/EA EA
1 1/4 150# - 1/16 GF1081-1500125 1-3 Working Days $4.09242/EA EA
1 1/4 300#, 400#, 600# - 1/16 GF1081-3460125 1-3 Working Days $5.27321/EA EA
1 1/2 150# - 1/16 GF1081-1500150 1-3 Working Days $4.78296/EA EA
1 1/2 300#, 400#, 600# - 1/16 GF1081-3460150 1-3 Working Days $7.17742/EA EA
2 150# - 1/16 GF1081-1500200 1-3 Working Days $6.88746/EA EA
2 300#, 400#, 600# - 1/16 GF1081-3460200 1-3 Working Days $8.0832/EA EA
2 1/2 150# - 1/16 GF1081-1500250 1-3 Working Days $9.3746/EA EA
3 150# - 1/16 GF1081-1500300 1-3 Working Days $8.418/EA EA
3 300#, 400#, 600# - 1/16 GF1081-3460300 1-3 Working Days $10.67795/EA EA
4 150# - 1/16 GF1081-1500400 1-3 Working Days $11.62259/EA EA
4 300# - 1/16 GF1081-3000400 1-3 Working Days $15.25763/EA EA
5 150# - 1/16 GF1081-1500500 1-3 Working Days $13.21217/EA EA
6 150# - 1/16 GF1081-1500600 1-3 Working Days $14.75243/EA EA
6 300# - 1/16 GF1081-3000600 1-3 Working Days $21.4964/EA EA
8 150# - 1/16 GF1081-1500800 1-3 Working Days $20.63547/EA EA
8 300# - 1/16 GF1081-3000800 1-3 Working Days $28.81433/EA EA
10 150# - 1/16 GF1081-1501000 1-3 Working Days $26.86826/EA EA
10 300# - 1/16 GF1081-3001000 1-3 Working Days $36.482/EA EA
12 150# - 1/16 GF1081-1501200 1-3 Working Days $37.96472/EA EA
12 300# - 1/16 GF1081-3001200 1-3 Working Days $49.30033/EA EA
14 150# - 1/16 GF1081-1501400 1-3 Working Days $46.87298/EA EA
14 300# - 1/16 GF1081-3001400 1-3 Working Days $63.70899/EA EA
16 150# - 1/16 GF1081-1501600 1-3 Working Days $56.67804/EA EA
16 300# - 1/16 GF1081-3001600 1-3 Working Days $75.42723/EA EA
18 150# - 1/16 GF1081-1501800 1-3 Working Days $57.5868/EA EA
18 300# - 1/16 GF1081-3001800 1-3 Working Days $88.00641/EA EA
20 150# - 1/16 GF1081-1502000 1-3 Working Days $68.15714/EA EA
20 300# - 1/16 GF1081-3002000 1-3 Working Days $101.44652/EA EA
24 150# - 1/16 GF1081-1502400 1-3 Working Days $85.71059/EA EA
24 300# - 1/16 GF1081-3002400 1-3 Working Days $137.74916/EA EA
1/2 150# - 1/8 GF1081-1500050-1/8 1-3 Working Days $3.48701/EA EA
1/2 300#, 400#, 600# - 1/8 GF1081-3460050-1/8 1-3 Working Days $4.00295/EA EA
3/4 150# - 1/8 GF1081-1500075-1/8 1-3 Working Days $4.27426/EA EA
3/4 300#, 400#, 600# - 1/8 GF1081-3460075-1/8 1-3 Working Days $6.08892/EA EA
1 150# - 1/8 GF1081-1500100-1/8 1-3 Working Days $5.14156/EA EA
1 300#, 400#, 600# - 1/8 GF1081-3460100-1/8 1-3 Working Days $6.76498/EA EA
1 1/4 150# - 1/8 GF1081-1500125-1/8 1-3 Working Days $6.08892/EA EA
1 1/4 300#, 400#, 600# - 1/8 GF1081-3460125-1/8 1-3 Working Days $7.84577/EA EA
1 1/2 150# - 1/8 GF1081-1500150-1/8 1-3 Working Days $7.11635/EA EA
1 1/2 300#, 400#, 600# - 1/8 GF1081-3460150-1/8 1-3 Working Days $10.67897/EA EA
2 150# - 1/8 GF1081-1500200-1/8 1-3 Working Days $10.24754/EA EA
2 300#, 400#, 600# - 1/8 GF1081-3460200-1/8 1-3 Working Days $12.02663/EA EA
2 1/2 150# - 1/8 GF1081-1500250-1/8 1-3 Working Days $13.94804/EA EA
3 150# - 1/8 GF1081-1500300-1/8 1-3 Working Days $12.52477/EA EA
3 300#, 400#, 600# - 1/8 GF1081-3460300-1/8 1-3 Working Days $15.88724/EA EA
4 150# - 1/8 GF1081-1500400-1/8 1-3 Working Days $17.29272/EA EA
4 300# - 1/8 GF1081-3000400-1/8 1-3 Working Days $22.70115/EA EA
5 150# - 1/8 GF1081-1500500-1/8 1-3 Working Days $19.6578/EA EA
6 150# - 1/8 GF1081-1500600-1/8 1-3 Working Days $21.94948/EA EA
6 300# - 1/8 GF1081-3000600-1/8 1-3 Working Days $31.98353/EA EA
8 150# - 1/8 GF1081-1500800-1/8 1-3 Working Days $30.70259/EA EA
8 300# - 1/8 GF1081-3000800-1/8 1-3 Working Days $42.87154/EA EA
10 150# - 1/8 GF1081-1501000-1/8 1-3 Working Days $39.97608/EA EA
10 300# - 1/8 GF1081-3001000-1/8 1-3 Working Days $54.27994/EA EA
12 150# - 1/8 GF1081-1501200-1/8 1-3 Working Days $56.486/EA EA
12 300# - 1/8 GF1081-3001200-1/8 1-3 Working Days $73.35175/EA EA
14 150# - 1/8 GF1081-1501400-1/8 1-3 Working Days $69.7402/EA EA
14 300# - 1/8 GF1081-3001400-1/8 1-3 Working Days $94.78974/EA EA
16 150# - 1/8 GF1081-1501600-1/8 1-3 Working Days $84.32871/EA EA
16 300# - 1/8 GF1081-3001600-1/8 1-3 Working Days $112.22479/EA EA
18 150# - 1/8 GF1081-1501800-1/8 1-3 Working Days $85.68082/EA EA
18 300# - 1/8 GF1081-3001800-1/8 1-3 Working Days $130.94078/EA EA
20 150# - 1/8 GF1081-1502000-1/8 1-3 Working Days $101.40794/EA EA
20 300# - 1/8 GF1081-3002000-1/8 1-3 Working Days $150.93772/EA EA
24 150# - 1/8 GF1081-1502400-1/8 1-3 Working Days $127.52494/EA EA
24 300# - 1/8 GF1081-3002400-1/8 1-3 Working Days $204.95079/EA EA
