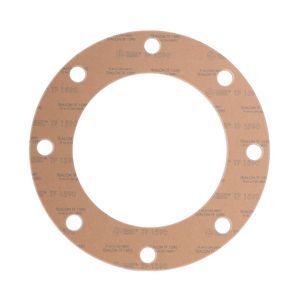

Tealon 1590 Full Face Gasket

Full Face gaskets are a flat sealing element, consisting of an inner and outer diameter, and a specified number of bolt holes, the center of which are evenly spaced around a bolt circle. Full face gaskets are designed to fill the entire space between flat-faced flanges, with bolt holes that match the size and arrangement of the bolt holes in the intended flanges. ASME B16.21 and ASME B16.47 govern the dimensions of full face gaskets for standard and large diameter pipe flanges. Teadit Tealon TF 1590 is a restructured PTFE material filled with silica and meets a wide range of aplications. It is suitable for general service, strong acids and moderate caustic solutions. It meets FDA conformance for service within food and pharmaceutical applications. TF 1590 has easily passed the Hot Compression Test with outstanding results.

Technical Data

Governing StandardsTealon 1590 Full Face Gasket

ASME B16.21	Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47	Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.

Service LimitsTealon 1590 Full Face Gasket

Temperature	Minimum Service: -450F (-268C)
	Maximum Service: 500F (260C)
Pressure	Maximum Service: 1200 psi (83 bar)
pH	0-14

Physical PropertiesTealon 1590 Full Face Gasket

Typical Physical Properties:
Color		Fawn
Compressibility 5000 psi - ASTM F36M		5-15%
Recovery - ASTM F36M		40%
Tensile Strength - ASTM F152		2030 psi (14 N/ mm^2)
Specific Gravity - ASTM D792		2.10 g/cm^3
Creep Relaxation - ASTM F38B		18%
Sealability - ASTM F37A		0.20 ml/h
Sealability - DIN 3535		<.015 cm^3 / min

Dimensional SpecificationsTealon 1590 Full Face Gasket

Per ASME B16.21-2016
		Pipe Diameter
		1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	3 1/2	4	5	6	8	10	12	14	16	18	20	24
Inside Diameter		0.84	1.06	1.31	1.66	1.91	2.38	2.88	3.50	4.00	4.50	5.56	6.62	8.62	10.75	12.75	14.00	16.00	18.00	20.00	24.00
Outside Diameter per Class	150#	3.50	3.88	4.25	4.63	5.00	6.00	7.00	7.50	8.50	9.00	10.00	11.00	13.50	16.00	19.00	21.00	23.50	25.00	27.50	32.00
	300#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.00	11.00	12.50	15.00	17.50	20.50	23.00	25.50	28.00	30.50	36.00
	600#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.75	13.00	14.00	16.50	20.00	22.00	23.75	27.00	29.25	32.00	37.00
Bolt Circle Diameter per Class	150#	2.38	2.75	3.13	3.50	3.88	4.75	5.50	6.00	7.00	7.50	8.50	9.50	11.75	14.25	17.00	18.75	21.25	22.75	25.00	29.50
	300#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	7.88	9.25	10.62	13.00	15.25	17.75	20.25	22.50	24.75	27.00	32.00
	600#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	8.50	10.50	11.50	13.75	17.00	19.25	20.75	23.75	25.75	28.50	33.00
Number of Bolt Holes per Class	150#	4	4	4	4	4	4	4	4	8	8	8	8	8	12	12	12	16	16	20	20
	300#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	16	20	20	24	24	24
	600#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	20	20	20	20	24	24
Bolt Hole Diameter per Class	150#	0.63	0.63	0.63	0.63	0.63	0.75	0.75	0.75	0.75	0.75	0.88	0.88	0.88	1.00	1.00	1.13	1.13	1.25	1.25	1.38
	300#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	0.88	0.88	0.88	0.88	1.00	1.12	1.25	1.25	1.38	1.38	1.38	1.62
	600#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	1.00	1.00	1.12	1.12	1.25	1.38	1.38	1.50	1.62	1.75	1.75	2.00

Per ASME B16.47-2017
Series A		Pipe Diameter
Series A		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	34.25	36.50	38.75	41.75	43.75	46.00	48.75	50.75	53.00	55.25	57.25	59.50	61.75	64.00	66.25	68.75	71.00	73.00
	300#	38.25	40.75	43.00	45.25	47.50	50.00	46.00	48.75	50.75	53.25	55.75	57.75	60.25	62.25	65.25	67.25	69.25	71.25
	600#	40.00	42.25	44.50	47.00	49.00	51.75	50.00	52.00	55.25	57.25	59.50	62.75	65.75	67.75	70.00	73.00	75.00	78.50
Bolt Circle Diameter per Class	150#	31.75	34.00	36.00	38.50	40.50	42.75	45.25	47.25	49.50	51.75	53.75	56.00	58.25	60.50	62.75	65.00	67.25	69.25
	300#	34.50	37.00	39.25	41.50	43.50	46.00	43.00	45.50	47.50	49.75	52.00	54.00	56.25	58.25	61.00	63.00	65.00	67.00
	600#	36.00	38.00	40.25	42.50	44.50	47.00	45.75	47.75	50.50	52.50	54.75	57.50	60.00	62.00	64.25	66.75	68.75	71.75
Number of Bolt Holes per Class	150#	24	28	28	28	32	32	32	36	36	40	40	44	44	44	44	48	48	52
	300#	28	28	28	28	28	32	32	32	32	32	28	32	32	32	28	28	32	32
	600#	28	28	28	28	28	28	28	32	28	32	32	32	28	32	32	32	32	28
Bolt Hole Diameter per Class	150#	1.38	1.38	1.38	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.88	1.88	1.88	1.88	1.88	1.88
	300#	1.75	1.75	1.88	2.00	2.00	2.12	1.62	1.75	1.75	1.88	2.00	2.00	2.12	2.12	2.38	2.38	2.38	2.38
	600#	2.00	2.12	2.12	2.38	2.38	2.62	2.38	2.38	2.62	2.62	2.62	2.88	3.12	3.12	3.12	3.38	3.38	3.62
Per ASME B16.47-2017
Series B		Pipe Diameter
Series B		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	30.94	32.94	34.94	37.06	39.56	41.62	44.25	46.25	48.25	50.25	52.81	54.81	56.81	58.81	61.00	63.00	65.94	67.94
	300#	34.12	36.25	39.00	41.50	43.62	46.12	48.12	50.12	52.50	54.50	57.50	59.50	61.50	63.50	65.88	69.50	71.94	73.94
	600#	35.00	37.50	40.25	42.75	45.75	47.75
Bolt Circle Diameter per Class	150#	29.31	31.31	33.31	35.44	37.69	39.75	42.12	44.12	46.12	48.12	50.56	52.56	54.56	56.56	58.75	60.75	63.44	65.44
	300#	31.62	33.75	36.25	38.50	40.62	42.88	44.88	46.88	49.00	51.00	53.75	55.75	57.75	59.75	62.12	65.00	67.44	69.44
	600#	31.75	34.00	36.50	38.75	41.50	43.50
Number of Bolt Holes per Class	150#	36	40	44	48	40	44	40	44	48	52	40	44	48	52	56	60	48	52
	300#	32	36	36	32	36	32	36	40	36	40	36	40	44	48	48	36	40	40
	600#	28	28	28	28	24	28
Bolt Hole Diameter per Class	150#	0.88	0.88	0.88	0.88	1.00	1.00	1.12	1.12	1.12	1.12	1.25	1.25	1.25	1.25	1.25	1.25	1.38	1.38
	300#	1.38	1.38	1.50	1.62	1.62	1.75	1.75	1.75	1.88	1.88	2.00	2.00	2.00	2.00	2.00	2.38	2.38	2.38
	600#	1.75	1.88	2.00	2.12	2.38	2.38

All dimensions are in inches.

Tealon 1590 Full Face Gasket

of 1

Sort By

Show

View

Pipe Diameter	Flange Rating	Series	Thickness	Item #	Availability	Price	Quantity
1/2	150#	-	1/16	GF1590-1500050	1-3 Working Days	$14.78265/EA	EA	EA
1/2	300#, 400#, 600#	-	1/16	GF1590-3460050	1-3 Working Days	$16.96987/EA	EA	EA
3/4	150#	-	1/16	GF1590-1500075	1-3 Working Days	$18.12005/EA	EA	EA
3/4	300#, 400#, 600#	-	1/16	GF1590-3460075	1-3 Working Days	$25.81306/EA	EA	EA
1	150#	-	1/16	GF1590-1500100	1-3 Working Days	$21.79686/EA	EA	EA
1	300#, 400#, 600#	-	1/16	GF1590-3460100	1-3 Working Days	$28.67909/EA	EA	EA
1 1/4	150#	-	1/16	GF1590-1500125	1-3 Working Days	$25.81306/EA	EA	EA
1 1/4	300#, 400#, 600#	-	1/16	GF1590-3460125	1-3 Working Days	$33.26095/EA	EA	EA
1 1/2	150#	-	1/16	GF1590-1500150	1-3 Working Days	$30.16866/EA	EA	EA
1 1/2	300#, 400#, 600#	-	1/16	GF1590-3460150	1-3 Working Days	$45.27185/EA	EA	EA
2	150#	-	1/16	GF1590-1500200	1-3 Working Days	$43.44288/EA	EA	EA
2	300#, 400#, 600#	-	1/16	GF1590-3460200	1-3 Working Days	$50.98504/EA	EA	EA
2 1/2	150#	-	1/16	GF1590-1500250	1-3 Working Days	$59.13058/EA	EA	EA
3	150#	-	1/16	GF1590-1500300	1-3 Working Days	$53.09685/EA	EA	EA
3	300#, 400#, 600#	-	1/16	GF1590-3460300	1-3 Working Days	$67.35154/EA	EA	EA
4	150#	-	1/16	GF1590-1500400	1-3 Working Days	$73.30985/EA	EA	EA
4	300#	-	1/16	GF1590-3000400	1-3 Working Days	$96.23804/EA	EA	EA
5	150#	-	1/16	GF1590-1500500	1-3 Working Days	$83.33622/EA	EA	EA
6	150#	-	1/16	GF1590-1500600	1-3 Working Days	$93.05147/EA	EA	EA
6	300#	-	1/16	GF1590-3000600	1-3 Working Days	$135.58929/EA	EA	EA
8	150#	-	1/16	GF1590-1500800	1-3 Working Days	$130.15893/EA	EA	EA
8	300#	-	1/16	GF1590-3000800	1-3 Working Days	$181.74734/EA	EA	EA
10	150#	-	1/16	GF1590-1501000	1-3 Working Days	$169.47247/EA	EA	EA
10	300#	-	1/16	GF1590-3001000	1-3 Working Days	$230.11148/EA	EA	EA
12	150#	-	1/16	GF1590-1501200	1-3 Working Days	$239.46377/EA	EA	EA
12	300#	-	1/16	GF1590-3001200	1-3 Working Days	$310.9635/EA	EA	EA
14	150#	-	1/16	GF1590-1501400	1-3 Working Days	$295.6529/EA	EA	EA
14	300#	-	1/16	GF1590-3001400	1-3 Working Days	$401.8466/EA	EA	EA
16	150#	-	1/16	GF1590-1501600	1-3 Working Days	$357.49867/EA	EA	EA
16	300#	-	1/16	GF1590-3001600	1-3 Working Days	$475.75983/EA	EA	EA
18	150#	-	1/16	GF1590-1501800	1-3 Working Days	$363.23071/EA	EA	EA
18	300#	-	1/16	GF1590-3001800	1-3 Working Days	$555.10341/EA	EA	EA
20	150#	-	1/16	GF1590-1502000	1-3 Working Days	$429.90346/EA	EA	EA
20	300#	-	1/16	GF1590-3002000	1-3 Working Days	$639.87736/EA	EA	EA
24	150#	-	1/16	GF1590-1502400	1-3 Working Days	$540.62245/EA	EA	EA
24	300#	-	1/16	GF1590-3002400	1-3 Working Days	$868.85752/EA	EA	EA
1/2	150#	-	1/8	GF1590-1500050-1/8	1-3 Working Days	$23.89962/EA	EA	EA
1/2	300#, 400#, 600#	-	1/8	GF1590-3460050-1/8	1-3 Working Days	$27.43579/EA	EA	EA
3/4	150#	-	1/8	GF1590-1500075-1/8	1-3 Working Days	$29.29533/EA	EA	EA
3/4	300#, 400#, 600#	-	1/8	GF1590-3460075-1/8	1-3 Working Days	$41.73289/EA	EA	EA
1	150#	-	1/8	GF1590-1500100-1/8	1-3 Working Days	$35.23975/EA	EA	EA
1	300#, 400#, 600#	-	1/8	GF1590-3460100-1/8	1-3 Working Days	$46.36649/EA	EA	EA
1 1/4	150#	-	1/8	GF1590-1500125-1/8	1-3 Working Days	$41.73289/EA	EA	EA
1 1/4	300#, 400#, 600#	-	1/8	GF1590-3460125-1/8	1-3 Working Days	$53.77415/EA	EA	EA
1 1/2	150#	-	1/8	GF1590-1500150-1/8	1-3 Working Days	$48.77474/EA	EA	EA
1 1/2	300#, 400#, 600#	-	1/8	GF1590-3460150-1/8	1-3 Working Days	$73.1926/EA	EA	EA
2	150#	-	1/8	GF1590-1500200-1/8	1-3 Working Days	$70.23563/EA	EA	EA
2	300#, 400#, 600#	-	1/8	GF1590-3460200-1/8	1-3 Working Days	$82.42931/EA	EA	EA
2 1/2	150#	-	1/8	GF1590-1500250-1/8	1-3 Working Days	$95.59849/EA	EA	EA
3	150#	-	1/8	GF1590-1500300-1/8	1-3 Working Days	$85.84354/EA	EA	EA
3	300#, 400#, 600#	-	1/8	GF1590-3460300-1/8	1-3 Working Days	$108.88961/EA	EA	EA
4	150#	-	1/8	GF1590-1500400-1/8	1-3 Working Days	$118.52262/EA	EA	EA
4	300#	-	1/8	GF1590-3000400-1/8	1-3 Working Days	$155.59142/EA	EA	EA
5	150#	-	1/8	GF1590-1500500-1/8	1-3 Working Days	$134.7326/EA	EA	EA
6	150#	-	1/8	GF1590-1500600-1/8	1-3 Working Days	$150.43959/EA	EA	EA
6	300#	-	1/8	GF1590-3000600-1/8	1-3 Working Days	$219.21198/EA	EA	EA
8	150#	-	1/8	GF1590-1500800-1/8	1-3 Working Days	$210.43252/EA	EA	EA
8	300#	-	1/8	GF1590-3000800-1/8	1-3 Working Days	$293.83733/EA	EA	EA
10	150#	-	1/8	GF1590-1501000-1/8	1-3 Working Days	$273.99211/EA	EA	EA
10	300#	-	1/8	GF1590-3001000-1/8	1-3 Working Days	$372.02933/EA	EA	EA
12	150#	-	1/8	GF1590-1501200-1/8	1-3 Working Days	$387.1495/EA	EA	EA
12	300#	-	1/8	GF1590-3001200-1/8	1-3 Working Days	$502.74564/EA	EA	EA
14	150#	-	1/8	GF1590-1501400-1/8	1-3 Working Days	$477.99246/EA	EA	EA
14	300#	-	1/8	GF1590-3001400-1/8	1-3 Working Days	$649.67955/EA	EA	EA
16	150#	-	1/8	GF1590-1501600-1/8	1-3 Working Days	$577.98068/EA	EA	EA
16	300#	-	1/8	GF1590-3001600-1/8	1-3 Working Days	$769.17766/EA	EA	EA
18	150#	-	1/8	GF1590-1501800-1/8	1-3 Working Days	$587.24788/EA	EA	EA
18	300#	-	1/8	GF1590-3001800-1/8	1-3 Working Days	$897.45523/EA	EA	EA
20	150#	-	1/8	GF1590-1502000-1/8	1-3 Working Days	$695.04005/EA	EA	EA
20	300#	-	1/8	GF1590-3002000-1/8	1-3 Working Days	$1,034.51225/EA	EA	EA
24	150#	-	1/8	GF1590-1502400-1/8	1-3 Working Days	$874.04335/EA	EA	EA
24	300#	-	1/8	GF1590-3002400-1/8	1-3 Working Days	$1,404.71253/EA	EA	EA
