18-8 SS Flat Washer

Selected 18-8 Stainless Steel Serrated Flange Lock Nut2 18-8 Stainless Steel Commercial Flat Washer
18-8 Stainless Steel Serrated Flange Lock Nut2 18-8 Stainless Steel Commercial Flat Washer

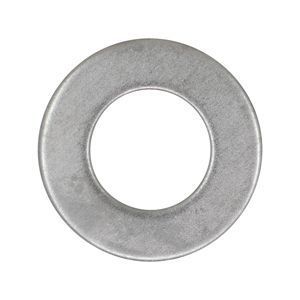

18-8 stainless steel commercial flat washers are used under bolt heads or nuts to increase the bearing surface area, or to offer protection so that the nut or bolt can be rotated without distortion of the bearing surface. Flat washers are also used to give tightness to a joint, to prevent leakage, and especially to distribute pressure under the head of a bolt or nut. Dimensional specifications are governed by ASME B18.21.1. Commercial flat washers generally have a larger outer diameter than SAE (Society of Automotive Engineers) flat washers, and can be utilized in nearly any application. 18-8 stainless steel fasteners are commonly used in applications that require general atmospheric corrosion resistance, such as chemical and food processing equipment. Stainless steel has a higher corrosion resistance than carbon steel.

Products

Loading algolia series attribute grid...

Dimensional Specifications

18-8 stainless steel flat washer dimensions
Per ASME B18.21.1-2009
Size Nominal A B C
Inside
Diameter
Outside
Diameter
Mean Section
Thickness
#4 0.1120 0.1150 0.3125 0.0310
#6 0.1380 0.1563 0.3750 0.0310
#8 0.1640 0.1719 0.3750 0.0310
#10 0.1900 0.2031 0.3750 0.0500
#12 0.2160 0.2500 0.5625 0.0500
1/4 0.2500 0.2810 0.6250 0.0500
5/16 0.3125 0.3430 0.7500 0.0500
3/8 0.3750 0.4060 0.8750 0.0500
7/16 0.4375 0.5000 1.1250 0.0620
1/2 0.5000 0.5310 1.2500 0.0620
9/16 0.5625 0.6250 1.3750 0.0780
5/8 0.6250 0.6870 1.5000 0.0780
3/4 0.7500 0.8120 1.8750 0.1090
7/8 0.8750 0.9370 2.0000 0.1090
1 1.0000 1.0620 2.0000 0.1250
1 1/8 1.1250 1.1870 2.5000 0.1250
1 1/4 1.2500 1.3120 2.7500 0.1250
1 3/8 1.3750 1.5000 3.2500 0.1400
1 1/2 1.5000 1.5620 3.2500 0.1400
1 3/4 1.7500 1.8120 3.5000 0.1400
2 2.0000 2.1250 4.0000 0.1870
  1. All dimensions are in inches.

Governing Standards

ASME B18.21.1 Covers the dimensional requirements, physical properties, and related test methods for helical spring-lock washers (#0 through 3 inches), tooth-lock washers (#2 through 1 ¼ inches), and plain washers (#0 through 3 inches).
