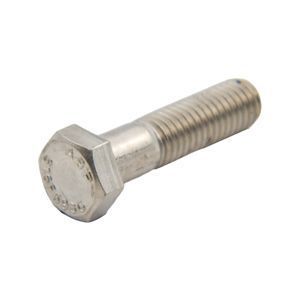

304 SS Hex Cap Screw
304 SS Hex Cap Screw
Manufacturers:
304 Stainless Steel hex head cap screws are common fasteners manufactured from austenitic 304 stainless steel. They have a chromium content of 17-19% and nickel content of 8-10%. Dimensional specifications are governed by ASME B18.2.1. Stainless steel fasteners are commonly used in applications that require general atmospheric corrosion resistance, such as chemical and food processing equipment. Stainless steel has a higher corrosion resistance than carbon steel.
Products
Governing Standards
| ASME B18.2.1 | Covers the complete general and dimensional data for multiple types of inch series square and hex bolts and screws. |
| ASME B1.1 UNC & UNF Class 2A | Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads. |
304 Stainless Steel Material Marking
Dimensional Specifications
| Per ASME B18.2.1-2012 | |||||||||||||||||
| Nominal Diameter |
UNC | UNF | E | F | G | H | J | LT | Y | ||||||||
| Body Diameter | Width Across Flats | Width Across Corners |
Head Height | Wrench Height |
Thread Length | Transition Length |
|||||||||||
| Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Min | Min | Lengths up to 6" |
Lengths > 6" |
Max | ||||
| 1/4 | 0.2500 | 20 | 28 | 0.2500 | 0.2405 | 7/16 | 0.4380 | 0.4280 | 0.5050 | 0.4880 | 5/32 | 0.1630 | 0.1500 | 0.1060 | 0.7500 | 1.0000 | 0.2500 |
| 5/16 | 0.3125 | 18 | 24 | 0.3125 | 0.3065 | 1/2 | 0.5000 | 0.4890 | 0.5770 | 0.5570 | 13/64 | 0.2110 | 0.1950 | 0.1400 | 0.8750 | 1.1250 | 0.2750 |
| 3/8 | 0.3750 | 16 | 24 | 0.3750 | 0.3690 | 9/16 | 0.5620 | 0.5510 | 0.6500 | 0.6280 | 15/64 | 0.2430 | 0.2260 | 0.1600 | 1.0000 | 1.2500 | 0.3120 |
| 7/16 | 0.4375 | 14 | 20 | 0.4375 | 0.4305 | 5/8 | 0.6250 | 0.6120 | 0.7220 | 0.6980 | 9/32 | 0.2910 | 0.2720 | 0.1950 | 1.1250 | 1.3750 | 0.3570 |
| 1/2 | 0.5000 | 13 | 20 | 0.5000 | 0.4930 | 3/4 | 0.7500 | 0.7360 | 0.8660 | 0.8400 | 5/16 | 0.3230 | 0.3020 | 0.2150 | 1.2500 | 1.5000 | 0.3850 |
| 9/16 | 0.5625 | 12 | 18 | 0.5625 | 0.5545 | 13/16 | 0.8120 | 0.7980 | 0.9380 | 0.9100 | 23/64 | 0.3710 | 0.3480 | 0.2500 | 1.3750 | 1.6250 | 0.4170 |
| 5/8 | 0.6250 | 11 | 18 | 0.6250 | 0.6170 | 15/16 | 0.9380 | 0.9220 | 1.0830 | 1.0510 | 25/64 | 0.4030 | 0.3780 | 0.2690 | 1.5000 | 1.7500 | 0.4550 |
| 3/4 | 0.7500 | 10 | 16 | 0.7500 | 0.7410 | 1 1/8 | 1.1250 | 1.1000 | 1.2990 | 1.2540 | 15/32 | 0.4830 | 0.4550 | 0.3240 | 1.7500 | 2.0000 | 0.5000 |
| 7/8 | 0.8750 | 9 | 14 | 0.8750 | 0.8660 | 1 5/16 | 1.3120 | 1.2850 | 1.5160 | 1.4650 | 35/64 | 0.5630 | 0.5310 | 0.3780 | 2.0000 | 2.2500 | 0.5560 |
| 1 | 1.0000 | 8 | 14 | 1.0000 | 0.9900 | 1 1/2 | 1.5000 | 1.4690 | 1.7320 | 1.6750 | 39/64 | 0.6270 | 0.5910 | 0.4160 | 2.2500 | 2.5000 | 0.6250 |
| 1 1/8 | 1.1250 | 7 | 12 | 1.1250 | 1.1140 | 1 11/16 | 1.6880 | 1.6310 | 1.9490 | 1.8590 | 11/16 | 0.7180 | 0.6580 | 0.4610 | 2.5000 | 2.7500 | 0.7140 |
| 1 1/4 | 1.2500 | 7 | 12 | 1.2500 | 1.2390 | 1 7/8 | 1.8750 | 1.8120 | 2.1650 | 2.0660 | 25/32 | 0.8130 | 0.7490 | 0.5300 | 2.7500 | 3.0000 | 0.7140 |
| 1 3/8 | 1.3750 | 6 | 12 | 1.3750 | 1.3630 | 2 1/16 | 2.0620 | 1.9940 | 2.3820 | 2.2730 | 27/32 | 0.8780 | 0.8100 | 0.5690 | 3.0000 | 3.2500 | 0.8330 |
| 1 1/2 | 1.5000 | 6 | 12 | 1.5000 | 1.4880 | 2 1/4 | 2.2500 | 2.1750 | 2.5980 | 2.4800 | 15/16 | 0.9740 | 0.9020 | 0.6400 | 3.2500 | 3.5000 | 0.8330 |
- All dimensions are in inches.
- Usable thread length for Hex Head Cap Screws under 6 1/4" long can be approximated by the equation THREAD LENGTH = (2 X DIAMETER) + 1/4″
