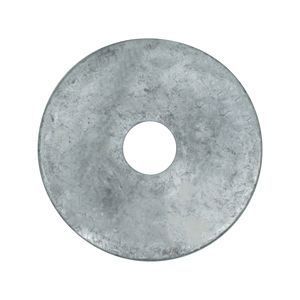

Round Plate Washer, Galvanized
Round Plate Washer, Galvanized
Manufacturers:
Round plate washers, often called dock washers are similar to a fender washer, but larger and thicker. With up to a 4" outside diameter, this thick flat washer is ideal for heavy duty load bearing applications. Available in hot dip galvanized finish, which provides a corrosion resistant zinc coating.
Products
Dimensional Specifications
| Full Size | A | B | C | ||||||
| Inside Diameter | Side Length | Thickness | |||||||
| Basic | Min | Max | Basic | Min | Max | Basic | Min | Max | |
| 1/2 X 2 1/4 X 3/16 | 9/16 | 0.5570 | 0.5770 | 2.2500 | 2.2430 | 2.2800 | 0.1875 | 0.1580 | 0.2180 |
| 5/8 X 2 1/2 X 1/4 | 11/16 | 0.6810 | 0.7180 | 2.5000 | 2.4930 | 2.5230 | 0.2500 | 0.2190 | 0.2810 |
| 3/4 X 3 X 1/4 | 13/16 | 0.8050 | 0.8420 | 3.0000 | 2.9930 | 3.0230 | 0.2500 | 0.2190 | 0.2810 |
| 7/8 X 3 1/2 X 5/16 | 15/16 | 0.9310 | 0.9680 | 3.5000 | 3.4900 | 3.5450 | 0.3125 | 0.2820 | 0.3440 |
| 1 X 4 X 3/8 | 1 1/16 | 1.0550 | 1.0920 | 4.0000 | 3.9900 | 4.0450 | 0.3750 | 0.3440 | 0.4060 |
- All dimensions are in inches.
