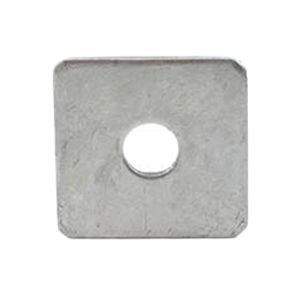

Square Washer, Galvanized

Square Washer, Galvanized
Manufacturers:
Square Washers called construction square plate washers can be used instead of round washer for applications such as timber building and concrete floors; they are used with all fasteners for larger load distribution and bolting through a wall or timber. While disc washers operate solely as load distributors, square flat washers serve a second role. Their thick metal forms have that standard bolt opening in the center, plus a wide surface area, a feature that spreads torque and head load, but they also perform as shims. That means the bolt crown can be lifted away from the anchored part. It also means that a multi surface project won't deform or bend when the fastener is tightened. Available in hot dip galvanized finish, which provides a corrosion resistant zinc coating.
Products
Dimensional Specifications

| Full Size | A | B | C | ||||||
| Inside Diameter | Side Length | Thickness | |||||||
| Basic | Min | Max | Basic | Min | Max | Basic | Min | Max | |
| 1/2 X 2 X 1/8 | 9/16 | 0.560 | 0.580 | 2.000 | 1.970 | 2.000 | 0.1250 | 0.0950 | 0.130 |
| 1/2 X 3 X 1/4 | 9/16 | 0.560 | 0.580 | 3.000 | 2.970 | 3.000 | 0.2500 | 0.2200 | 0.250 |
| 5/8 X 2 X 1/8 | 11/16 | 0.680 | 0.720 | 2.000 | 1.970 | 2.000 | 0.1250 | 0.0950 | 0.130 |
| 5/8 X 3 X 1/4 | 11/16 | 0.680 | 0.720 | 3.000 | 2.970 | 3.000 | 0.2500 | 0.2200 | 0.250 |
| 3/4 X 2 X 1/8 | 13/16 | 0.810 | 0.840 | 2.000 | 1.970 | 2.000 | 0.1250 | 0.0950 | 0.130 |
| 3/4 X 3 X 1/4 | 13/16 | 0.810 | 0.840 | 3.000 | 2.970 | 3.000 | 0.2500 | 0.2200 | 0.250 |
| 7/8 X 3 X 5/16 | 15/16 | 0.930 | 0.950 | 3.000 | 2.970 | 3.000 | 0.3100 | 0.3440 | 0.282 |
| 1 X 3 1/2 X 3/8 | 1 1/16 | 1.060 | 1.100 | 3.500 | 3.470 | 3.500 | 0.3750 | 0.3450 | 0.380 |
- All dimensions are in inches.
