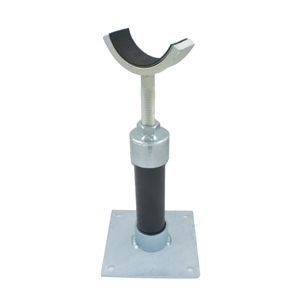

Standon S92 Saddle Support
Standon S92 Saddle Support
Manufacturers:
The Standon model S92 pipe support is designed for ductile iron pipes, featuring a nearly 50% circumferential cradle and a pipe-to-saddle gap of less than 0.125", ensuring reliable performance. It fits standard IPS pipes without requiring threading and includes an oversized anchorable base plate.
Products
Governing Standards
Materials
Flange Plate: ASTM A36 or 304 Stainless Steel
Collar/Base Cups: ASTM A53 tubing or 304 Stainless Steel
Threaded Stud: ASTM A36 (rolled thread), Grade ASTM A307 or 304 Stainless Steel
Base Plate: ASTM A36 Sheet Steel (0.25' plate) or 304 Stainless Steel
Finish: Electro-galvanized (not applicable to stainless steel pipe supports)
Dimensional Specifications
| Support Size | Pipe O.D. | Strap Size | Thread Stud | Base Plate | Extension Pipe Req'd | Min. Distance to Floor |
| 2 | 2.500 | 3/8" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 2 1/2 | 3.00 | 3/8" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 3 | 3.96 | 3/8" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 4 | 4.80 | 1/2" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 6 | 6.90 | 1/2" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 8 | 9.05 | 1/2" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 10 | 11.100 | 1/2" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 12 | 13.20 | 1/2" x 2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 14 | 15.300 | 5/8" x 3" | 1 1/2" x 6" | 8" x 8" x 1/2" | 3" SCH. 40 | 9.5" |
| 16 | 17.400 | 5/8" x 3" | 1 1/2" x 6" | 8" x 8" x 1/2" | 3" SCH. 40 | 9.5" |
| 18 | 19.500 | 3/4" x 4" | 2" x 6" | 8" x 8" x 1/2" | 4" SCH. 40 | 10" |
| 20 | 21.60 | 3/4" x 4" | 2" x 6" | 8" x 8" x 1/2" | 4" SCH. 40 | 10" |
| 24 | 25.80 | 3/4" x 4" | 2 " x 6" | 8" x 8" x 1/2" | 4" SCH. 40 | 10" |
| 30 | 32.00 | 1" x 5" | 3" x 6" | 15" x 15" x 1/2" | 6" DIP | 10" |
| 36 | 38.30 | 1" x 5" | 3" x 6" | 15" x 15" x 1/2" | 6" DIP | 10" |
