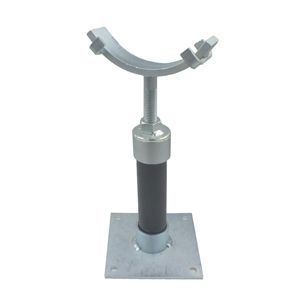

Standon S96 Flange Cradle Support
Standon S96 Flange Cradle Support
Manufacturers:
The Standon Model S96 Flange Cradle Pipe Support is designed for both new installations and as an economical replacement for existing systems. Its unique saddle design fits securely under flange configurations, with centering tabs to maintain position during seismic activity, while avoiding bolt conflicts. The support features an oversized base and an adjustable collar for up to 4" of fine adjustment.
Products
Governing Standards
Materials
Flange Plate: ASTM A36 or 304 Stainless Steel
Collar/Base Cups: ASTM A53 D.O.M tubing or 304 Stainless Steel
Threaded Stud: ASTM A36 (rolled thread), Grade ASTM A307 or 304 Stainless Steel
Base Plate: ASTM A36 Sheet Steel (0.25' plate) or 304 Stainless Steel
Finish: Electro-galvanized (not applicable to stainless steel supports)
Dimensional Specifications
| Flange Cl 125 | Cradle Material | Thread Stud | Base Plate | Extension Pipe Req'd | Min. Distance to Floor |
| 2 | 3/8" x 1 1/2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 2 1/2 | 3/8" x 1 1/2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 3 | 3/8" x 1 1/2" | 1" x 6" | 4" x 6" x 1/4" | 2" SCH. 40 | 7" |
| 4 | 1/2" x 2" | 1" x 6" | 8" x 8" x 1/4" | 2" SCH. 40 | 7" |
| 6 | 1/2" x 2" | 1" x 6" | 8" x 8" x 1/4" | 2" SCH. 40 | 7" |
| 8 | 1/2" x 2 1/2" | 1" x 6" | 8" x 8" x 1/4" | 2" SCH. 40 | 7" |
| 10 | 1/2" x 2 1/2" | 1" x 6" | 8" x 8" x 1/4" | 2" SCH. 40 | 7" |
| 12 | 1/2" x 2 1/2" | 1" x 6" | 8" x 8" x 1/4" | 2" SCH. 40 | 7" |
| 14 | 5/8" x 3" | 1 1/2" x 6" | 8" x 8" x 1/2" | 3" SCH. 40 | 9.5" |
| 16 | 5/8" x 3" | 1 1/2" x 6" | 8" x 8" x 1/2" | 3" SCH. 40 | 9.5" |
| 18 | 3/4" x 3 1/2" | 2" x 6" | 8" x 8" x 1/2" | 4" SCH. 40 | 10" |
| 20 | 3/4" x 3 1/2" | 2" x 6" | 8" x 8" x 1/2" | 4" SCH. 40 | 10" |
| 24 | 3/4" x 4" | 2" x 6" | 8" x 8" x 1/2" | 4" SCH. 40 | 10" |
