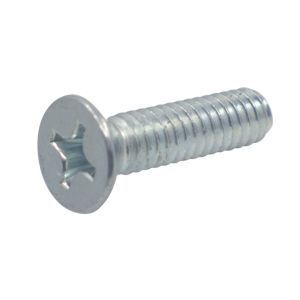

#8-32 X 1/2 PHILLIPS FLAT HEAD MACHINE SCREW, PLATED

$0.01259/EA

Quantity	Price
Quantity	Price
1	$0.01259/ EA
1610	$0.01175/ EA
6440	$0.0106/ EA
25730	$0.00663/ EA

In Stock

Product Specification
Dimensional Specifications

Product Specification

Diameter	#8
Drive Type	Phillips
Drive Size	Phillips #2
Length	1/2
Thread Length	1/2
Point Type	Blunt
Grades	Carbon Steel
Material	Steel
Finish	Plated
Origin	Unrestricted Origin
Weight	0.00311,

Dimensional Specifications

Dimensional SpecificationsType 2A Threads for Machine Screws

Type 2A Threads for Machine Screws dimensions

ASME B1.1 (2008)
Nominal Size	Threads per Inch	Allowance	Major Diameter		Pitch Diameter			Stress Area in²	Tensile Strength, ^a lb., min. (STEEL screws only)
			Major Diameter		Pitch Diameter
			Max	Min	Max	Min	Tolerance
#0	80	0.0005	0.0595	0.0563	0.0514	0.0496	0.001762	0.00180	-
#1	64	0.0006	0.0724	0.0686	0.0623	0.0603	0.001970	0.00263	-
#1	72	0.0006	0.0724	0.0689	0.0634	0.0615	0.001899	0.00278	-
#2	56	0.0006	0.0854	0.0813	0.0738	0.0717	0.002127	0.00370	-
#2	64	0.0006	0.0854	0.0816	0.0753	0.0733	0.002040	0.00394	-
#3	48	0.0007	0.0983	0.0938	0.0848	0.0825	0.002302	0.00487	-
#3	56	0.0007	0.0983	0.0942	0.0867	0.0845	0.002191	0.00523	-
#4	40	0.0008	0.1112	0.1061	0.0950	0.0925	0.002507	0.00604	360
#4	48	0.0007	0.1113	0.1068	0.0978	0.0954	0.002361	0.00661	396
#5	40	0.0008	0.1242	0.1191	0.1080	0.1054	0.002562	0.00796	470
#5	44	0.0007	0.1243	0.1195	0.1095	0.1070	0.002484	0.00830	498
#6	32	0.0008	0.1372	0.1312	0.1169	0.1141	0.002820	0.00909	550
#6	40	0.0008	0.1372	0.1321	0.1210	0.1184	0.002614	0.01015	609
#8	32	0.0009	0.1631	0.1571	0.1428	0.1399	0.002916	0.01400	850
#8	36	0.0008	0.1632	0.1577	0.1452	0.1424	0.002804	0.01474	884
#10	24	0.0010	0.1890	0.1818	0.1619	0.1586	0.003319	0.01750	1050
#10	32	0.0009	0.1891	0.1831	0.1688	0.1658	0.003004	0.02000	1200
#12	24	0.0010	0.2150	0.2078	0.1879	0.1845	0.003400	0.02420	1450
#12	28	0.0010	0.2150	0.2085	0.1918	0.1886	0.003224	0.02580	1548
1/4	20	0.0011	0.2489	0.2408	0.2164	0.2127	0.003731	0.03180	1900
1/4	28	0.0010	0.2490	0.2425	0.2258	0.2225	0.003322	0.03640	2200
5/16	18	0.0012	0.3113	0.3026	0.2752	0.2712	0.004041	0.05240	3150
5/16	24	0.0011	0.3114	0.3042	0.2843	0.2806	0.003660	0.05800	3480
3/8	16	0.0013	0.3737	0.3643	0.3331	0.3287	0.004363	0.07750	4650
3/8	24	0.0011	0.3739	0.3667	0.3468	0.3430	0.003804	0.08780	5268
1/2	13	0.0015	0.4985	0.4876	0.4485	0.4435	0.004965	0.14190	8500
1/2	20	0.0013	0.4987	0.4906	0.4662	0.4619	0.004288	0.15990	9594

Tolerance on Length	Nominal Screw Size	Nominal Screw Length
		Up to 1/2 in., incl.	Over 1/2 to 1 in., incl.	Over 1 to 2 in., incl.	Over 2 in.
	0 thru 12	-0.02	-0.03	-0.06	-0.09
L	1/4 thru 3/4	-0.03	-0.03	-0.06	-0.09

^a Tensile strength values are based on 60,000 psi and apply to carbon steel screws and SEMS only. Hex and Hex Washer head machine screws of sufficient length may be wedge tensile tested. Other head styles may be axial tensile tested.
All dimensions are in inches.

Dimensional SpecificationsPhillips Flat Head for Machine Screws

Slotted Flat Head for Machine Screws dimensions

ASME B18.6.3-2013
Nominal Size	A		H		J		T		M	R	N	F		G	Phillips Drive Size
	Head Dimensions				Slot Dimensions				Phillips Dimensions			Protrusion Above Gaging Diameter		Gaging Diameter
	Head Dimensions				Slot Dimensions				Phillips Dimensions
	Diameter		Height		Width		Depth		Diam.	Depth	Width
	Max	Min	Max	Min	Max	Min	Max	Min	Diam.	Depth	Width	Max	Min
#0	0.112	0.096	0.035	0.026	0.023	0.016	0.015	0.010	0.062	0.035	0.014	0.026	0.016	0.078	0
#1	0.137	0.120	0.043	0.033	0.026	0.019	0.019	0.012	0.070	0.043	0.015	0.028	0.016	0.101	0
#2	0.162	0.144	0.051	0.040	0.031	0.023	0.023	0.015	0.096	0.055	0.017	0.029	0.017	0.124	1
#3	0.187	0.167	0.059	0.047	0.035	0.027	0.027	0.017	0.100	0.060	0.018	0.031	0.018	0.148	1
#4	0.212	0.191	0.067	0.055	0.039	0.031	0.030	0.020	0.122	0.081	0.018	0.032	0.019	0.172	1
#5	0.237	0.215	0.075	0.062	0.043	0.035	0.034	0.022	0.148	0.074	0.027	0.034	0.020	0.196	2
#6	0.262	0.238	0.083	0.069	0.048	0.039	0.038	0.024	0.168	0.094	0.029	0.036	0.021	0.220	2
#8	0.312	0.285	0.100	0.084	0.054	0.045	0.045	0.029	0.182	0.110	0.030	0.039	0.023	0.267	2
#10	0.362	0.333	0.116	0.098	0.060	0.050	0.053	0.034	0.198	0.124	0.032	0.042	0.025	0.313	2
#12	0.412	0.380	0.132	0.112	0.067	0.056	0.060	0.039	0.262	0.144	0.035	0.045	0.027	0.362	3
1/4	0.477	0.442	0.153	0.131	0.075	0.064	0.070	0.046	0.276	0.160	0.036	0.050	0.029	0.424	3
5/16	0.597	0.556	0.191	0.165	0.084	0.072	0.088	0.058	0.358	0.205	0.061	0.057	0.034	0.539	4
3/8	0.717	0.670	0.230	0.200	0.094	0.081	0.106	0.070	0.386	0.234	0.065	0.065	0.039	0.653	4
1/2	0.815	0.765	0.223	0.186	0.106	0.091	0.103	0.065	0.418	0.265	0.069	0.081	0.049	0.739	4

All dimensions are in inches.
