Item #: WL8P025

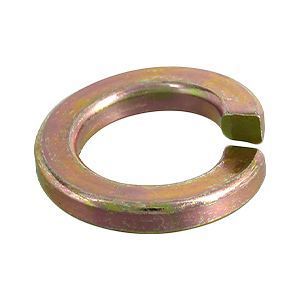

1/4 THRU HARDENED SPLIT LOCK WASHER, PLATED

$0.03047/EA

Quantity	Price
Quantity	Price
1	$0.03047/ EA
2130	$0.02854/ EA
8520	$0.02545/ EA
34050	$0.01676/ EA

Qty

In Stock

Product Specification
Governing Standards
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsThru Hardened Split Lock Washer

Split Lock Washer dimensions

Per ASME B18.21.1-2009
Size	Nominal	A		B	T	W	BW
		Inside Diameter		Outside Diameter	Mean Section Thickness	Section Width	Bearing Width
		Max	Min	Max	Min	Min	Min
1/4	0.2500	0.2600	0.2520	0.4870	0.0620	0.1090	0.0760
5/16	0.3125	0.3220	0.3140	0.5830	0.0780	0.1250	0.0870
3/8	0.3750	0.3850	0.3770	0.6800	0.0940	0.1410	0.0990
7/16	0.4375	0.4500	0.4400	0.7760	0.1090	0.1560	0.1090
1/2	0.5000	0.5120	0.5020	0.8690	0.1250	0.1710	0.1200
9/16	0.5625	0.5740	0.5640	0.9650	0.1410	0.1880	0.1320
5/8	0.6250	0.6410	0.6280	1.0730	0.1560	0.2090	0.1420
3/4	0.7500	0.7660	0.7530	1.2650	0.1880	0.2340	0.1640
7/8	0.8750	0.8940	0.8780	1.4590	0.2190	0.2660	0.1860
1	1.0000	1.0240	1.0030	1.6560	0.2500	0.2970	0.2080
1 1/8	1.1250	1.1530	1.1290	1.8470	0.2810	0.3280	0.2300
1 1/4	1.2500	1.2800	1.2540	2.0360	0.3120	0.3590	0.2510
1 3/8	1.3750	1.4080	1.3790	2.2190	0.3440	0.3910	0.2740
1 1/2	1.5000	1.5340	1.5040	2.4190	0.3750	0.4220	0.2950
1 5/8	1.6250	1.6630	1.6330	2.5530	0.3890	0.4240	0.2970
1 3/4	1.7500	1.7890	1.7580	2.6790	0.3890	0.4240	0.2970
1 7/8	1.8750	1.9140	1.8830	2.8110	0.4220	0.4270	0.2990
2	2.0000	2.0390	2.0080	2.9360	0.4220	0.4270	0.2990

All dimensions are in inches.
