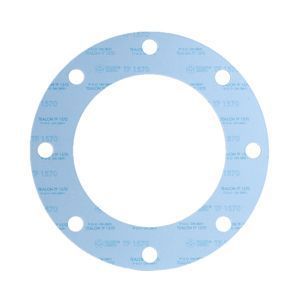

1/2 300#/400#/600# 1/16 TEADIT TEALON 1570 FULL FACE GASKET

$18.20569/EA

Quantity	Price
Quantity	Price
1	$18.20569/ EA
200	$16.99137/ EA
800	$12.44177/ EA
2400	$8.98269/ EA

1-3 Working Days

Product Specification
Governing Standards
Service Limits
Physical Properties
Dimensional Specifications

Product Specification

Pipe Diameter	1/2
Flange Rating	300#,400#,600#
Full Face or Ring	Full Face
Inside Diameter	0.8438
Outside Diameter	3.7500
Thickness	1/16
Filler/Binder Material	Glass Micro Spheres
Sheet Material	Teadit TF 1570
Bolt Hole Circle	2.625
# of Bolt Holes	4
Bolt Hole Diameter	0.625
Material	PTFE - Restructured
Origin	Unrestricted Origin
Weight	0.0520863,

Dimensional Specifications

Dimensional SpecificationsTealon 1570 Full Face Gasket

Per ASME B16.21-2016
		Pipe Diameter
		1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	3 1/2	4	5	6	8	10	12	14	16	18	20	24
Inside Diameter		0.84	1.06	1.31	1.66	1.91	2.38	2.88	3.50	4.00	4.50	5.56	6.62	8.62	10.75	12.75	14.00	16.00	18.00	20.00	24.00
Outside Diameter per Class	150#	3.50	3.88	4.25	4.63	5.00	6.00	7.00	7.50	8.50	9.00	10.00	11.00	13.50	16.00	19.00	21.00	23.50	25.00	27.50	32.00
	300#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.00	11.00	12.50	15.00	17.50	20.50	23.00	25.50	28.00	30.50	36.00
	600#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.75	13.00	14.00	16.50	20.00	22.00	23.75	27.00	29.25	32.00	37.00
Bolt Circle Diameter per Class	150#	2.38	2.75	3.13	3.50	3.88	4.75	5.50	6.00	7.00	7.50	8.50	9.50	11.75	14.25	17.00	18.75	21.25	22.75	25.00	29.50
	300#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	7.88	9.25	10.62	13.00	15.25	17.75	20.25	22.50	24.75	27.00	32.00
	600#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	8.50	10.50	11.50	13.75	17.00	19.25	20.75	23.75	25.75	28.50	33.00
Number of Bolt Holes per Class	150#	4	4	4	4	4	4	4	4	8	8	8	8	8	12	12	12	16	16	20	20
	300#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	16	20	20	24	24	24
	600#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	20	20	20	20	24	24
Bolt Hole Diameter per Class	150#	0.63	0.63	0.63	0.63	0.63	0.75	0.75	0.75	0.75	0.75	0.88	0.88	0.88	1.00	1.00	1.13	1.13	1.25	1.25	1.38
	300#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	0.88	0.88	0.88	0.88	1.00	1.12	1.25	1.25	1.38	1.38	1.38	1.62
	600#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	1.00	1.00	1.12	1.12	1.25	1.38	1.38	1.50	1.62	1.75	1.75	2.00

Per ASME B16.47-2017
Series A		Pipe Diameter
Series A		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	34.25	36.50	38.75	41.75	43.75	46.00	48.75	50.75	53.00	55.25	57.25	59.50	61.75	64.00	66.25	68.75	71.00	73.00
	300#	38.25	40.75	43.00	45.25	47.50	50.00	46.00	48.75	50.75	53.25	55.75	57.75	60.25	62.25	65.25	67.25	69.25	71.25
	600#	40.00	42.25	44.50	47.00	49.00	51.75	50.00	52.00	55.25	57.25	59.50	62.75	65.75	67.75	70.00	73.00	75.00	78.50
Bolt Circle Diameter per Class	150#	31.75	34.00	36.00	38.50	40.50	42.75	45.25	47.25	49.50	51.75	53.75	56.00	58.25	60.50	62.75	65.00	67.25	69.25
	300#	34.50	37.00	39.25	41.50	43.50	46.00	43.00	45.50	47.50	49.75	52.00	54.00	56.25	58.25	61.00	63.00	65.00	67.00
	600#	36.00	38.00	40.25	42.50	44.50	47.00	45.75	47.75	50.50	52.50	54.75	57.50	60.00	62.00	64.25	66.75	68.75	71.75
Number of Bolt Holes per Class	150#	24	28	28	28	32	32	32	36	36	40	40	44	44	44	44	48	48	52
	300#	28	28	28	28	28	32	32	32	32	32	28	32	32	32	28	28	32	32
	600#	28	28	28	28	28	28	28	32	28	32	32	32	28	32	32	32	32	28
Bolt Hole Diameter per Class	150#	1.38	1.38	1.38	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.88	1.88	1.88	1.88	1.88	1.88
	300#	1.75	1.75	1.88	2.00	2.00	2.12	1.62	1.75	1.75	1.88	2.00	2.00	2.12	2.12	2.38	2.38	2.38	2.38
	600#	2.00	2.12	2.12	2.38	2.38	2.62	2.38	2.38	2.62	2.62	2.62	2.88	3.12	3.12	3.12	3.38	3.38	3.62
Per ASME B16.47-2017
Series B		Pipe Diameter
Series B		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	30.94	32.94	34.94	37.06	39.56	41.62	44.25	46.25	48.25	50.25	52.81	54.81	56.81	58.81	61.00	63.00	65.94	67.94
	300#	34.12	36.25	39.00	41.50	43.62	46.12	48.12	50.12	52.50	54.50	57.50	59.50	61.50	63.50	65.88	69.50	71.94	73.94
	600#	35.00	37.50	40.25	42.75	45.75	47.75
Bolt Circle Diameter per Class	150#	29.31	31.31	33.31	35.44	37.69	39.75	42.12	44.12	46.12	48.12	50.56	52.56	54.56	56.56	58.75	60.75	63.44	65.44
	300#	31.62	33.75	36.25	38.50	40.62	42.88	44.88	46.88	49.00	51.00	53.75	55.75	57.75	59.75	62.12	65.00	67.44	69.44
	600#	31.75	34.00	36.50	38.75	41.50	43.50
Number of Bolt Holes per Class	150#	36	40	44	48	40	44	40	44	48	52	40	44	48	52	56	60	48	52
	300#	32	36	36	32	36	32	36	40	36	40	36	40	44	48	48	36	40	40
	600#	28	28	28	28	24	28
Bolt Hole Diameter per Class	150#	0.88	0.88	0.88	0.88	1.00	1.00	1.12	1.12	1.12	1.12	1.25	1.25	1.25	1.25	1.25	1.25	1.38	1.38
	300#	1.38	1.38	1.50	1.62	1.62	1.75	1.75	1.75	1.88	1.88	2.00	2.00	2.00	2.00	2.00	2.38	2.38	2.38
	600#	1.75	1.88	2.00	2.12	2.38	2.38

All dimensions are in inches.

Temperature	Minimum Service: -450F (-268C)
	Maximum Service: 500F (260C)
Pressure	Maximum Service: 800 psi (55 bar)
pH	0-14

Typical Physical Properties:
Color		Blue
Compressibility - ASTM F36 M		25-40%
Recovery - ASTM F36 M		30%
Tensile Strength - ASTM F152		2030 psi (14 N/mm^2)
Specific Gravity - ASTM 0792		1.70 g /cm^3
Creep Relaxation - ASTM F38		40%
Sealability - ASTM F37 A		0.12ml/h
Sealability - DIN 3535		<.015 cm^3 / min

1/2 300#/400#/600# 1/16 TEADIT TEALON 1570 FULL FACE GASKET

Technical Data

Product Specification

Governing Standards

Governing StandardsTealon 1570 Full Face Gasket

Service Limits

Service LimitsTealon 1570 Full Face Gasket

Physical Properties

Physical PropertiesTealon 1570 Full Face Gasket

Dimensional Specifications

Dimensional SpecificationsTealon 1570 Full Face Gasket

ASME B16.21	Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47	Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.
