Home > Fasteners > Nuts > Hex Nuts > 18-8 SS Hex Nut > 1 1/4-12 18-8 STAINLESS STEEL HEX NUT

Enlarge

Item #: NFS4125NF00

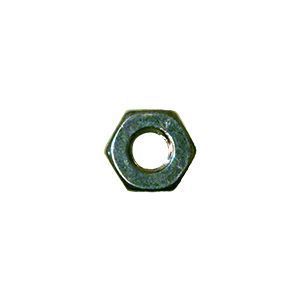

1 1/4-12 18-8 STAINLESS STEEL HEX NUT

$13.7903/EA

Quantity	Price
Quantity	Price
1	$13.7903/ EA
25	$13.01771/ EA
80	$11.473/ EA
500	$8.12078/ EA

Qty

In Stock

Product Specification
Governing Standards
Dimensional Specifications

Dimensional Specifications

Dimensional Specifications18-8 Stainless Steel

Hex nut dimensions

Hex nut dimensions

Per ASME B18.2.2-2015
Nominal Diameter		UNC	UNF	F			G		H
				Width Across Flats			Width Across Corners		Thickness
				Basic	Max	Min	Max	Min	Basic	Max	Min
#0	0.060	80	80	5/32	0.1560	0.1500	0.2210	0.2060	5/32	0.0500	0.0430
#1	0.073	64	72	5/32	0.1560	0.1500	0.2210	0.2060	5/32	0.0500	0.0430
#2	0.086	56	72	3/16	0.1880	0.1800	0.2650	0.2050	3/16	0.0660	0.0570
#3	0.099	48	64	3/16	0.1880	0.1800	0.2650	0.2050	3/16	0.0660	0.0570
#4	0.112	40	48	1/4	0.2500	0.2410	0.2890	0.2750	1/4	0.0980	0.0870
#5	0.125	40	44	5/16	0.3120	0.3020	0.3610	0.3440	5/16	0.1140	0.1020
#6	0.138	32	40	5/16	0.3120	0.3020	0.3610	0.3440	5/16	0.1140	0.1020
#8	0.164	32	36	11/32	0.3440	0.3320	0.3970	1.2540	11/32	0.1300	0.1170
#10	0.190	24	32	3/8	0.3750	0.3620	0.4330	1.4650	3/8	0.1300	0.1170
#12	0.216	24	28	7/16	0.4380	0.4380	0.5050	1.6750	7/16	0.1610	0.1480
1/4	0.2500	20	28	7/16	0.4380	0.4280	0.5050	0.4880	7/32	0.2260	0.2120
5/16	0.3125	18	24	1/2	0.5000	0.4890	0.5770	0.5570	17/64	0.2730	0.2580
3/8	0.3750	16	24	9/16	0.5630	0.5510	0.6500	0.6280	21/64	0.3370	0.3200
7/16	0.4375	14	20	11/16	0.6880	0.6750	0.7940	0.7680	3/8	0.3850	0.3650
1/2	0.5000	13	20	3/4	0.7500	0.7300	0.8660	0.8400	7/16	0.4480	0.4270
9/16	0.5625	12	18	7/8	0.8750	0.8610	1.0100	0.9820	31/64	0.4960	0.4730
5/8	0.6250	11	18	15/16	0.9380	0.9220	1.0830	1.0510	35/64	0.5590	0.5350
3/4	0.7500	10	16	1 1/8	1.1250	1.0880	1.2990	1.2400	41/64	0.6650	0.6170
7/8	0.8750	9	14	1 5/16	1.3120	1.2690	1.5160	1.4470	3/4	0.7760	0.7240
1	1.0000	8	14	1 1/2	1.5000	1.4500	1.7320	1.6530	55/64	0.8870	0.8310
1 1/8	1.1250	7	12	1 11/16	1.6880	1.6310	1.9490	1.8590	31/32	0.9990	0.9390
1 1/4	1.2500	7	12	1 7/8	1.8750	1.8120	2.1650	2.0660	1 1/16	1.0940	1.0300
1 3/8	1.3750	6	12	2 1/16	2.0620	1.9940	2.3820	2.2730	1 11/16	1.2060	1.3800
1 1/2	1.5000	6	12	2 1/4	2.2500	2.1750	2.5980	2.4800	1 9/32	1.3170	1.2450

All dimensions are in inches.
