Home > Fasteners > Washers > Flat Washers > F436 Flat Washer, Teflon > 1 5/8 F436 THRU HARDENED FLAT WASHER, TEFLON

Enlarge

Item #: W436162T-I

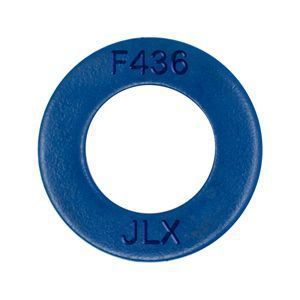

1 5/8 F436 THRU HARDENED FLAT WASHER, TEFLON

$3.753/EA

Quantity	Price
Quantity	Price
1	$3.753/ EA
40	$3.55735/ EA
130	$3.23335/ EA
580	$2.20025/ EA

Qty

In Stock

Product Specification
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsF436

F436 thru hardened flat washer dimensions

Per ASTM F436/F436M-16
Size	Nominal	A	B	C
		Inside Diameter	Outside Diameter	Thickness	Thickness
		Inside Diameter	Outside Diameter	Min	Max
1/2	0.5000	0.5310	1.0630	0.0970	0.1770
5/8	0.6250	0.6880	1.3130	0.1220	0.1770
3/4	0.7500	0.8130	1.4680	0.1220	0.1770
7/8	0.8750	0.9380	1.7500	0.1360	0.1770
1	1.0000	1.0630	2.0000	0.1360	0.1770
1 1/8	1.1250	1.1880	2.2500	0.1360	0.1770
1 1/4	1.2500	1.3750	2.5000	0.1360	0.1770
1 3/8	1.3750	1.5000	2.7500	0.1360	0.1770
1 1/2	1.5000	1.6250	3.0000	0.1360	0.1770
1 5/8	1.6250	1.7700	3.2500	0.1780	0.2800
1 3/4	1.7500	1.8750	3.3750	0.1780	0.2800
1 7/8	1.8750	2.0000	3.5000	0.1780	0.2800
2	2.0000	2.1250	3.7500	0.1780	0.2800
2 1/4	2.2500	2.3750	4.0000	0.2400	0.3400
2 1/2	2.5000	2.6250	4.5000	0.2400	0.3400
2 3/4	2.7500	2.8750	5.0000	0.2400	0.3400
3	3.0000	3.1250	5.5000	0.2400	0.3400

All dimensions are in inches.
