Fig B261 Extension Riser Clamp
>

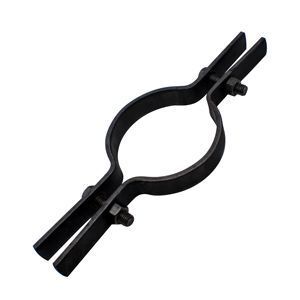

2'' FIGURE B261 EXTENSION RISER CLAMP
Enlarge
2'' FIGURE B261 EXTENSION RISER CLAMP
Item #:
FIGB2610200
2'' FIGURE B261 EXTENSION RISER CLAMP
$7.88/EA
Quantity
Price
Quantity
Price
1
$7.88/ EA
40
$7.486/ EA
70
$6.698/ EA
140
$5.516/ EA
Qty
3-5 Working Days
Add To Cart
+ Add To Favorites
Technical Data
Product Specification
Product Details
Dimensions & Loads
Product Specification
Figure
Figure 261
Pipe Diameter
2
Load Rating
300
Material
Steel
Finish
Black
Origin
Unrestricted Origin
Weight
1.3,
Product Details
Product Details
Figure 261
MATERIAL
Carbon Steel
MAX TEMP
650F (343C)
COMPLIANCE
Federal Specification A-A-1192A (Type 8), ANSI/MSS SP-58 (Type 8)
NOTE
This product is not designed to be supported with hanger rods. Install using the maximum recommended torque value per industry standards. Do not overtighten the bolts.
Dimensions & Loads
Dimensions & Loads
Figure 261
PIPE SIZE
MAX LOAD
A
B
WEIGHT EA
1/2
220
9
2 1/2
1.00
3/4
220
9 3/8
2 7/8
1.08
1
220
9 5/8
3 1/8
1.08
1 1/4
250
10
3 1/2
1.86
1 1/2
250
10 1/4
3 3/4
1.22
2
300
10 3/4
4 1/4
1.30
2 1/2
400
11 1/4
4 3/4
1.74
3
500
11 1/2
5 1/2
1.98
3 1/2
600
12 1/2
6 1/2
2.14
4
750
12 7/8
7 1/8
2.28
5
1500
13 3/4
8
3.60
6
1600
14 3/4
8 3/4
3.68
8
2500
18 1/2
12 1/2
7.26
10
2500
20 3/4
14 3/4
11.00
12
2700
22 3/4
16 3/4
15.94
14
2700
24
18
17.36
16
2900
26 1/2
20 1/2
29.68
18
2900
28
23 1/2
31.64
20
2900
30
25
34.84
24
2900
34
29
50.00
30
2900
40
35
63.00
All dimensions are in inches.
