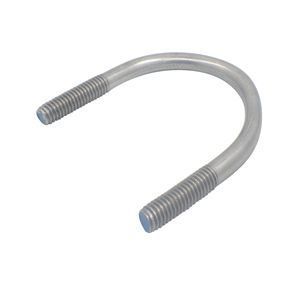

304 Stainless Steel U-Bolt

U-bolts are bolts bent in the shape of a "U" with machine threads on both ends that nuts can be threaded onto in order to fasten the u-bolt. Since u-bolts have primarily been used to support and secure pipe, u-bolts sizes are call out by the size of the pipe. In addition to pipe, u-bolts have a wide range of uses such as securing tubing, roundbar, wood or steel posts, and can be embedded into concrete as anchor bolts. U-bolts are designed to be inserted into pre-drilled or punched holes. Made from from austenitic 304 stainless steel. Stainless steel fasteners are commonly used in applications that require general atmospheric corrosion resistance, such as chemical and food processing equipment. Stainless steel has a higher corrosion resistance than carbon steel.

Dimensional SpecificationsU-Bolt

U-Bolt dimensions
Pipe Size Diameter Threads
per Inch
Standard U-Bolts Long Tangent U-Bolts
Number Inside
Length
Inside
Width
Thread
Length
Inside
Length
Inside
Width
Thread
Length
D L C T L C T
1/4 1/4 20 1 1 1/4 9/16 3/4
3/8 1/4 20 2 1 1/4 3/4 5/8
1/4 20 3 2 1/4 3/4 1 1/2
1/2 1/4 20 4 1 3/4 1 1 3 1/4 15/16 2 3/8
5/16 18 10 2 3/16 1 1 3/8
3/8 16 17 2 1/4 1 1 1/4 3 1/4 15/16 2 3/8
3/4 1/4 20 5 2 1 1/8 1 3 5/16 1 1/8 2 3/8
1/4 20 6 2 1/4 1 1/4 1 1/4
5/16 18 101 2 3/16 1 1/8 1
3/8 16 18 2 1/4 1 1/4 1 1/4 3 5/16 1 1/8 2 3/8
1 1/4 20 7 2 3/4 1 1/2 1 3/8 3 7/16 1 3/8 2 3/8
5/16 18 11 2 3/16 1 3/8 1
5/16 18 12 2 3/16 1 1/2 1
3/8 16 19 2 1/2 1 1/2 1 1/4 3 7/16 1 3/8 2 3/8
1 1/4 1/4 20 8 3 1 3/4 1 3/8
5/16 18 13 2 11/16 1 3/4 1 1/8
3/8 16 20 2 3/4 1 3/4 1 1/8 3 3/4 1 11/16 2 1/2
1 1/2 1/4 20 9 3 1/4 2 1 3/8
5/16 18 14 2 11/16 2 1
3/8 16 21 2 5/8 2 1 1/4 4 2 2 1/2
2 1/4 20 902 3 3/16 2 1/2 1
5/16 18 15 3 3/16 2 1/2 1
3/8 16 22 3 1/8 2 1/2 1 1/4 4 1/2 2 7/16 2 1/2
2 1/2 5/16 18 16 3 11/16 3 1
3/8 16 23 3 5/8 3 1 1/4
1/2 13 25 4 1/2 3 1 5/8 5 1/4 2 15/16 3
3 3/8 16 24 4 1/8 3 1/2 1 1/4
1/2 13 26 5 3 1/2 1 1/2 5 13/16 3 9/16 3
3 1/2 1/2 13 27 5 1/2 4 1 1/2 6 5/16 4 1/16 3
4 1/2 13 28 6 4 1/2 1 1/2 6 13/16 4 9/16 3
5 1/2 13 29 7 1/4 5 5/8 2 7 13/16 5 5/8 3
6 1/2 13 30 8 3/8 6 3/4 2 9 1/2 6 3/4 3 3/4
5/8 11   8 3/8 6 3/4 2 9 1/2 6 3/4 3 3/4
8 1/2 13 31 10 3/8 8 3/4 2 11 1/2 8 3/4 3 3/4
5/8 11   10 3/8 8 3/4 2 11 1/2 8 3/4 3 3/4
10 3/4 10         13 13/16 10 7/8 4
12 7/8 9         16 1/16 12 7/8 4 1/8
14 7/8 9         17 5/16 14 1/8 4 1/8
16 7/8 9         19 5/16 16 1/8 4 1/8
18 1 8         21 11/16 18 1/8 4 3/4
20 1 8         23 11/16 20 1/8 4 3/4
24 1 8         27 11/16 24 1/8 4 3/4
28 1 8         31 11/16 28 1/8 4 3/4
30 1 8         33 11/16 30 1/8 4 3/4
36 1 8         39 11/16 36 1/8 4 3/4
  1. All dimensions are in inches.
304 Stainless Steel U-Bolt
View
Thread Diameter Thread Pitch Pipe Diameter Size Item # Availability Price Quantity UOM
1/4 20 1/4 1 UBS40250025 3-5 Working Days $1.25168/EA EA
1/4 20 3/8 2 UBS40250037 In Stock $1.48898/EA EA
1/4 20 1/2 4 UBS40250050 In Stock $1.86441/EA EA
1/4 20 3/4 6 UBS40250075 In Stock $1.93914/EA EA
1/4 20 1 7 UBS40250100 In Stock $2.12072/EA EA
1/4 20 1 1/4 8 UBS40250125 3-5 Working Days $1.91225/EA EA
1/4 20 1 1/2 9 UBS40250150 In Stock $2.28964/EA EA
1/4 20 2 902 UBS40250200 In Stock $2.68476/EA EA
5/16 18 3/4 101 UBS40310075 In Stock $3.78132/EA EA
5/16 18 1 12 UBS40310100 In Stock $2.36511/EA EA
5/16 18 1 1/4 13 UBS40310125 3-5 Working Days $4.76189/EA EA
5/16 18 1 1/2 14 UBS40310150 In Stock $2.53729/EA EA
5/16 18 2 15 UBS40310200 In Stock $2.98217/EA EA
5/16 18 2 1/2 16 UBS40310250 In Stock $4.03555/EA EA
3/8 16 1/2 17 UBS40370050 3-5 Working Days $5.74732/EA EA
3/8 16 3/4 18 UBS40370075 In Stock $3.1556/EA EA
3/8 16 1 19 UBS40370100 In Stock $3.3559/EA EA
3/8 16 1 1/4 20 UBS40370125 In Stock $3.55342/EA EA
3/8 16 1 1/2 21 UBS40370150 In Stock $3.54858/EA EA
3/8 16 2 22 UBS40370200 In Stock $4.50936/EA EA
3/8 16 2 1/2 23 UBS40370250 In Stock $4.60329/EA EA
3/8 16 3 24 UBS40370300 In Stock $5.43685/EA EA
3/8 16 4 - UBS40370400 In Stock $9.27858/EA EA
3/8 16 6 - UBS40370600 In Stock $13.45065/EA EA
1/2 13 2 22 UBS40500200 3-5 Working Days EA
1/2 13 2 1/2 25 UBS40500250 In Stock $11.28232/EA EA
1/2 13 3 26 UBS40500300 In Stock $11.28028/EA EA
1/2 13 3 1/2 27 UBS40500350 3-5 Working Days $10.46112/EA EA
1/2 13 4 28 UBS40500400 In Stock $12.53211/EA EA
1/2 13 5 29 UBS40500500 In Stock $11.89212/EA EA
1/2 13 6 30 UBS40500600 In Stock $17.93233/EA EA
5/8 11 6 - UBS40620600 In Stock $49.50055/EA EA
