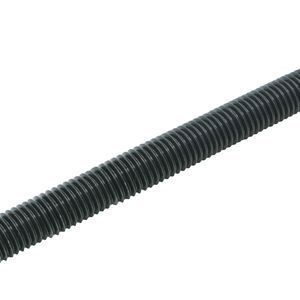

B16 All Thread Rod

ASTM A193 Grade B16 all thread rods are high strength fasteners manufactured from heat treated Chromium-Molybdenum-Vanadium steel, quenched and tempered. Added Vanadium allows for operating temperatures higher than that of B7 all thread rod. Dimensional specifications are governed by ASME B18.31.3. Inch series fasteners meeting ASTM A193 Grade B16 specifications are typically used in the power and petrochemical industries on boilers, turbines, and other pressurized equipment with elevated temperatures. ASTM A193 covers the requirements for high temperature and high pressure bolting. A193 B16 all thread rod having diameters above 1" are most common 8UN (8 threads per inch).

Technical Data

Governing StandardsGrade B16

ASTM A193	Covers alloy and stainless steel bolting materials and bolting components for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
ASME B18.31.3	Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

Mechanical PropertiesGrade B16

Alloy Steel, Quenched & Tempered			Per ASTM A193/A193M-16
Diameter	Tempering Temperature	Tensile Strength	Yield Strength, 0.2% offset	Elongation in 4D	Reduction of Area	Hardness
Diameter	Min	Min ksi	Min ksi	Min %	Min %	Max
2 1/2" and under	1200F	125	105	18	50	321 HBW or 35 HRC
over 2 1/2 to 4"	1200F	110	95	17	45	321 HBW or 35 HRC
over 4 to 8"	1200F	100	85	16	45	321 HBW or 35 HRC

Chemical PropertiesGrade B16

Per ASTM A193/A193M-16
Grade	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Chromium	Molybdenum	Vanadium	Aluminum
Grade	% by weight	% by weight	% by weight	% by weight	% by weight	% by weight	% by weight	% by weight	% by weight
B16	0.36-0.47	0.45-0.70	0.035 max	0.040 max	0.15-0.35	0.80-1.15	0.50-0.65	0.25-0.35	0.015 max (1)

1. Total of soluble and insoluble.

B16 All Thread Rod

of 1

Sort By

Show

View

Diameter	Thread Pitch	Length	Item #	Availability	Price	Quantity
3/8	16	12 FT	RB160370000	5-7 Working Days ARO	$6.89662/FT	FT	FT
1/2	13	12 FT	RB160500000	In Stock	$4.88444/FT	FT	FT
5/8	11	12 FT	RB160620000	In Stock	$4.67897/FT	FT	FT
3/4	10	12 FT	RB160750000	In Stock	$5.29662/FT	FT	FT
7/8	9	12 FT	RB160870000	In Stock	$9.93167/FT	FT	FT
1	8	12 FT	RB161000000	In Stock	$10.60605/FT	FT	FT
1 1/8	8	12 FT	RB161120000	In Stock	$11.84244/FT	FT	FT
1 1/4	8	12 FT	RB161250000	In Stock	$14.64377/FT	FT	FT
1 3/8	8	12 FT	RB161370000	In Stock	$18.17899/FT	FT	FT
1 1/2	8	12 FT	RB161500000	In Stock	$21.19871/FT	FT	FT
1 5/8	8	12 FT	RB161620000	In Stock	$27.82126/FT	FT	FT
1 3/4	8	12 FT	RB161750000	In Stock	$33.949/FT	FT	FT
1 7/8	8	12 FT	RB161870000	In Stock	$41.29516/FT	FT	FT
2	8	12 FT	RB162000000	In Stock	$41.94969/FT	FT	FT
2 1/4	8	12 FT	RB162250000	5-7 Working Days ARO	$66.63249/FT	FT	FT
2 1/2	8	12 FT	RB162500000	In Stock	$49.77448/FT	FT	FT
2 3/4	8	12 FT	RB162750000	In Stock	$91.93397/FT	FT	FT
